Micrometer Stage, Positioning Micrometer Stage, Motorized Positioning Micrometer Stage J02DX100

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Beijing JY Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

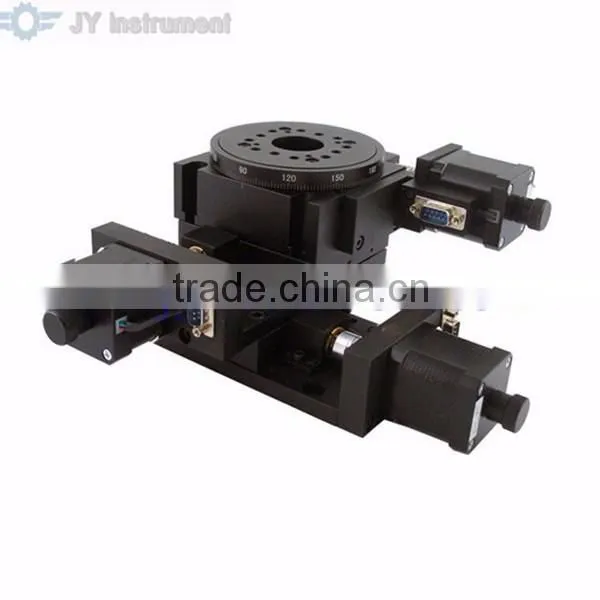

Mini Motorized Rotation Stage (diameter 100mm with 30mm through hole)

micrometer stage, positioning micrometer stage, motorized positioning micrometer stage

Feature

*Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily

*High precision Worm gear design for high accuracy, loading and long working time.

*Forward and reverse rotate are possible

*The stage could use in vertical and assemble with other stages

*100mm diameter dimension and with dia 30mm through hole for add rotating encode possible

*The regular stage without limit switch and home position, but can add according to requirements

Mini Motorized Linear Moving Stages

Features

*Regular type set with small 1.8°2-phase stepper motor

*Low-profile, high-accuracy for limited space use

*Crossed-roller bearing requires the precise movement

*Original position and limit switches are at both ends can supply the precision positioning and protection.

*Applies to use in single axis or assemble into multi-axis stages.

*RS232 interface for connecting motion controller easily

Model Number	J02DP15	J02DP30	J02DP50
Travel Range	15mm	30mm	50mm
Bearing	Lead Screw (0.5mm of leading)	Lead Screw (1mm of leading)
Travel guide	Crossed Roller Bearing
Motor	1.8° 2-phase STP-42D3016 stepper motor (servo motor optional)
Material- Finish	Aluminum Alloy Black- Anodized
Max Loading	15kg horizontal/ 3kg vertical	15kg horizontal/ 3kg vertical	20kg horizontal/ 3kg vertical
Weight	1.3kg	1.6kg	1.8kg
Resolution	2.5um/ Pulse, non-ms driver 0.125um/ Pulse, 20 non-ms driver	5um/ Pulse, non-ms driver 0.25um/ Pulse, 20 non-ms driver
Max Speed	5mm/ sec	10mm/ sec
Repeatability	3um	5um
Absolute Accuracy	8um
Straightness	8um
Degree of Parallelization	15um
Pitching	25’’
Yawing	20’’
Backlash	5um
Optional Accessories	Servo Motor, Motion Controller
