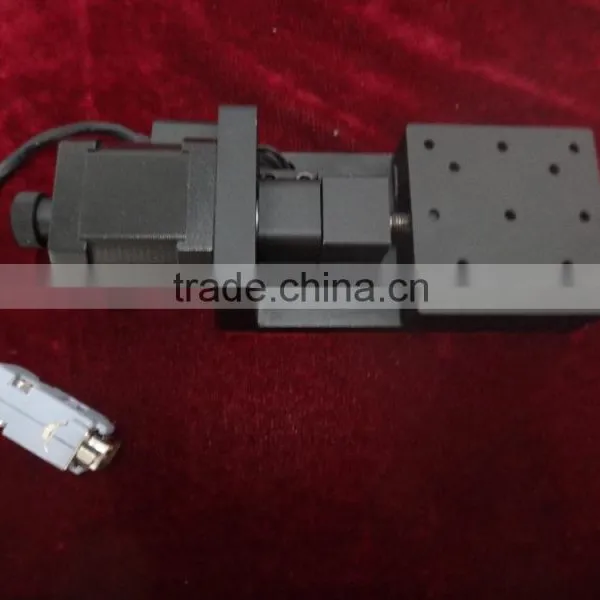

Mini Motorized linear motion, miniature linear stage, motorized dovetail slide

Features

*Regular type set with small 1.8°2-phase stepper motor

*Low-profile, high-accuracy for limited space use

*Crossed-roller bearing requires the precise movement

*Original position and limit switches are at both ends can supply the precision positioning and protection.

*Applies to use in single axis or assemble into multi-axis stages.

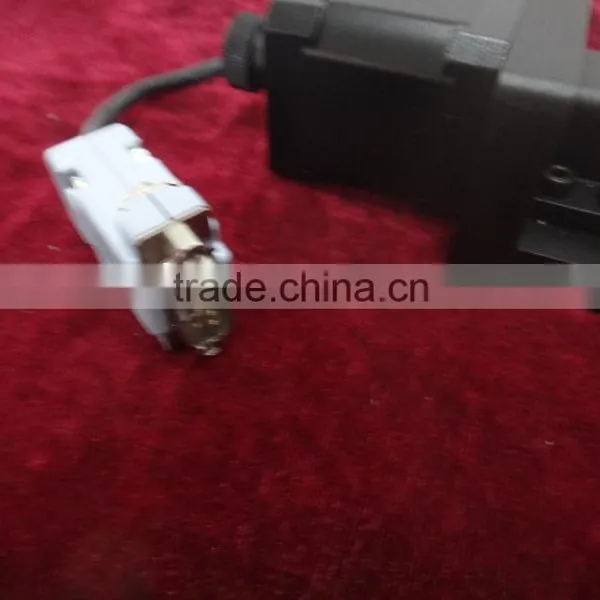

*RS232 interface for connecting motion controller easily

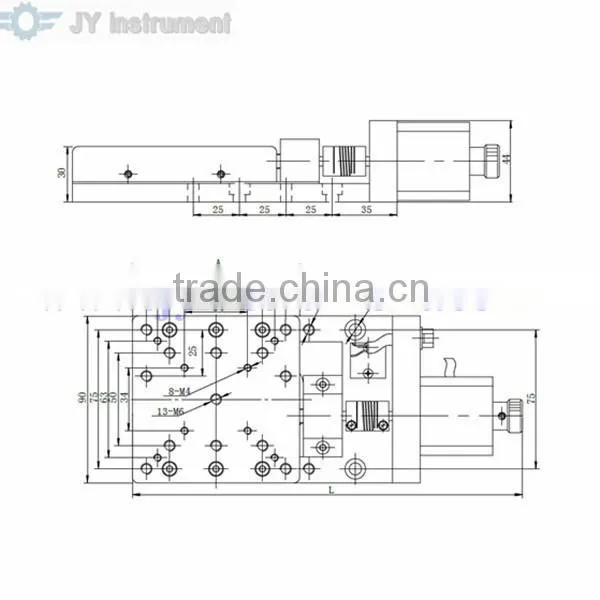

Model Number	J02DP15	J02DP30	J02DP50
Travel Range	15mm	30mm	50mm
Bearing	Lead Screw (0.5mm of leading)	Lead Screw (1mm of leading)
Travel guide	Crossed Roller Bearing
Motor	1.8° 2-phase STP-42D3016 stepper motor (servo motor optional)
Material- Finish	Aluminum Alloy Black- Anodized
Max Loading	15kg horizontal/ 3kg vertical	15kg horizontal/ 3kg vertical	20kg horizontal/ 3kg vertical
Weight	1.3kg	1.6kg	1.8kg
Resolution	2.5um/ Pulse, non-ms driver 0.125um/ Pulse, 20 non-ms driver	5um/ Pulse, non-ms driver 0.25um/ Pulse, 20 non-ms driver
Max Speed	5mm/ sec	10mm/ sec
Repeatability	3um	5um
Absolute Accuracy	8um
Straightness	8um
Degree of Parallelization	15um
Pitching	25’’
Yawing	20’’
Backlash	5um
Optional Accessories	Servo Motor, Motion Controller
