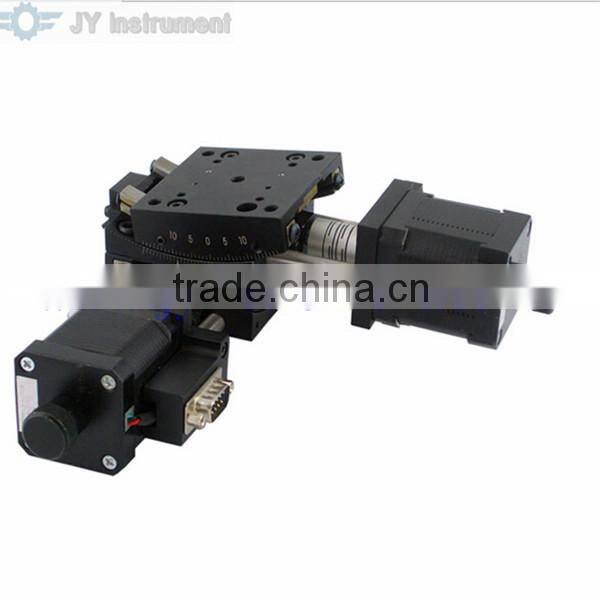

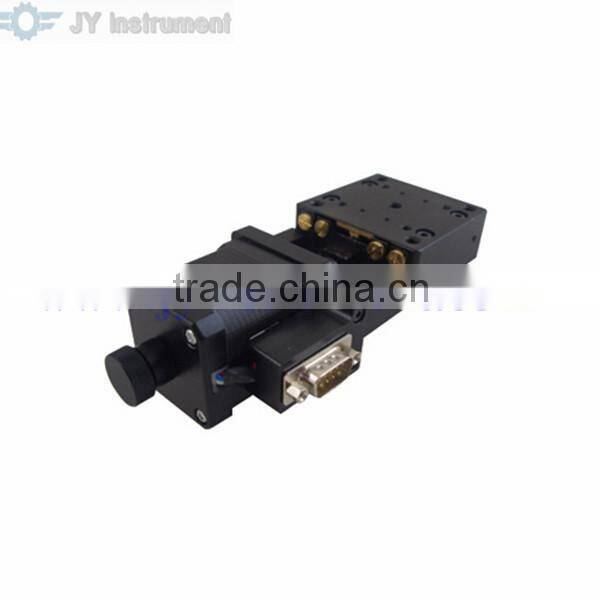

Mini Motorized goniometers, motorized goniometer stage, goniometer Z stage
Features:
*Regular stage set with stepper motor and RS232 interface, can connect with motion controller convenient.
*Worm gear structure ensure the stage with high loading and accuracy
*The mounting holes both on the top and bottom of stage which can combine with other stage easily
*The stage design with the same rotation centers when it use together with 01DJ10
*Both of the two ends have limit switches and can change the motor into servo or redesign
Model Number |
J02DJ15 |
Angle Range |
+/-15° |
Dimension |
65x65mm |
Transmission Ratio |
252:1 |
Height of Rotation Center |
50mm+/-0.2mm |
Drive |
Worm Gear |
Guide |
Cross-roller Guide |
Stepper Motor(1.8°) |
SST42D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
5kg |
Weight |
0.75kg |
Resolution |
0.005°(non-MS Driver) 1” (20-MS Driver) |
Accuracy of Rotation Center |
0.03mm |
Speed |
7°/sec |
Repeatability |
+/-4” |
Accuracy |
+/-9” |
Backlash |
+/-4” |
