Manual Rotary Stage, Rotation Stage, Rotary Table/60mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2012
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manual Revolving Stage, Manual Rotary Positioning System, Manual Rotation Mounts/ 90mmNegotiableMOQ: 1 -
Manual Rotary Positioners, Manual Rotation Table, Manual Precision Rotary StageNegotiableMOQ: 1
-
Manual Rotary Motion, Rotation Stage, Precision Rotary StageNegotiableMOQ: 1
-
Manual Rotation Mounts, Manual Rotary Positioning Stage, Manual Tilt DeviceNegotiableMOQ: 1
-
Manual Rotary Positioning Actuator, Rotary MeasurNegotiableMOQ: 1

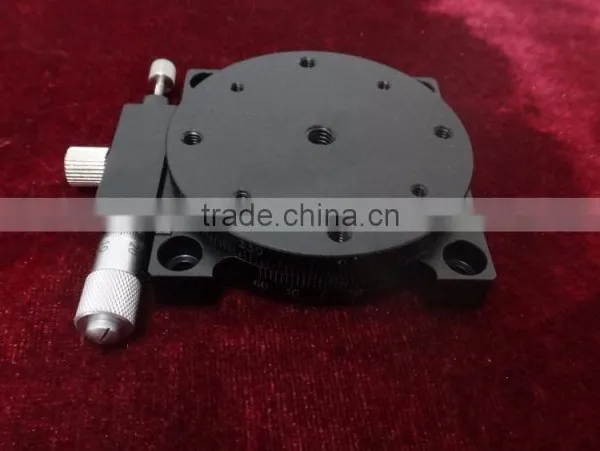

Manual rotary stage, rotation stage, rotary table/60mm
Production Feature:
*The table top can rotate in 360°
*The driver set comes with lock
*The stage with regular holes both on top and bottom for connecting the other stages
Model Number |
J03SX60 |
J03SX90 |
J03SX125 |
Diameter of Table |
60mm |
90mm |
125mm |
Drive |
Micrometer head |
||
Reading Mode |
Vernier Reading |
||
Min Score |
10’ |
5’ |
5’ |
Adjustment range |
Rough 360° fine +/-5° |
||
Loading |
3kg |
3kg |
15kg |
Weight |
0.2kg |
0.5kg |
0.96kg |
