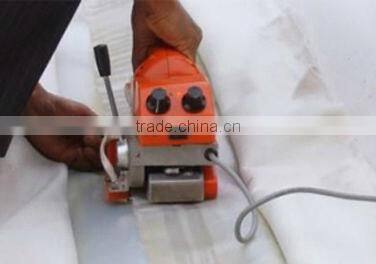

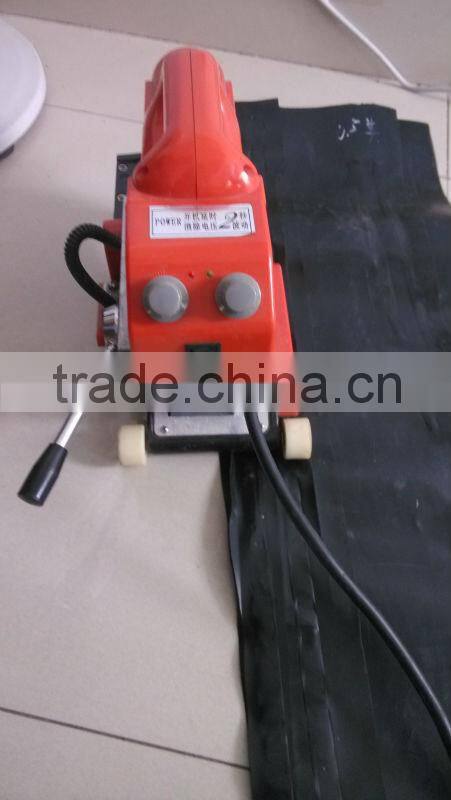

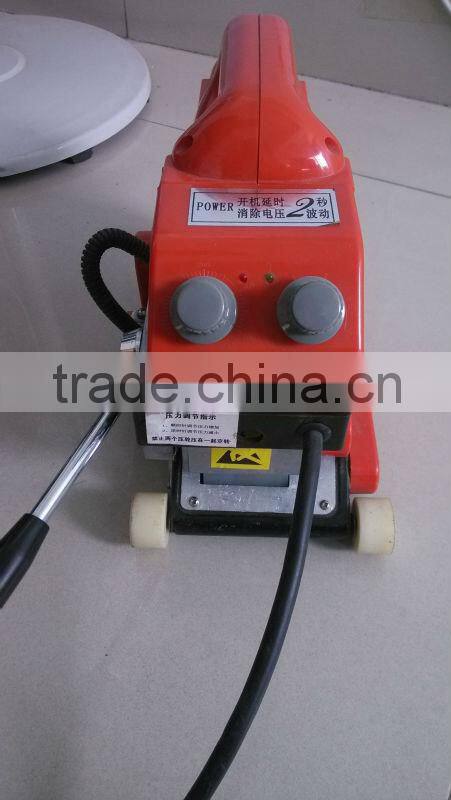

hdpe butt fusion welding machine :
Product description:

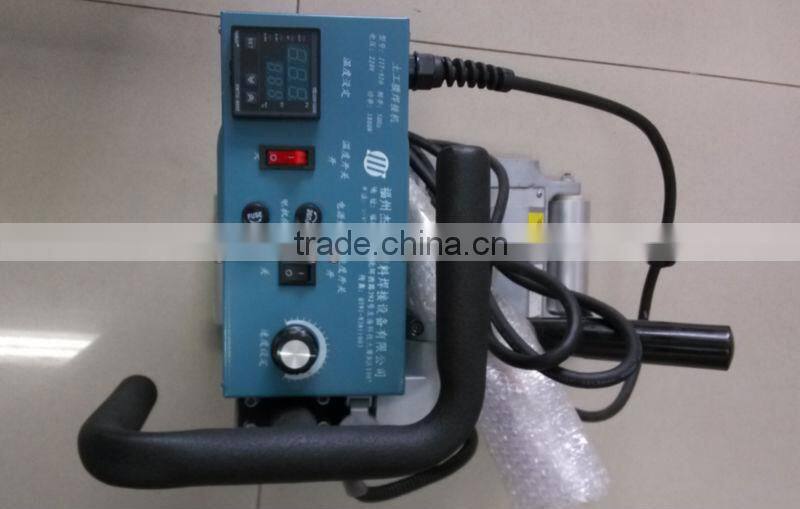

The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.

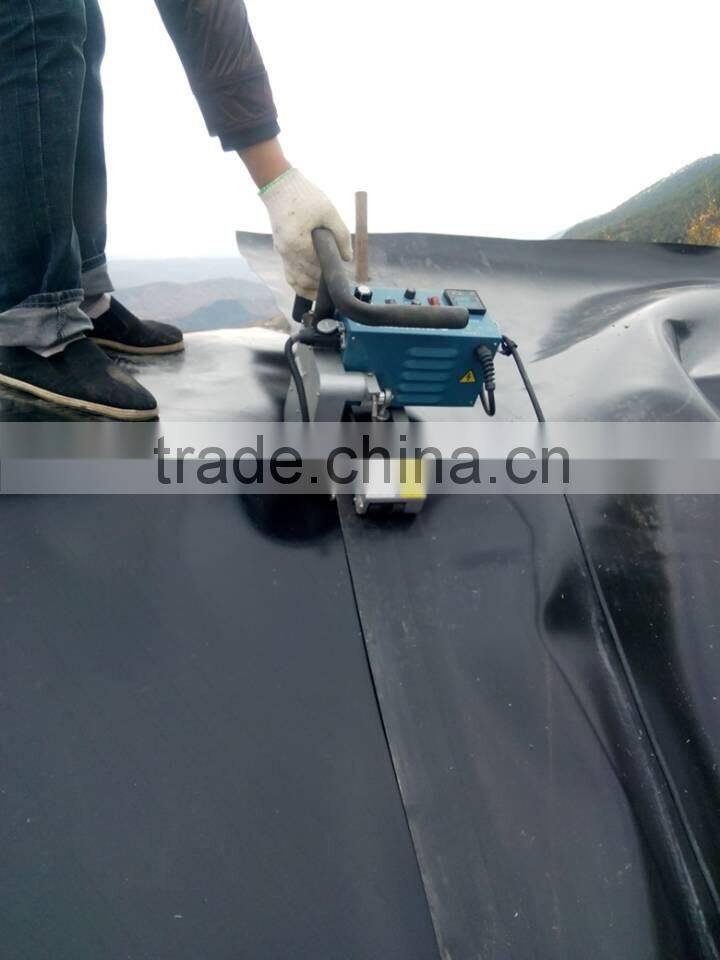

It can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and the like.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on
Voltage (V): 220V
Frequency (Hz): 50Hz
Power (P): 1800W
Welding speed (V): 0.5-5m/min
Heating temperature (T): 0-450°C
Thickness of material to be welded: 1mm-3mm
Overlap width: 120mm
Welding width: 14mm×2, interior cavity 16mm
Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine
Weight: 10.5Kg
