Hot Sell nf Moulded Case Circuit Breaker

Hot Sell nf Moulded Case Circuit Breaker thumbnail-1
Hot Sell nf Moulded Case Circuit Breaker photo-1
US$ 10 - 100 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GASIM
Model Number:
NF
Contact Supplier Request Quote Chat Now
Shanghai Gasim Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name GASIM
Model Number NF
Type Other, Moulded Case, NF-CS,NF-SS,NF-CP,NF-CW
Poles Number Other, 2,3,4

Specifications

nf moulded case circuit breaker
rated current:3-1250A
pole number:2,3,4
frequency:50/60Hz


Product Description

nf moulded case circuit breaker

NF series moulded case circuit breaker is a kind of economic breaker,has the features as following,such as steady and reliable property,reasonable structure,beautiful style,small volume,etc.This breaker applies to the circuit with AC50/60Hz,rated insulation

voltage 660V,max.rated current 1250A as on-off operation,and take effect, it also can be used as unfrequent conversion of line and unfrequency.

Specifications

Type Pole number(P) Rated current(A) Rated current of frame(A) Rated ultimate breaking capacity(KA)
NF30-CS 3

3,5,10,15,20,30

 30 1.5
NF50-CS 2,3

10,15,20,30,40,

50

 50 5/10
NF60-CS 3 60 60 5/10
NF100-CS 2,3 60,70,100 100 18/25
NF250-CS 3

125,150,175,200

225,250

 250 18/35
NF400-CS 3 250,300,350,400 400 25/50
NF630-CS 3 500,600,630 630 35
NF800-CS 3 600,700,800 800 35
NF1250-CS 3 800,1000,1200,1250 1250 85
Type Pole number Rated current(A) Breaking capacity(KA)
AC(P1/P2)
240 380 415 500 600 660
NF30-SS 2 3,5,10,15,20,30 5/5 5/2.5 2.5/1.5 2.5/1.0 - -
3
NF50-SS 3 10,20,30,40,50 5/10 10/7.5 7.5/5 7.5/5 2.5/1.5 -
NF60-SS 3 10,20,30,40,50,60 5/10 10/7.5 7.5/5 7.5/5 2.5/1.5 -
NF100-SS 3 60,75,100 50/42 30/20 7.5/5 15/10 10/5 5/2.5
4
NF250-SS 3 125,150,175,200,225,250 50/42 30/22 25/15 18/15 15/10 5/2.5
4
NF400-SS 3 250,300,350,400 85/60 50/35 25/20 35/25 25/18 15/10
4
NF630-SS 3 500,600,630 85/60 50/35 50/30 35/25 25/18 15/10
4
NF800-SS 3 600,700,800 85/60 50/35 50/30 35/25 25/18 15/10
4
Type   Pole number   Rated current(A)   (P1/P2)Ica/Ics Breaking capacity(KA)
 230 400  440  500

NF50-CP 3 5,10,15,20,30,40,50 5/2  5/2  2.5/1 2.5/1
NF60-CP 3 60 5/2  5/2  2.5/1  2.5/1
NF100-CP 3 60,75,100 25/13  10/5  10/5  7/4
NF250-CP 3 125,150,175,200,225,250 30/15  18/9  15/8  10/5
NF400-CP 3 250,300,350,400 50/25  36/18  25/13  15/8
Type Pole number Rated current(A) Circuit breaking capacity(KA)
AC(P1/P2)
240 380 415 500 600 660
NF30-CW 2 3,5,10,15,20,30 5/5 5/2.5 2.5/1.5 2.5/1.0 - -
3
NF50-CW 3 10,20,30,40,50 5/10 10/7.5 7.5/5 7.5/5 2.5/1.5 -
NF60-CW 3 10,20,30,40,50,60 5/10 10/7.5 7.5/5 7.5/5 2.5/1.5 -
NF100-CW 3 60,75,100 50/42 30/20 7.5/5 15/10 10/5 5/2.5
4
NF250-CW 3 125,150,175,200,225,250 50/42 30/22 25/15 18/15 15/10 5/2.5
4
NF400-CW 3 250,300,350,400 85/60 50/35 25/20 35/25 25/18 15/10
4
NF630-CW 3 500,600,630 85/60 50/35 50/30 35/25 25/18 15/10
4
NF800-CW 3 600,700,800 85/60 50/35 50/30 35/25 25/18 15/10
4

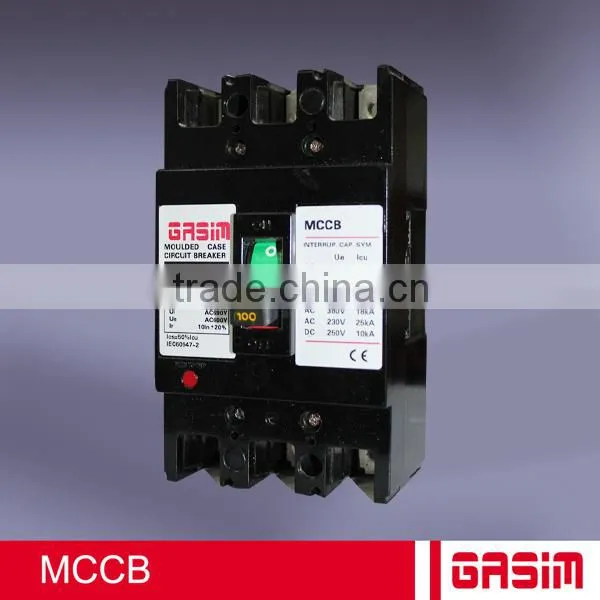

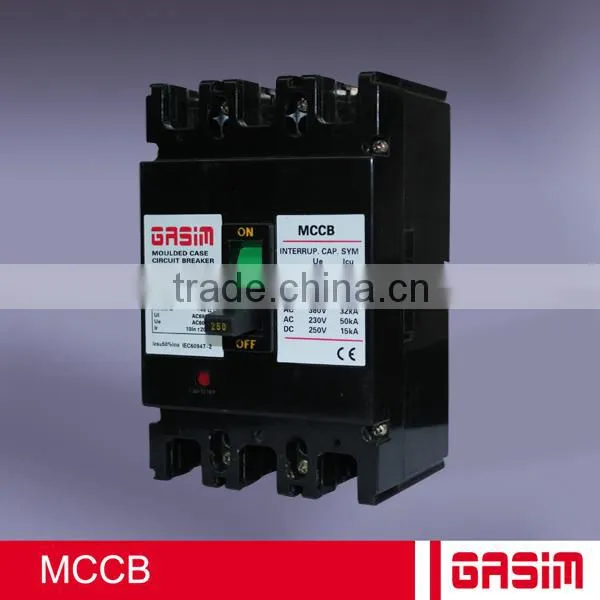

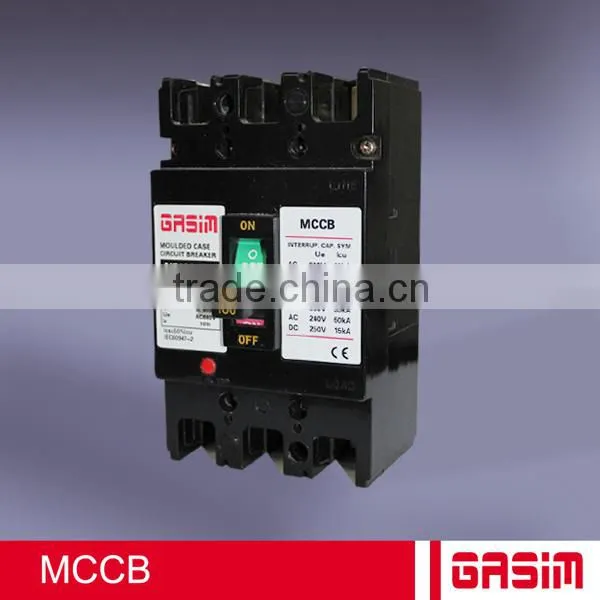

Product show

hot sell nf moulded case circuit breaker

hot sell nf moulded case circuit breaker

hot sell nf moulded case circuit breaker

hot sell nf moulded case circuit breaker

hot sell nf moulded case circuit breaker


Packaging & Shipping

   standard export packing for  nf moulded case circuit breaker

hot sell nf moulded case circuit breaker




Our Services

(1)Warranty   ( 24 months warranty  )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.

 (2)Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most

(3)Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

 2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China


Company Information

we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and the most competitive products .

Factory picture

hot sell nf moulded case circuit breaker

Our markets

North America No3 Rated of buyer 12.5%
South America No4 Rated of buyer  7.5%
Europe No2 Rated of buyer  19.2%
Asia No1 Rated of buyer  35.5%
Africa No5 Rated of buyer  3.24%




FAQ

Certification :



Certified Picture  Certification Name Certified By Product Name & Model No.
hot sell nf moulded case circuit breaker ISO9001:2000 EACC, ANAB Scope:  Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others  .
 hot sell nf moulded case circuit breaker

CE



EPRE

  Mini Circuit Breake&GSB6-63
 hot sell nf moulded case circuit breaker  ETL  ITS  Mini Circuit Breaker&GSL7-63
hot sell nf moulded case circuit breaker GS TUV PIR CEILING LAMP&GSL3002B
hot sell nf moulded case circuit breaker SAA SAA Mini Circuit Breaker &N-7B
hot sell nf moulded case circuit breaker CE EPRE STANDALOE SENSOR&GSA001
