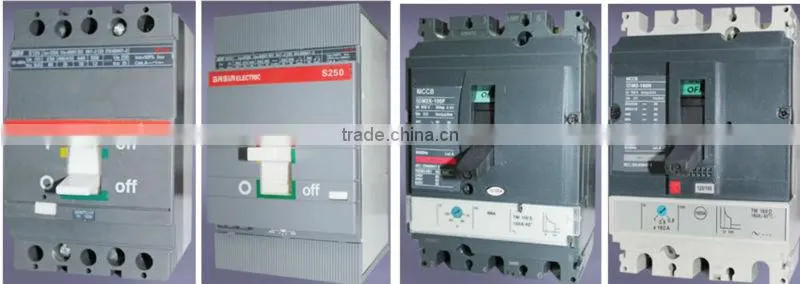

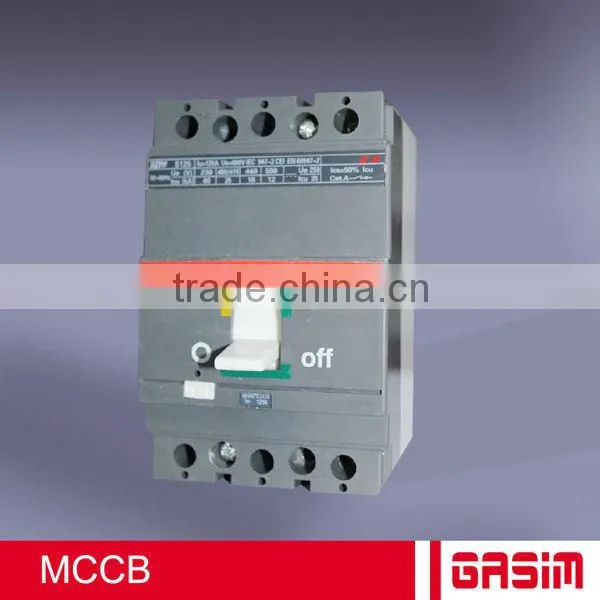

4P Mccb Moulded Case Circuit Breaker

Name: 4P Mccb Moulded Case Circuit Breaker
Brand: GASIM
SKU: 101642253
Availability: InStock

US$ 5 - 100 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

GASIM

Model Number:

GSM2-S250

Shanghai Gasim Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name GASIM

Model Number GSM2-S250

Type Moulded Case

Specifications

4P mccb
1.rated insulation voltage is 800V
2.rated working voltage is 690V
3.diferent high breaking ca

4P mccb Specificaitions

This mini circuit breaker is in accordance with these standards as follows:

IEC60947 and GB14048.1-206 General
IEC60947 and GB14048.2-2008 Low voltage breakers
IEC60947-4-1 and GB14048.4 Electromechnical contractors and motor starters
IEC60947-5-1 and GB14048.5 Electromechnical control circuit electrical equipments

Technical parameter

Products Name		GASIM Moulded case circuit breaker (MCCB)
Advantages		compact , small size , high short-circuit breaking capacity ,no flashover
Suitable AC		50HZ
Rated insulation Voltage		750V
Rated working voltage		690V or below
Rated Current		25A~630A
Standard		IEC60947-1,GB/T-14048.1,IEC6.947-2 ,GB/T-14048.2,IEC6.9474,GB/T14047.4,IEC60947-5,GB/T14048.5
Breaking capacity rating		N, H, L
Pole No.		2P~4P
Warranty		18 months
Release Type		Alarm contact ,instantancous relaese , double release
Certificates		CE,CCC,ISO9001
Quality Guarantee		1 Year

2 . Catalogue

Model	Inm (A)	In (A)	Ue (V)	Ui (V)	Icu (KA) AC380V	Ics (%Icu)	Overall dimension			Installation dimension			Operating Performance (times)
							L	W 3P/4P	H	A	B	Φd	Power-on	Power-off
GSM9(NS)-100N	100	25,40, 50, 63,80, 100	690	750	25	75%	161	105/140	86	35	125	2-Φ6	1500	8500
GSM9 (NS)-100H					70	75%
GSM9 (NS)-100L					150	75%
GSM9 (NS)-160N	160	125, 160	690	750	36	75%	161	105/140	86	35	125	2-Φ6	1000	7000
GSM9 (NS)-160H					70	75%
GSM9 (NS)-160L					150	75%
GSM9 (NS)-250N	250	200, 225, 250	690	750	36	75%	161	105/140	86	35	125	2-Φ6	1000	7000
GSM9 (NS)-250H					70	75%
GSM9 (NS)-250L					150	75%
GSM9 (NS)-400N	400	350, 400	690	750	45	75%	255	140/185	110	45	200	4-Φ6	1000	4000
GSM9 (NS)-400H					70	75%
GSM9 (NS)-400L					150	75%
GSM9 (NS)-630N	630	500, 600	690	750	45	75%	255	140/185	110	45	200	4-Φ6	1000	4000
GSM9 (NS)-630H					70	75%
GSM9 (NS)-630L					150	75%
