Specifications
Model No. : RV-430Brand : Carknight
Type : auto electronics
Certification : CE/FCC

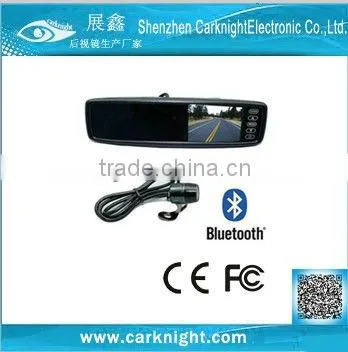

Product Description
This product can automatically switch to the back sight when you reverse,which
can well help you protect your car from costly collision. It can be connected to a car DVD player too.
When the monitor is powered off, the mirror functions just like a normal rear view
mirror with anti-glare function
rear view mirror:
Camera:
Features:
1. Screen Size: 4.3 inch
2. Universal clip-on Mirror Monitor
3. Display Resolution :480(H)RGB272(V)
4.Aspect Ratio :16:9
5. Power Consumption :2W
6. Video Input :AV1 to VCD/DVD(defaulted). AV2 to backup camera
7. Signal System:PAL/AUTO/NTSC Brightness :250cd/
8. Contrast Ratio :300:1
9. Special anti-glaring glasses for eye sight protestion.
10. Automatically switch to rear view system when reversing.
11. Touch screen button control.
12. Can connect to VCD/DVD/TV/GPS and input device.
13. Easy for instal lation and uninstallation.
14.Wide angle (170) camera, High resolution (480TV line), extra-low illumination (0.3 Lux) for clear night vision
15.Pin nailed camera mounting at upper side of license-plate
16. Power supply: DC10.5~15V (12V normal)
17. Operating temperature: -20~60, RH95% Max
The Camera TECHNICAL SPECIFICATON
Image device |
1/4-inch colour |
TV system |
PAL or NTSC |
Resolution |
480 TV lines |
Electric Shutter |
PAL:625Lines.25Field /sec NTSC :720Lines.25Field/sec |
Effective pixels |
PAL: 720X 576 NTSC: 720X 480 |
Minimum illumination |
0.3Lux |
Viewing angle |
170 degrees (diagonal) |
S/N ratio |
>48dB (AGC-OFF) |
Video output |
RCA connector, 1.0vp-p, 75ohm |
Current consumption |
120mA |
Power supply |
DC8V-12V |
Operating temperature |
-30 to 65 degrees centigrade, RH95% Max. |
Storage temperature |
-35 to 70 degrees centigrade, RH95% Max. |
Other items |
automatic white balance, AGC and BLC |
Water-proof |
Yes, to IP68 standard |

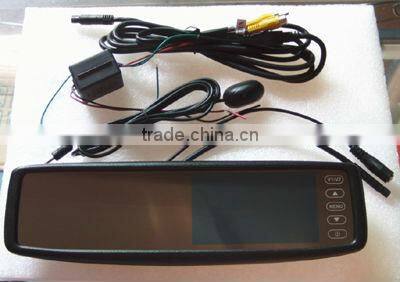

Package Contains:
1 camera
1 Monitor power cable
1 Camera power/video cable
2 screws
1 manual
1.By Express: DHL,UPS,TNT, FEDEX
3~5 days will reach your end. It quick and most popular.
2.By Vessel: FCL or LCL is better to use vessel option. It will more economical but 20~25days.
Our certificates
Our company:
MORE DETAILS,PLEASE CONTACT US DIRECTLY,THANKS.
WELCOME YOU TO COOPERATE WITH US TO BUILD A BRILLIANT FUTURE!
