CKG3 Vacuum Contactor

CKG3 Vacuum Contactor thumbnail-1
CKG3 Vacuum Contactor photo-1
US$ 300 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HOSSIN
Model Number:
CKG3
Contact Supplier Request Quote Chat Now
Yueqing Hossin Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HOSSIN
Model Number CKG3
Electricity Type Vacuum
Number of Pole 3
Phase 3
Main Circuit Rating Voltage High Voltage
Main Circuit Rating Current 630a



 CKG3 7.2KV High Voltage Vacuum Contactor



Product Overviews





The vacuum contactor is mainly used in the power systems with AC 50Hz and rated voltage 6kV or 12kV, for making or breaking circuit and to make electromagnetic starter with suitable protective device and F-C case.









Working Conditions



1) Altitude above sea should not be over 1,000m;

2) Ambient temperature is -5~40°C;

3) Average temperature in 24 hour limited below 35°C;

4) When the highest temperature is 40°C, the relative humidity should not be higher than 50%;

5) Pollution degree: class 3



Model&Meaning



CKG3-630/7.2

C:Contactor

K:Vacuum

G:High Voltage

630:rated current

7.2:rated voltage





Specification

Model

CKG3-7.2/160~630-4

main circuit rated voltage (KV)

7.2

main circuit rated current (A)

160

250

400

630

main circuit making ability (A/100times)

1600

2500

4000

6300

main circuit break-make ability (A/10times)

1280

2000

3200

5000

max. break ability (A/3times)

3200

3200

4000

6300

mechanical life (times)

1,000,000

power-frequency withstand voltage for main circuit (KV)

32

power-frequency withstand voltage for auxiliary circuit (KV)

2.5

power-frequency withstand voltage for control circuit (KV)

2

rated operating frequency (times/h)

300

opening time (ms)

≤120

closing time (ms)

≤150

clearance between open contacts (mm)

4±0.5

over travel (mm)

≥1.2

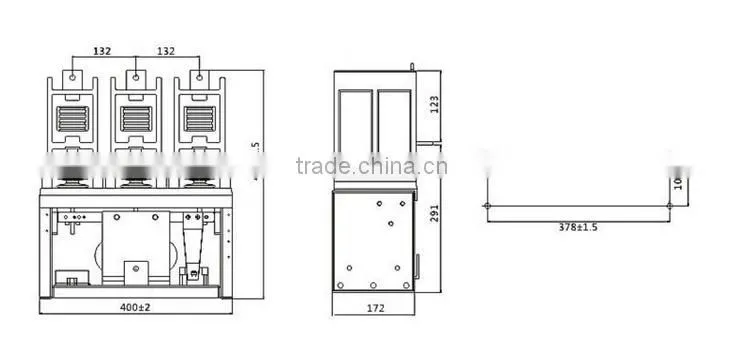

Outline Drawing









Advantages

1.Over 20 years of manufacturing experience with good quality & stable product performance.

2. Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.

3. Quick feedback, Timely quotation, Fast delivery

4. Complete set of testing machine to ensure product quality.

5. Hossin can customize non-standard product as per client’s requirement.

6. Hossin sells pressing parts& pressing mould at low price.

7. Hossin offers electrical installation & commission service.
