Specifications
China LY-2235 CNC Foam Carving Cutting MachineCE/ISO
NC Studio control system
4.5 KW water cooling
Product Name
China LY-2235 CNC Foam Carving Cutting Machine
Features:
1) It can engrave various patterns in the all kinds of foams, stones aranite,marble,crystal stone, rock quartz, crystal stone, microlite, etc
2) The kind of engraving machine can engrave the aranite with a depth 3mm separately and engrave the marble, bluestone with the depth 3mm within one time.
3)Both axis X and Y are racks driving system, it can guarantee the high speed and accuracy.
4)Good software compatibility, it can be compatible with many signing software like CAD/CAM.
Technical Parameters of CNC Foam Carving Cutting Machine | |
Model |
LY-2235 S2 |
Table size(mm) |
2400*4000 |
X Y Z Travel(mm) |
2200*3500*600 |
Max travel speed(mm/min) |
20000 |
Max working speed(mm/min) |
12000 |
Spindle power(KW) |
4.5(water cooling)
|
Spindle working speed(rmp/min) |
6000-24000 |
Control system |
DSP(NC Studio) |
Command |
G code *u00*mmg*nc |
Working condition |
Windows/2000/xp |
Working mode |
Stepper(servo) |
Transmission mode |
XY gear wheel , Z screw |
Working voltage |
AC380/50Hz |
---Both axis X and Y are racks driving system to guarantee the high speed and accuracy.
----Good software compatibility, it can be compatible with Typ3/Artcam/Castmate/Wentai etc many signing software like CAD/CAM

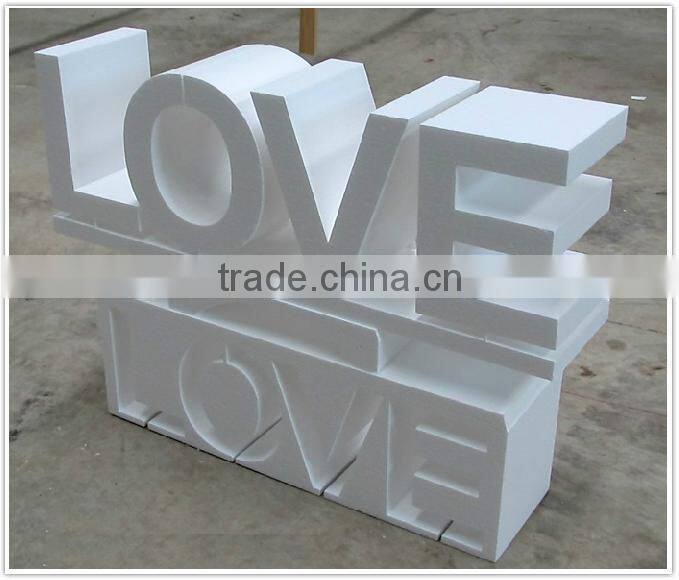

Some engraving effect samples
The machine can engrave all kinds of patterns in the foams.
Our Accessories
All our parts of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor optional), spindle (air cooling or water-cooling optional ) ,guide rail (linear guide rail or square linear guide optional ) and the table of the machine also can be customized and so on.
1)Especially engaged in researching and developing CNC woodworking processing centers, CNC woodworking engraving machines, stone engraving machines, advertising engraving machines, laser engraving machines and so on.
2)Advanced producing technology and modern management team
3)Own more than 10 years experience on engraving machinery field.
Our friendly people warmly welcome all friends from the world to visit our factory and cooperate with us.
The main reason of your choice for Lingyue CNC Router
A. Our company is specialized in manufacturing cnc router (woodworking machine, stone engraving machine), cnc plasma and cnc laser machine with more than 10 years experience. Our products have gained great popularity for reliable quality and reasonable price.
B. Our machines are widely used in almost all the materials and industries, such as wood, stone, advertisement, metal and other fields.
C. we provide you best price and excellent service, you can feel at home if you cooperate with us.
D. We have large capacity of production, if you are urgent to get the machines, we can send you with a very short time, even 10 days or shorter time, besides, we will find direct vessel to arrive at you as possible as early.
E We can accept T/T or L/C payment.
Our package is water pretection and strong wooden case for long time sea transportation
I Guarantee & After-Sales Service
A.All our machines have one year
warranty under normal use and we give maintenance for life for free.
B. We are 24 hours on line, if you have any problem or requirements, you are always to contact us by phone, e-mail or MSN or Skype.
C.User-friendly English manual and Video CD for machine using and maintaining are supplied.
D We also can give your people free training to make sure your people master the operation of our machines.
II Cooperations With Customers
A. We warmly welcome all friends from all over the world to visit our factory and cooperate with us, we are sure that we will supply best price and excellent service to meet every customers demands. The customer's satifction is our only target.
B.We are 24 hours on line, if you have some requirements, please donot hesitate to contact us, we will reply you within a short time.
III IF YOU CHOOSE LINGYUE, YOU CAN GET
1) High quality: Every part of our machine has one year warranty.
2) Good service. I am 24 hours on line, if you have any problem, call me.
3.Competitive price. Comparing some distributors, we are manufacturer, our price is the best.
4)Timely delivery. If the machine or any parts is urgent, we will meet your urge
IV Notes:
Q1.how to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
We will try our best to supply you the most satified answers to meet your requirements.
If you interested, please contact me freely.
Thank you
