Specifications
3d foam cutting machine1.CE/ISO
2.NC Studio control system
3.4.5 KW water cooling
4.Ten years experience
Product Name
manufacturers china LY1318 3d foam cutting machine
Features of 3d foam cutting machine:
1) It can engrave all kinds of patterns in the all kinds of foams, stones aranite,marble,crystal stone, rock quartz, crystal stone, microlite, etc
2) The kind of engraving machine can engrave the aranite with a depth 3mm separately and engrave the marble, bluestone with the depth 3mm within one time.
3)Both axis X and Y are racks driving system, it can guarantee the high speed and accuracy.
Specifications of 3d foam cutting machine:
Technical Parameters | |
Model |
LY-1318 |
Table size(mm) |
1500*2100 |
X Y Z Travel(mm) |
1300*1800*300 |
Max travel speed(mm/min) |
8800 |
Max working speed(mm/min) |
8000 |
Spindle power(KW) |
3.7(water cooling) |
Spindle working speed(rmp/min) |
6000-24000 |
Control system |
DSP(NC Studio) |
Command |
G code *u00*mmg*nc |
Working condition |
Windows/2000/xp |
Working mode |
Stepper(servo) |
Transmission mode |
XYgear racks, Z ballscrews |
Working voltage |
AC380/50Hz |
---Both axis X and Y are racks driving system to guarantee the high speed and accuracy.
----Good software compatibility, it can be compatible with Typ3/Artcam/Castmate/Wentai etc many signs software like CAD/CAM
Our Accessories of 3d foam cutting machine:
All our parts of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor optional), spindle (air cooling or water-cooling optional ) ,guide rail (linear guide rail or square linear guide optional ) and the table of the machine also can be customized and so on.

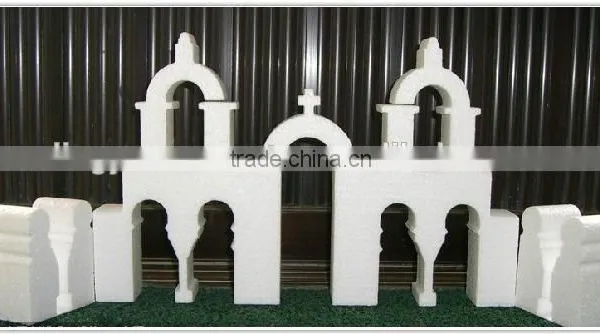

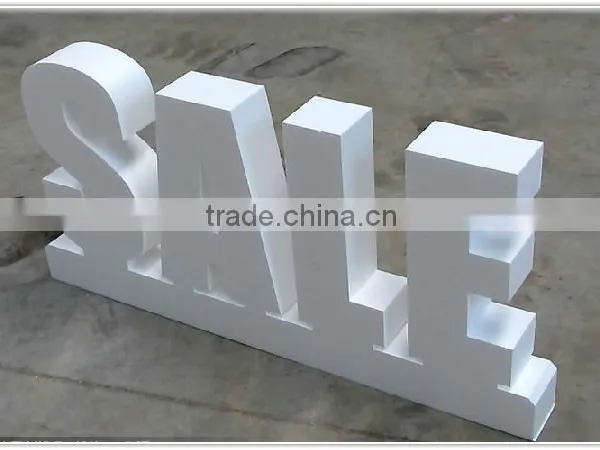

Product samples of 3d foam cutting machine:
Packaging material: standard wooden case for 3d foam cutting machine.
Shipping: We arrange shipment by sea.
ⅠAfter sales Service of 3d foam cutting machine.
1. Be guarantee for one year.
2. 24-hour technical support by email or calling.
3. User-friendly English manual and Video CD for machine using and maintaining.
II Cooperations With Customers
A. We warmly welcome all friends from all over the world to visit our factory and cooperate with us, we are sure that we will supply best price and excellent service to meet every customers demands. The customer's satifction is our only target.
B.We are 24 hours on line, if you have some requirements, please donot hesitate to contact us, we will reply you within a short time.
III If you choose us, you will get?
1) High quality: Every part of our machine has one year warranty.
2) Good service. I am 24 hours on line, if you have any problem, call me.
3.Competitive price. Comparing some distributors, we are manufacturer, our price is the best.
4)Timely delivery. If the machine or any parts is urgent, we will meet your urge
IV How to get the most suitable machine and best price ?
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
We will try our best to supply you the most satified answers to meet your requirements.
We are manufacturer and specialized in CNC Router, Woodworking Machine, Advertising Machine, Stone Engraving Machine, laser engraving and cutting machine, plasma cutting machine and cutter plotter, with 10 years production and sales experience in this field.
Thanks to the economic price and high quality,our products are popular in many countries, including Eastern Europe, South Asia, North America, Oceania and have established a leading position in those engraving machine field.And we are always aiming to innovate the machines,offer customs the best quality and service.Lingyue really welcome friends from home and abroad ,to come and visit our factory.Believe me, choose us you will never have the chance to regret.
Company And Our Customers Show:
Produce what you want, sell what you need!
