CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism

CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism thumbnail-1
CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism thumbnail-2
CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism thumbnail-3
CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism thumbnail-4
CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism photo-1

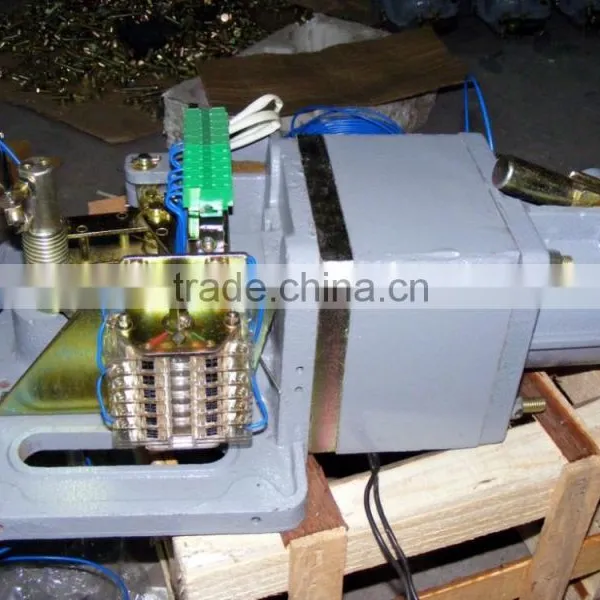

CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism photo-2

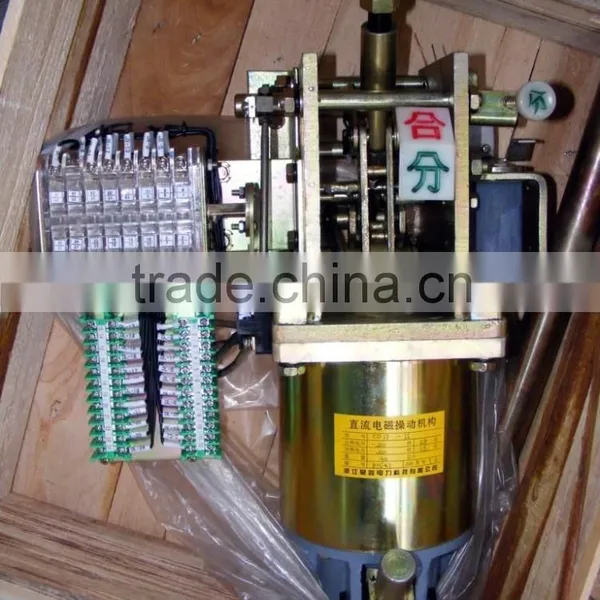

CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism photo-3

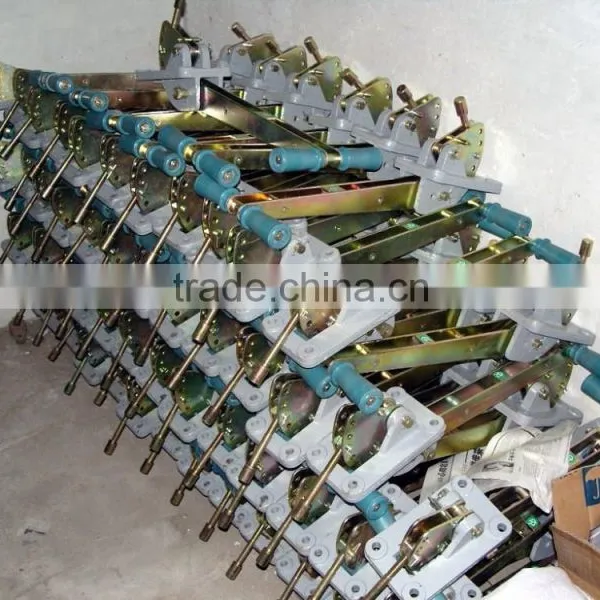

CD10 Circuit Breaker Operating Mechanism Electromagnetic Operation Mechanism photo-4
US$ 150 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
Electromagnetic operation mechanism
Contact Supplier Request Quote Chat Now
Yueqing Hossin Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name hossin
Model Number Electromagnetic operation mechanism

CD10 circuit breaker operating mechanism





Product Overviews



CD10 electromagnetic operation mechanism is indoor suspension type electromagnetic operation mechanism, which is used to control SN10 high voltage circuit breaker. The operation mechanism can be classified into motor closing type, motor opening type, manual opening type as well as auto-reclosing type. DC power supply is required for opening and closing.







Specification







operation mechanism model
circuit breaker model




CD10-Ⅰ

CD10-Ⅱ
CD10-Ⅲ
SN10-10Ⅰ
SN10-10Ⅱ
SN10-10Ⅲ
SN10-10Ⅲ
630-16
1000
1000-31.5
1250-40
2000-40
3000

1

200V closing coil
Current(A)
99
120

147
 Resistance(Ω)
2.22±0.18
1.82±0.15

1.50±0.12

2

110V closing coil
Current(A)
196
240

294
Resistance(Ω)
0.56±0.05
0.46±0.04

0.38±0.04



3

24V closing coil
current(A)
37
resistance(Ω)
0.65±0.03
4
48V closing
current(A)
18.5
coil
resistance(Ω)
2.6±0.13
5

110 closing coil
current(A)
5
resistance(Ω)
55±1.1
6
200V
current(A)
2.5
closing coul
resistance(Ω)
88±4.4

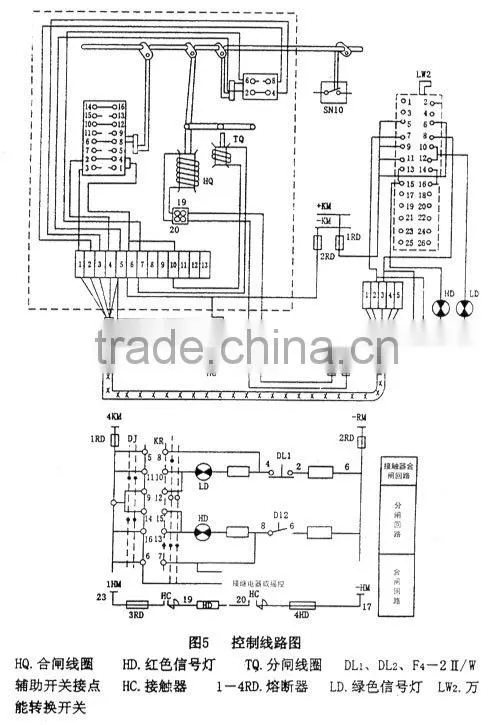

Outline Drawing
