Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Lightning Arrester Rod

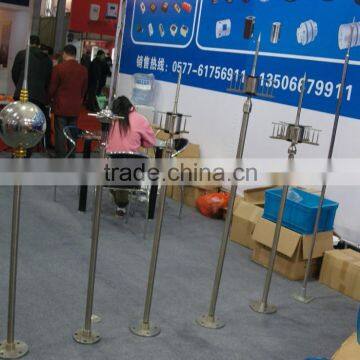

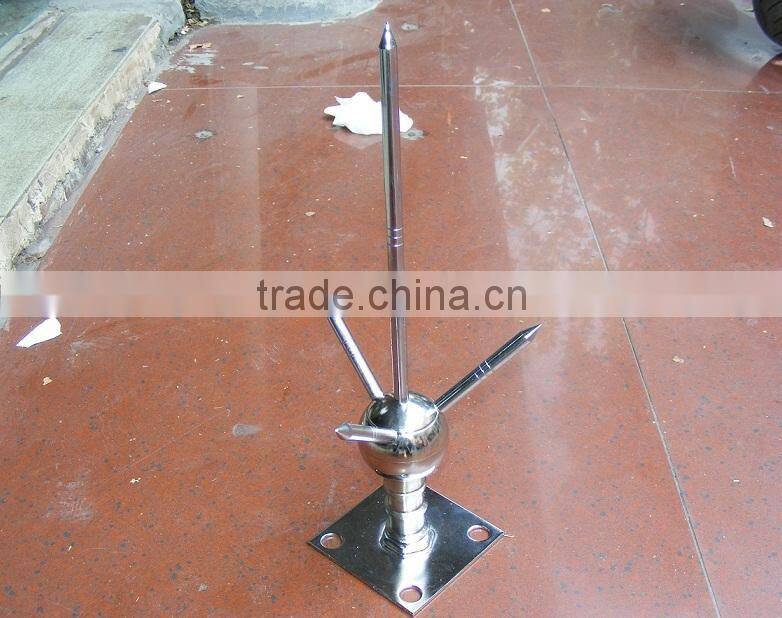

Lightning Arrester Rod

Name: Lightning Arrester Rod
Brand: HOSSIN
SKU: 101630125
Availability: InStock

US$ 16.7 - 20.2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HOSSIN

Model Number:

lightning arrester rod

Contact Supplier Request Quote Chat Now

Yueqing Hossin Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HOSSIN

Model Number lightning arrester rod

lightning arrester rod

Product Overviews

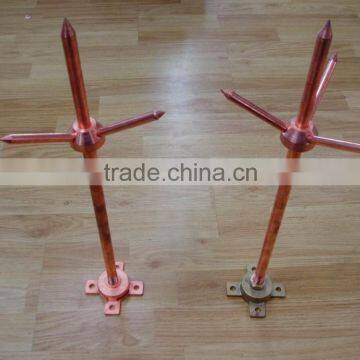

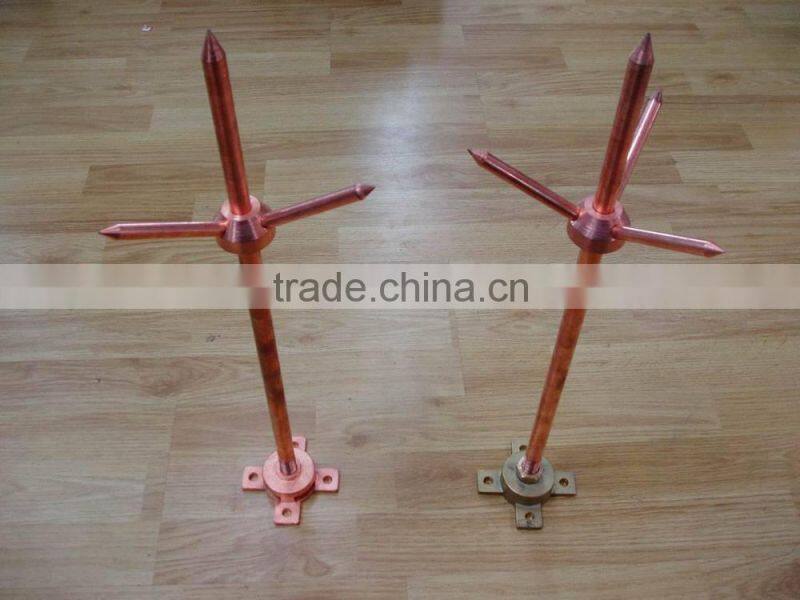

Copper Lightning Rod is used for protecting the buildings to avoid lightning strike. Lightning rod arrester plays an important part of the air termination network protection .

As Controllable Discharge Lightning Rod or lightning surge rod manufacturer ,the lightning surge rod is used for protecting the buildings to avoid lightning strike. Lightning Rod plays an important part of the air termination network of a lightning protection system.We are professional lightning rod manufacturer.
Controllable Discharge Lightning Rod,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building . Our SLE lightning rod comply with GB standard . Customized lightning rod available .

Features

Material Copper Clad Steel or Stainless Steel
Size Customized
Life More than 50 Year
Characters Easy installation ,long life
Protection angle 65
Average discharge current Less than 7KA
Current gradient Less than 5KA
Grounding resistance Less than 10 ohm
Resistible wind speed Over 50m/s
Corresponding protection radius 2.14h

Specification

Description Size Material

Lightning rod Dia7mmxL250mm copper coated steel or stainless steel

Three point needle Dia7mmxL9mm

Ball Dia18mm
Holder Dia85mmxH60mm
Base 100mmx100mmx2mm
Total Height 370mm

INSTALLATION
(A)The installation of lightning rod
Matters need attention during installation:
(1)The lightning rod and other metal part on the building should connected together;
(2)No low voltage cable or communication cable installed on the rod
(B)Installation of earthing tape and earthing grid
1. Installation of exposed earthing tape (grid) :Installed at the ridge ,eave(abat-vent) or edge of roof
(1)Installation at the concrete base of roof :The base can be made with the roof together ,and fixed to the roof.
( 2) Installation on the parapet wall or gutter bracket
Installed along parapet wall and fixed with bracket ,and the bracket should be installed earlier .The working height of bracket should be less than 150mm . The bracket for direct line should be first and then for the middle .The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution
(3) Installation at ridge ,eave or edge of roof
Use concrete base or bracket
If make the base on site , please remove the corner of ridge tile first ,and make the bracket and ridge tile together;
The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution

SUITABLE SCOPE
Controllable Discharge Lightning Rod is used for lightning system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

PACKING
Strong packing is available and free of charge ,which is suitable for loading, storage in most popular condition .Custom packing will be charged reasonably to favor customer’s requirement .
