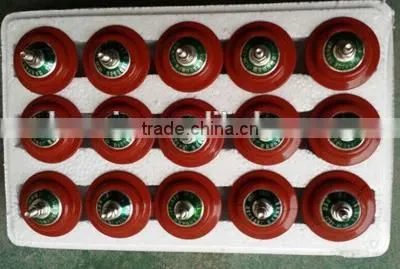

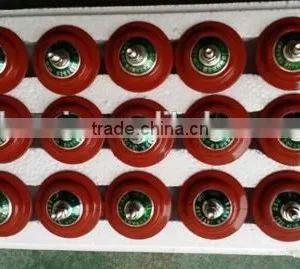

Low-voltage surge arrester lighting arrester
1,Company founed in 1988
2,MOA high performance,lower discharge
3,220/380V Porcelain/Polymeric Housed Low-voltage Arrester
Key words : Arrester,220/380V Porcelain/Polymeric Housing Low-voltage Arrester
- Material:Porcelain Housing/Polymeric Housing
- Our factory can make the product according to the requirement of clients
The product characteristic:
- Smaller in size,Light in weight,High withstand collision,Flexible installation, Particularly suitable for use in the switch cabin
- Special structure, the overall compression molding, no air gap, high sealing performance, moisture-proof explosion-proof
- large creepage distance , good hydrophobic, strong resistance to incompetence, stable performance and reduce operation and maintenance
- High performance zinc oxide varistor, high-capacity, low-leakage
- Real with DC reference voltage, square-wave-pass flow capacity and high current tolerance is higher than the national standard
Arrester Type |
System R.V |
Arrester R.V |
MCOV |
D.C.U1mA (D.C) MinU1mA |
1/5μs steep current impulse |
4/10μs High current impulse |
8/20μs Lightning current impulse |
2ms Rectangular current impulse |
KV(r.m.s) |
KV |
KV |
A |
|||||
Y1.5W-0.28/1.3 |
0.22 |
0.28 |
0.24 |
0.65 |
1.40 |
25 |
1.30 |
75 |
Y1.5W-0.5/0.26 |
0.38 |
0.5 |
0.42 |
1.30 |
2.70 |
25 |
2.60 |
75 |
The Outside Size and the Installation Size:
Category |
Model No. |
Sys Rated voltage |
Outside Size |
Install Size |
|||
|
H (mm) |
h (mm) |
φ (mm) |
Up (mm) |
Down (mm) |
|||
Low-voltage |
Y1.5W-0.28/1.3 |
0.22 |
90 |
40 |
65 |
M6 |
M6 |
Y1.5W-0.5/0.26 |
0.38 |
90 |
40 |
65 |
M6 |
M6 |
|
