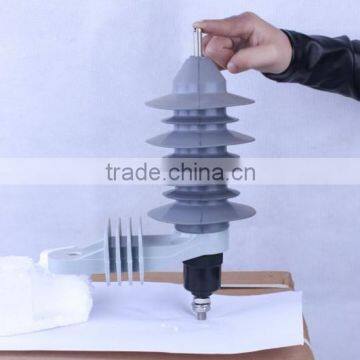

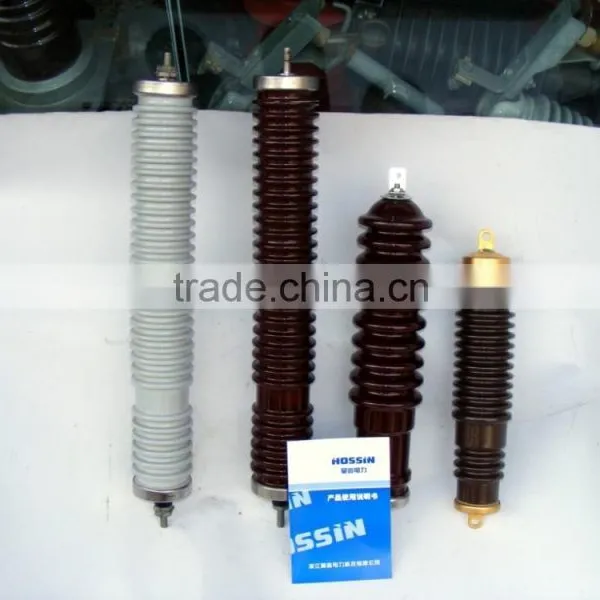

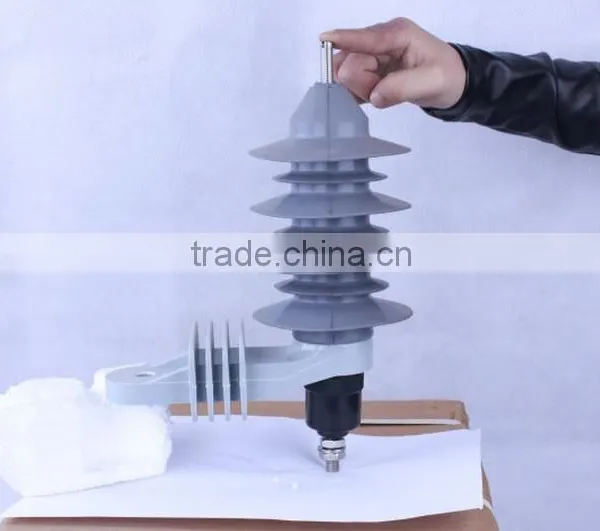

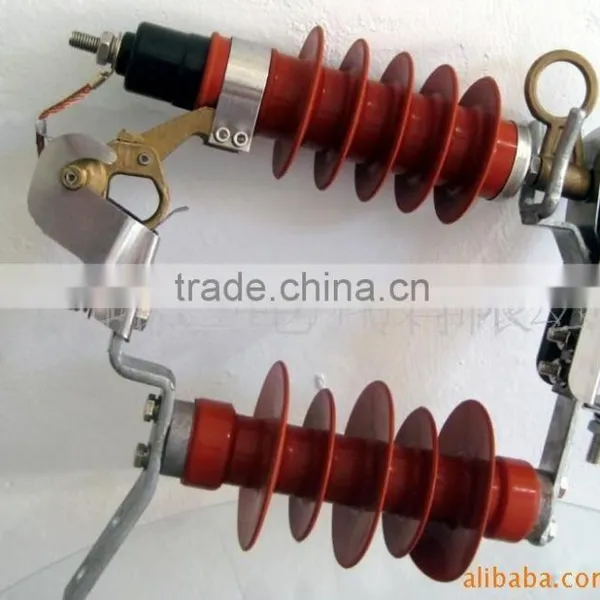

9KV Lightning Arrester 11KV Lightning Arrester
1.our lightning arrester is
2.at low price
3.of high quality
4.one of the best lightning arrester
| TYPE | MOA Rated voltage KV(rms) |
MCOV KV(rms) |
Current impulse Residual Voltage | 2msrectangular current impulse withstand KV(crest) |
4/10μs High current impulse withstand KV(crest) |
||
| 1/4 μs Lightning current impulse KV(crest) |
8/20 μs Lightning current impluse KV(crest) |
30/60μs Switching current impluse KV(crest) |
|||||
| 10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 100 |
| 10W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 250 | 100 |
| W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150 | 65 |
| W-6 | 6 | 5.1 | 22.6 | 18 | 10.8 | 150 | 65 |
| W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 150 | 65 |
| W-10 | 10 | 8.4 | 36 | 30 | 23 | 150 | 65 |
| W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 |
| W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 150 | 65 |
| W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 150 | 65 |
| W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 150 | 65 |
| W-21 | 21 | 17 | 71.8 | 63 | 54.2 | 150 | 65 |
| W-24 | 24 | 19.5 | 62 | 72 | 62 | 150 | 65 |
| W-27 | 27 | 22 | 92 | 81 | 69.8 | 150 | 65 |
| W-30 | 30 | 24.4 | 102 | 90 | 79 | 150 | 65 |
| W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150 | 65 |
| W-36 | 36 | 29 | 123 | 108 | 92.4 | 150 | 65 |
| W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 250 | 100 |
| W-6 | 6 | 5.1 | 22.6 | 18 | 10.8 | 250 | 100 |
Hossin Electric is specialized in manufacturing HV Fuse, Lighting Arrester, Isolating Switch,HV circuit breakers,VCB,Switchgear. We offer you with most competitive price, timely delivery and we can customize various products according to your requirement in a quick time.Have any questions contact us.Call me at 0086-15825683611.
Our Advantages
(1)Over 20 years of manufacturing experience with good quality & stable product performance.
(2)Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.
(3)Quick feedback, Timely quotation, Fast delivery
(4)Complete set of testing machine to ensure product quality.
(5)Hossin can customize non-standard product as per client’s requirement.
(6)Hossin sells pressing parts& pressing mould at low price.
(7)Hossin offers electrical installation & commission service.
