customized steel composite wall bushing insulators
USD $4 - $3,000
/ Piece
1 Piece(Min.Order)
- 30000 Piece / Pieces per Month
- ALL
- T/T L/C D/P D/A
You May Like
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | hossin | Model Number: | FXBW FS FZSW FPQ XWP XP LXP ZSW |
Type: | Insulator | Material: | Composite Polymer | Application: | High Voltage |
Rated Voltage: | 9KV 10KV 11KV 12KV 33KV 35KV 40.5KV 220KV 330KV 500KV | Tensile Strength: | 70 100 120 160 210 300 500 |
Product Description

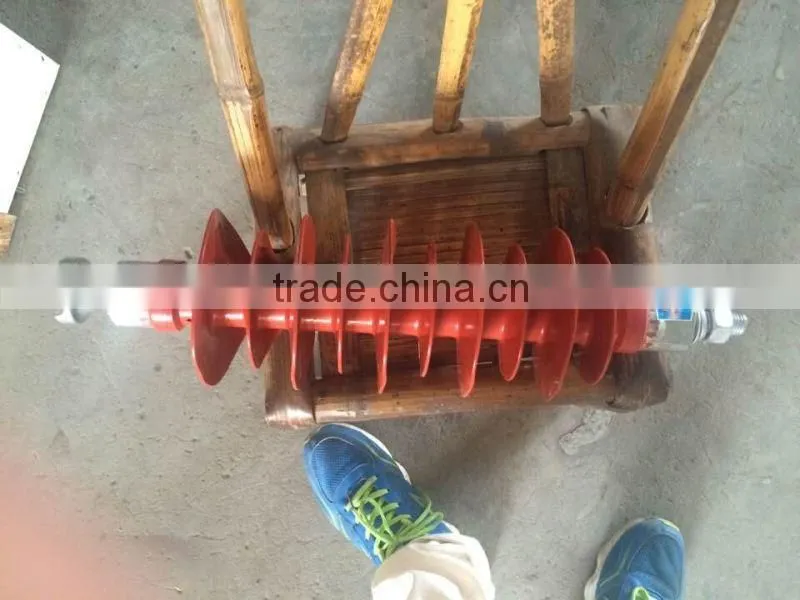

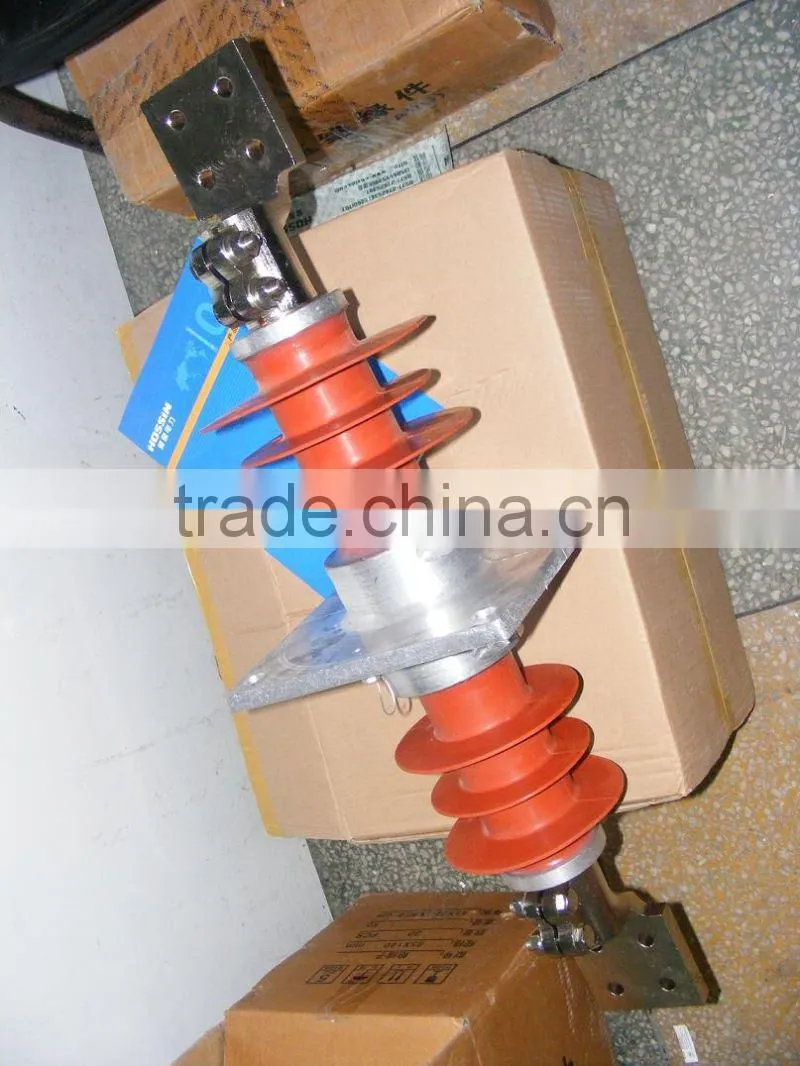

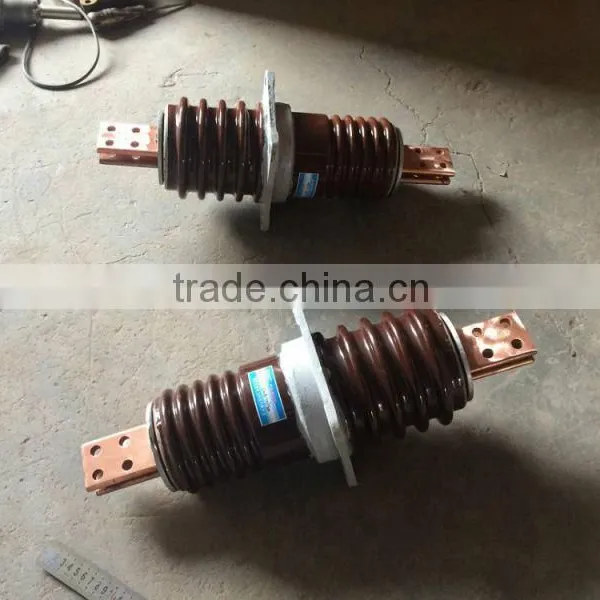

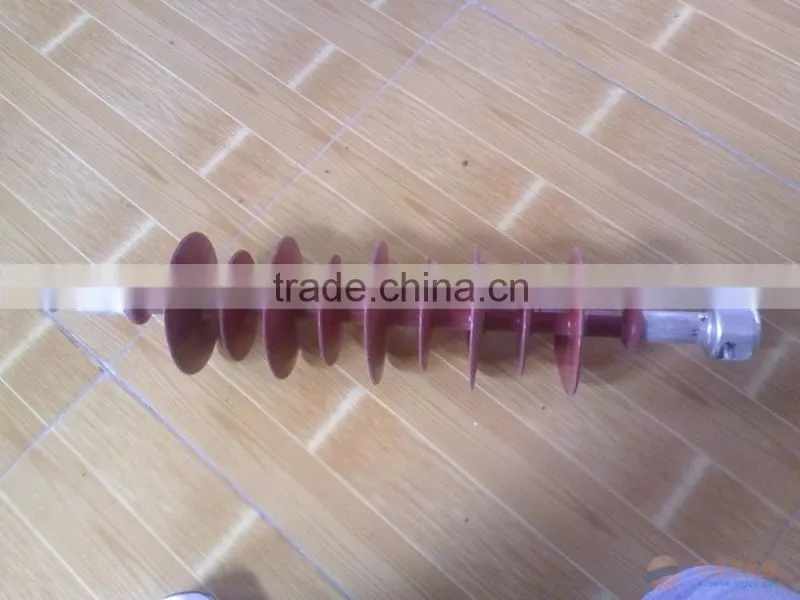

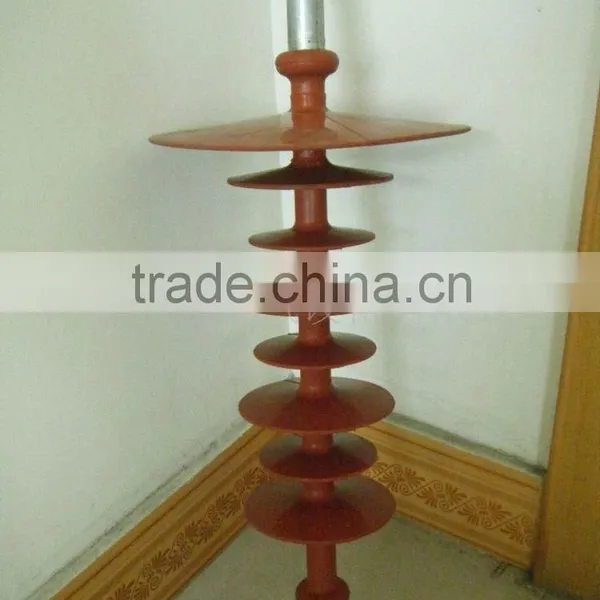

customized steel composite wall bushing insulators

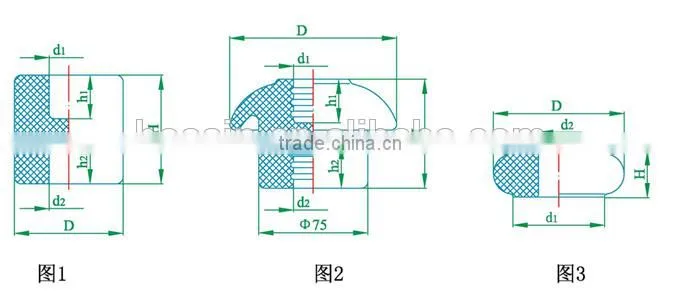

Model | Picture No. | Main dimensions mm | Mechanical failing load kN | Frequency voltage kV | Weight kg | |||||||
H | h1 | h2 | D | d1 | d2 | Tensile | Bending | Dry flash | Wet flash | |||
1-01 | 1 | 75 | 30 | 30 | 75 | 27 | 27 | 5 | 2 | 30 | 10 | 0.9 |
1-02 | 2 | 75 | 30 | 30 | 115 | 27 | 27 | 5 | 2 | 35 | 13 | 1.0 |
2-01 | 3 | 25 | — | — | 65 | — | 23 | — | — | — | — | 0.32 |
2-02 | 3 | 32 | — | — | 90 | — | 28 | — | — | — | — | 0.50 |
We are specialized in the production: vacuum circuit breaker; sulfur hexafluoride circuit breakers; isolating switch; load switch; drop-out fuses; High Breaking Capacity Fuses; arresters; transformer; high voltage insulator; metering box; Through-wall bushing; operating mechanism ; less oil circuit breaker; multi-oil circuit breaker; over-voltage protection device; complete sets of equipment.
Have any questions contact us
Contact Us
- Yueqing Hossin Electrical Co., Ltd.
- Contact nameCaren Hong
- Phone86-577-15825683611
- AddressNiqian Village, Xiangyang Town, Yueqing
