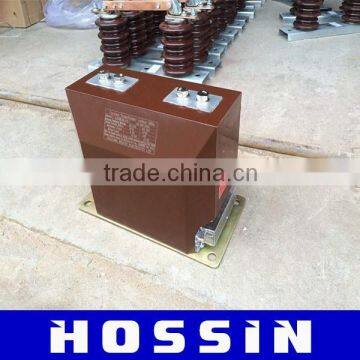

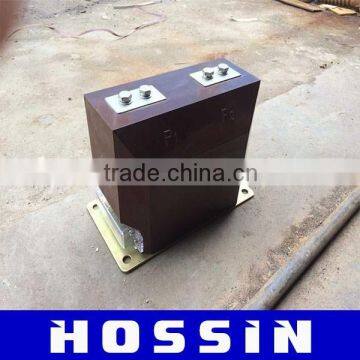

LZZBJ9-10 LZZBJ9-12 Current Transformer
US$ 70 - 150
MOQ: 1 Gill
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
LZZBJ9-10 LZZBJ9-12
Payment & Shipping
Payment Methods:
Port of Shipment:
ALL
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LZZBJ10-10Q Current Transformer 11kv Current Transformer 12kv Current TransformerUS$ 7 - 150MOQ: 1 Gill -
JSJW-3 3KV Outdoor Voltage Trasformer Potential TransformerUS$ 5 - 10MOQ: 1 Piece
-
JSJW-10 3KV 6KV 10KV Outdoor Voltage Trasformer Potential TransformerUS$ 50 - 100MOQ: 1 Piece
-
JDJ(J)2-35, JD(X)N2-35 35kv 40.5kv Voltage Transformer Outdoor Voltage Trasformer Potential TransformerUS$ 50 - 100MOQ: 1 Piece
-
JDJ 3KV 6KV 10KV Voltage Transformer Outdoor Voltage Trasformer Potential TransformerUS$ 50 - 100MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
hossin
Model Number
LZZBJ9-10 LZZBJ9-12
Usage
Current
Phase
Three
Coil Structure
Toroidal
Coil Number
Autotransformer
LZZBJ9-10 LZZBJ9-12 Current Transformer
Product Overviews
This current transformer is of a whole sealing casting insulation pillar type, used for
measurement of current and electric energy as well as relay protection in the AC
circuit of rated frequency 50Hz and rated voltage 10kV.

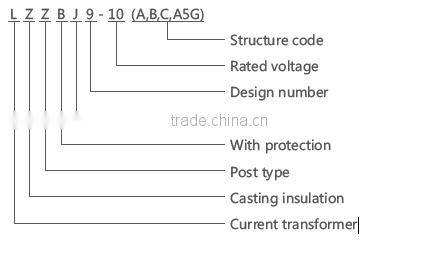

Model&Meaning

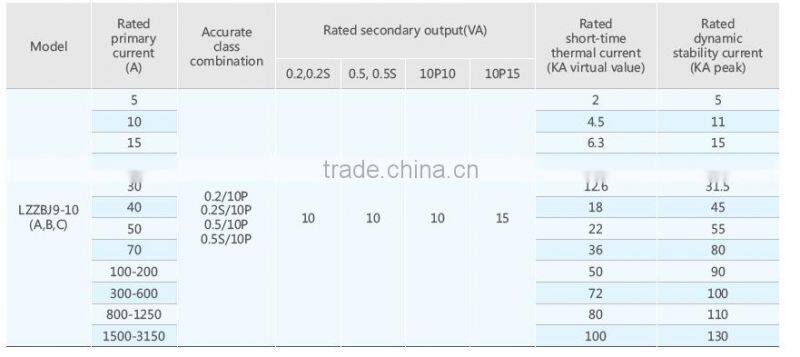

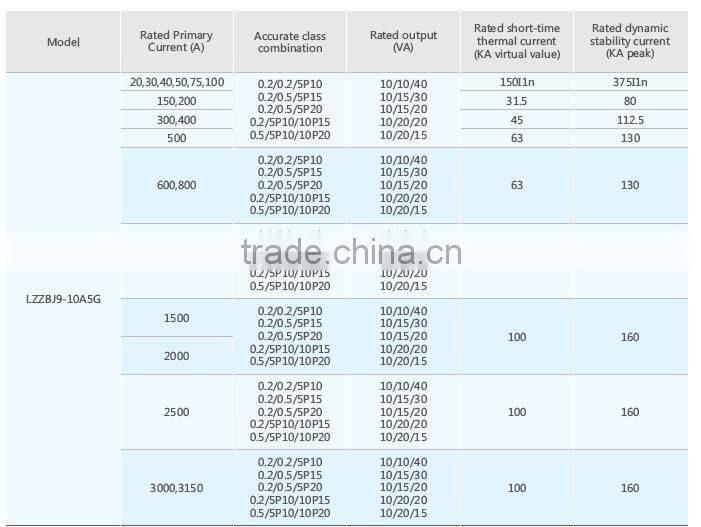

Specification
The performance of products is conformed to IEC standard and GB1208-2006
Current Transformer.
Rated insulation level: 12/42/75kV
Load power factor: cosφ=0.8(Lag)
Rated frequency: 50Hz
Rated secondary current: 5A, 1A
Partial discharge level: In conformity to GB5583-85 standard, its partial discharge
is not more than 20PC.

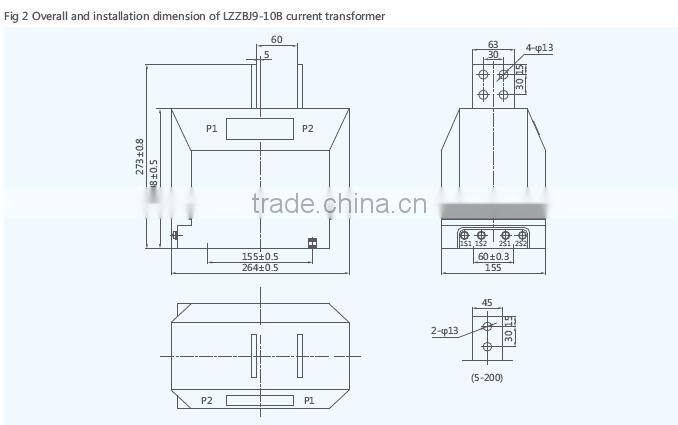

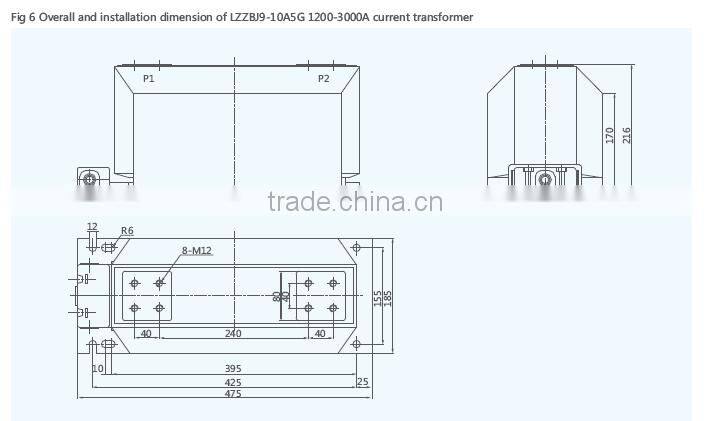

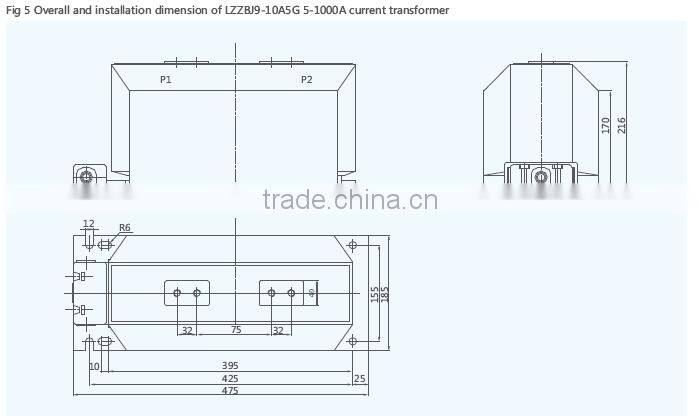

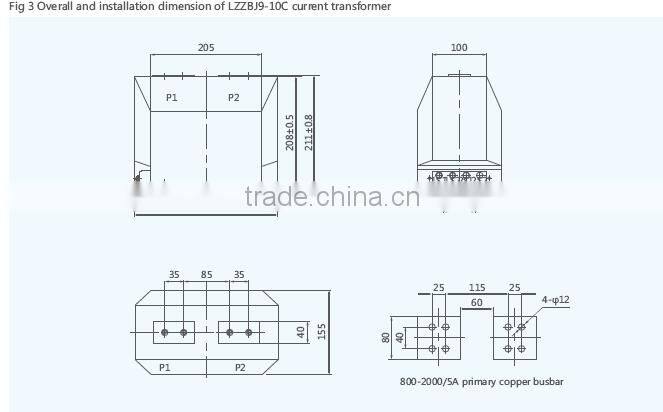

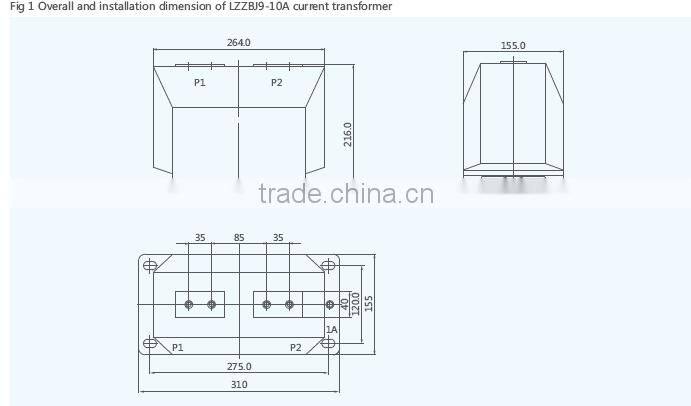

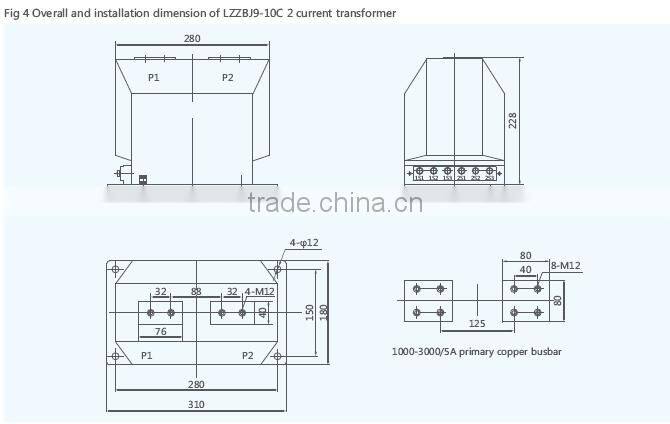

Outline Drawing
