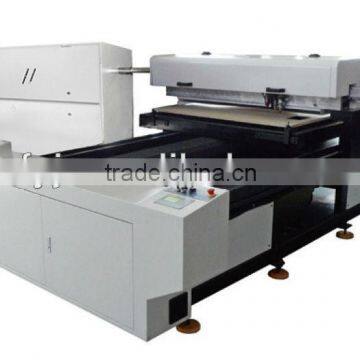

Beijing New Power 1025D Die board Laser cutting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Xingang Port Tianjin China

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, MDF, Metal, Plywood, Wood	Cutting Thickness	18-22mm plywood
Cutting Area	1250x2500mm,4x8	Cutting Speed	1000mm/minute
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	Off-line CNC Control card	Graphic Format Supported	AI, DXF, DWG
Place of Origin	Beijing, China	Brand Name	NEW POWER
Model Number	1025D	Certification	CE, ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1025D Die board laser cutting machine special for die maker cut die board, 18mm plywood, also can cut acrylic, PVC, Metal sheet

1000W Die-board laser cutting machine

Model: 1025D

Laser Source: 1000W Axial fast flow co2 laser generator

Worktable Size: 1250mm*2500mm

Cutting Capacity: Die-board (plywood) 18-22mm, MDF, Acrylic, Thin metal sheet.

1. Products features

lAxial fast flow CO2 laser generator, imported key components, high quality laser beam

insure high accurate cutting.

lStrict lathe bed heat treatment process and scientific machine tools assemble ensure

machine excellent performance and longevity.

l3 axles servo drive system and ballscrew & guide rail transmission systemmake sure

the best cutting accuracy.

lSpecial optical path compensation technology and protection system ensure laser cutting kept

consistency in the whole working area.

lSpecial laser dedicated cooling system, effectively extending the life of laser working.

lIndependent pumping smoke exhaust system makes the equipment achieved an unexpected

effect in fumes discharging.

2. Products parameters

No.	Parameter	Specification
1	Model	1025D
2	Laser output rated power	1000W
3	Worktable Processing size (X,Y )	1250×2500mm
4	Cutting capacity	18-22mm plywood
5	Beam diameter	Approx.Φ15mm
6	Divergence	≤1.5mrad full angle
7	Pointing stability	≤±0.10mrad
8	Speed of positioning(X,Y)	10m/minute
9	Positioning accuracy (X,Y)	±0.05mm/1000mm
10	Repeatability accuracy	±0.05mm
11	Controlling system	Off-line movement control card/NC
12	Transmission system	Ball screw & Linear guide
13	Driving system	3 Axial servo
14	Optical system	Semi-optical
15	Moving structure	Gantry
16	Chiller system	Special chiller system
17	Laser over dimension (L×W×H);Weight	1850×950×1250mm; 600kg
18	Machine body overall dimensions(L×W×H);Weight	4200×2100×1400mm; 1800kg
19	Chiller overall dimensions (L×W×H);Weight	1050×600×1230mm; 100kg
20	Consumption gas	HE,N2, CO2
21	Pressure of accessorial air source	0.8MPa
22	Power supply request	Three-phase 380VAC 50/60Hz

3. 1000SM Laser Key Components

No.	Name	Manufacturer		Country
1	ROOT`S PUMP	1000W	NB600AL	JAPAN
2	LOW VOLTAGE CONTROL CIRCUIT APPARATUS	SIEMENS		GERMANY
		IDEC		JAPAN
		SCHNEIDER		GERMANY
		PHOENIX CONTACT		GERMANY
3	RESONANT CAVITY OPTICS SYSTEM	II-VI		USA
4	COMPUTER OPERATING SYSTEM	DELTA		TAIWAN
5	PNEUMATIC COMPONENT	FESTO		GERMANY
		SMC		JAPAN
		CAMOZZI		ITALY
6	SWITCH POWER SUPPLY CONTROL MODULE	SEMIKRON		JAPAN
7	WATER PATH COMPONENT	SMC		JAPAN
		CAMOZZI		ITALY
8	LASER POWER SENSOR	GENTEC-E		CANADA

Die-board laser cutting machine and Auto bender machine catalogue
Cat.	Model	Laser source	Worktable size
1	412CD	400W Chinese laser tube	1250x1250mm
2	418CD		1250x1850mm
3	425CD		1250x2500mm
4	312D	300W UK GSI laser tube	1250x1250mm
5	318D		1250x1850mm
6	325D		1250x2500mm
7	309D	300W UK GSI laser tube	900X600mm
8	310D	300W UK GSI laser tube	1000x1000mm
9	1018D	1000W Axial fast flow generator	1250x1850mm
10	1025D	1000W Axial fast flow generator	1250x2500mm
11	1518D	1500W Axial fast flow generator	1250x1850mm
12	1525D	1500W Axial fast flow generator	1250x2500mm
13	Die cutting rules Auto bender machine
