Ultrasonic grinding machine / derusting machine / mould abrasive tools

 SZ-100 Ultrasonic grinding machine / derusting machine / mould abrasive tools

Model: SZ-100
1.Application range: Polish complicate cavity, narrow slit, blind hole and other rough surface in all kinds of moulds (include hard alloy mould) to mirror smooth effect.

2. Material for polish: All kinds of metal, glass, jade and agate.
3. Surface roughness after polishing: <Ra0.012(13)
4. Grinding material: diamond paste, diamond file,
     fiber stone, synthetic diamond grinding paste.
5. Discharge medium: Kerosene or water
6. Frequency of sound wave: 19-28KHZ
7. Electrical spark discharge high level time: 0.8μs-10μs
8. Working voltage: single phase 220V ±10% 50Hz
9. Power: 60W
10. Net Weight: 3.8KG
11. HS code: 8451800003
12.Package: Carton case

Characteristics:

1.Self adaptive and control system of the Ultrasonic amplitude and discharge which can greatly enhance the accuracy of pulse shaping.It can make the surface roughness up to Ra0.3μm after shapping.

2. Steady power output and low comsumption.

3.Limiting inductive energy storage technology which can greatly improve the utilizaion of the efficiency.Current utilization of machine with 50W can be higher than the pre-one of 300W.

4. fine casting  does not affect the accuracy of the workpiece,edges and corners; no limited from complexion of  workpiece shape, hardness of material.

5. The material of tool head is widely used and can be made easily.

6. Light and convenient to operating.

Accessories:

1.one main control box   2.one polishing cord 3.one ground wire

4.  one polishing head    5.one spanner       6.several diamond paste

7. several bamboo chip   8.one diamond file  and other small accessories according to the requirement.

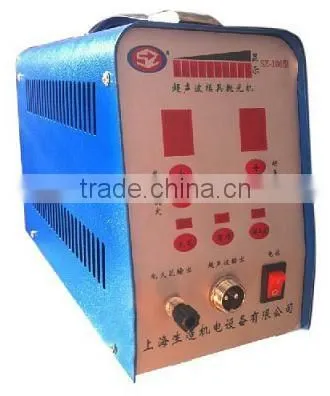

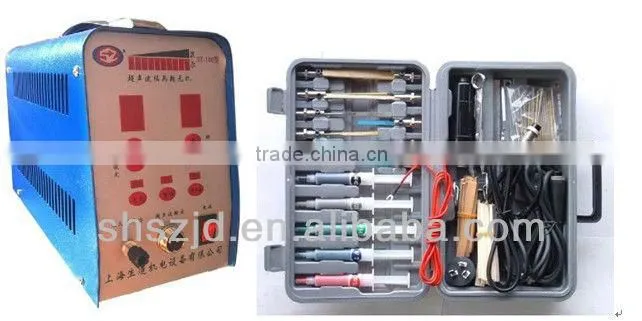

Machine and accessories pictures

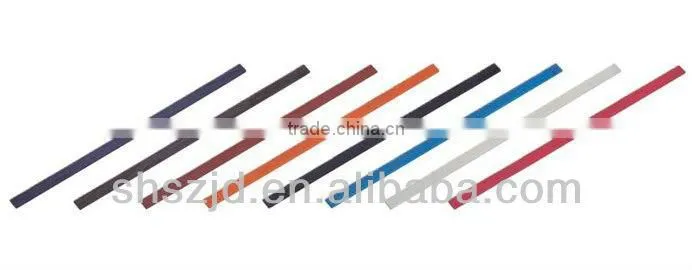

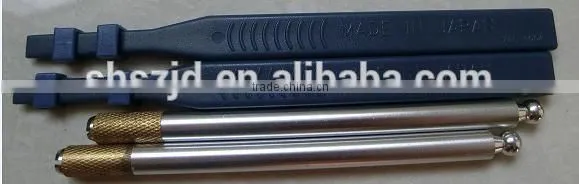

FIber Stone

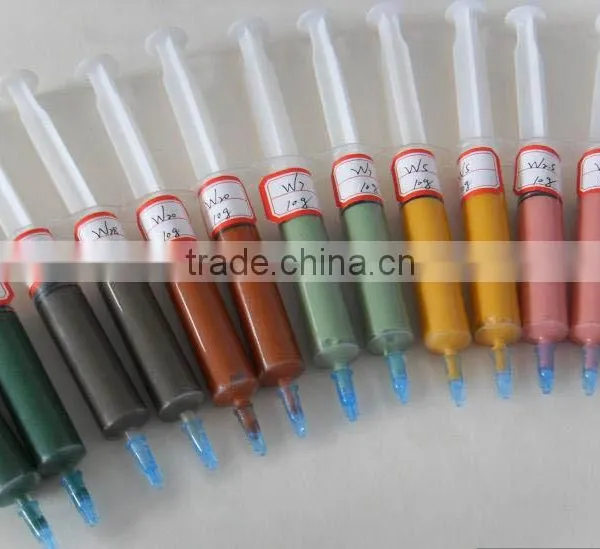

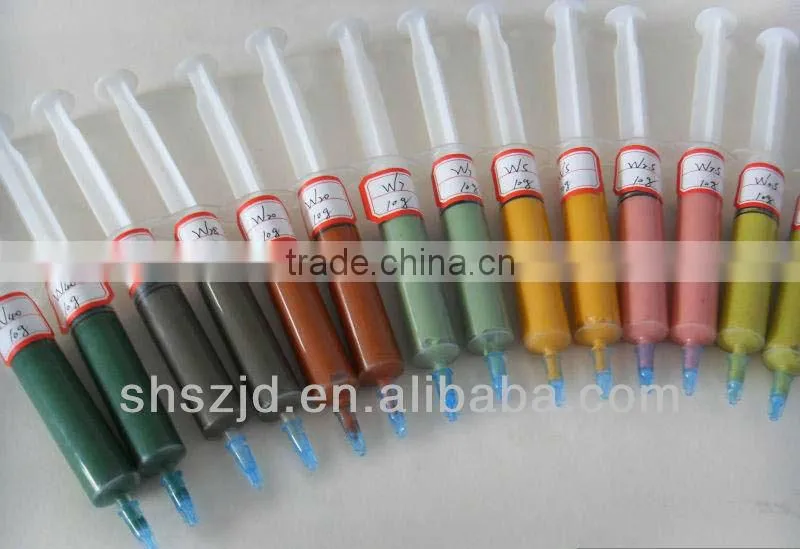

Diamond paste

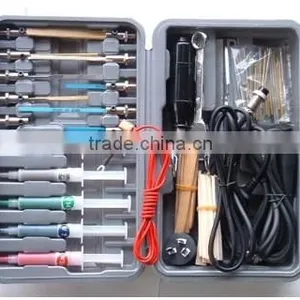

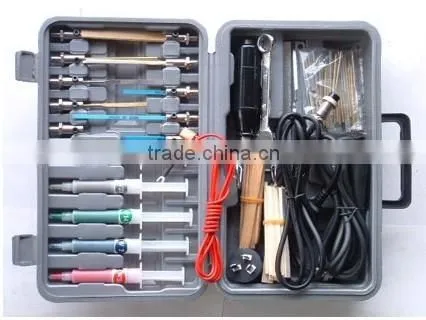

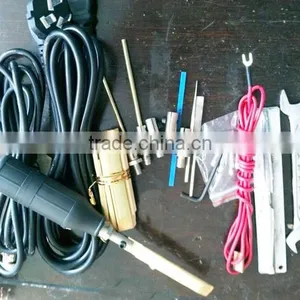

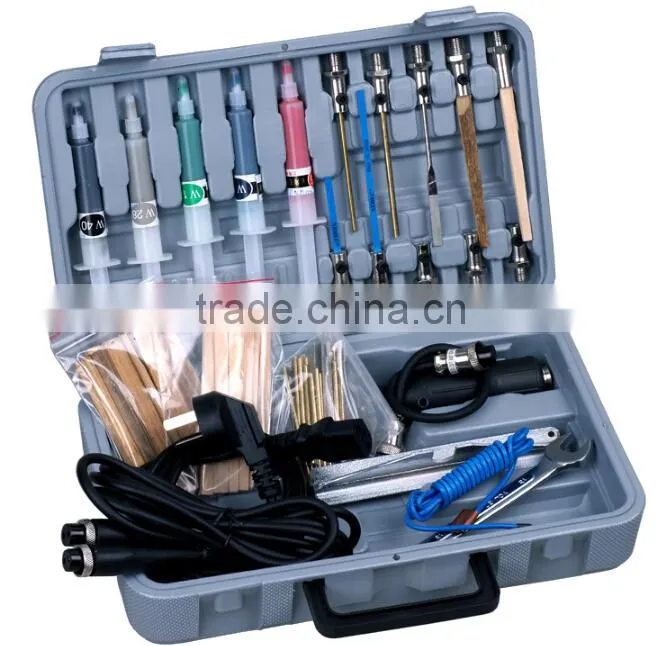

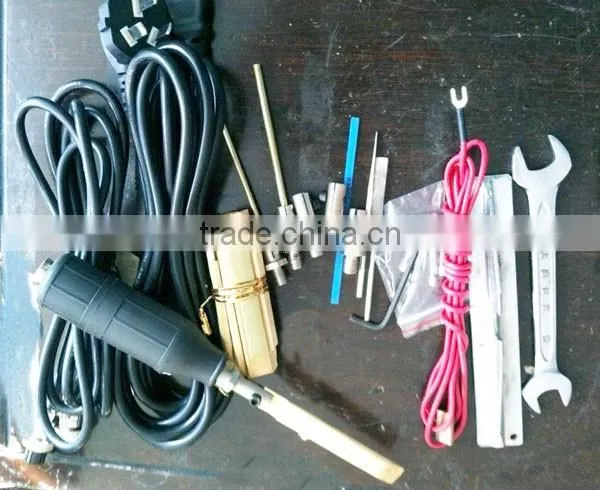

Accessories

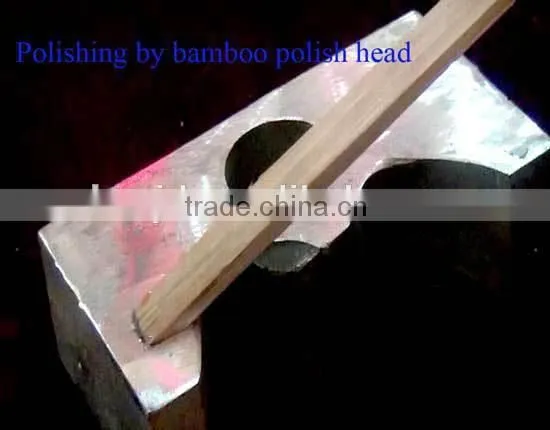

Polishing process:
