SZ-100 Ultrasonic hand held metal stainless steel buffing machine low price portable
- 3000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- SZ-100 hand held Ultrasonic metal buffing machine / good price buffing machine
- SZ-100 Ultrasonic metal stainless steel polishing tool / metal surface polishing tool to mirror effect
- SZ-100 Ultrasonic mold grinding machine, metal surface grinding machine
- SZ-100 Ultrasonic metal polishing equipment / good price of grinding machine
- Ceramic fiber stone / super ceramic fiber oilstone for mini polishing machine
- Shanghai Ultrasonic Mini polishing device / portable grinding tool
Product Details
Condition: | New | Type: | Surface Grinding Machine | CNC or Not: | Normal |
Place of Origin: | Shanghai, China | Brand Name: | shengzao | Model Number: | SZ-100 |
Voltage: | 220V | Power(W): | 60W | Weight: | 4.0KG |
Certification: | CE Certification | After-sales Service Provided: | Overseas third-party support available |
Product Description
SZ-100 Ultrasonic hand held metal stainless steel buffing machine low price portable
Main parameters:
1.Application range: | Polish complicate cavity, narrow slit, blind hole and other rough surface in all kinds of moulds (include hard alloy mould) to mirror smooth effect. |
2. Material for polish: | All kinds of metal, glass, jade and agate. |
3. Surface roughness after polishing | <Ra0.012(13) |
4. Grinding material | diamond paste, diamond file, fiber stone, synthetic diamond grinding paste. |
5. Discharge medium | Kerosene or water |
6. Frequency of sound wave | 19-28KHZ |
7. Electrical spark discharge high level time | 0.8μs-10μs |
8. Working voltage | single phase 220V ±10% 50Hz |
9. Power | 60W |
10. Net Weight | 3.8KG |
11. HS code | 8451800003 |
12.Package | Carton case |
SZ-100 ultrasonic mould polishing machine with following advantages:
1. Micro computer control, resonance frequency and automatic search and lockup function.
2. Nine section vibration of numerical control, with same size and electrical spark interval tracking function.
3. Nine section electrical spark numerical control strength.
4. Fine electrical spark reforming, which is very suitable to reform and polish micro work pieces.
5. It is energy saving as electrical spark output function use limit inductance storage and high technology.
6. Light weight transducer, easy to operate.
7. The controller occupies very small size on operating.

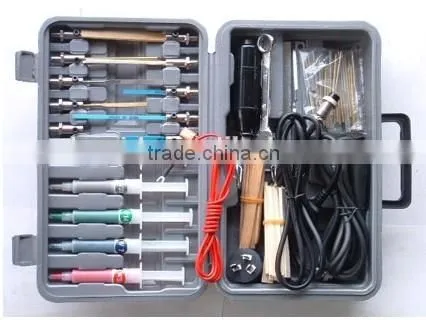

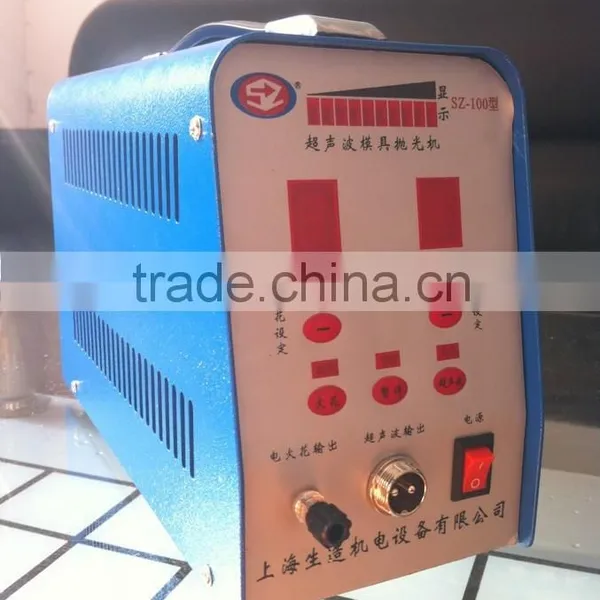

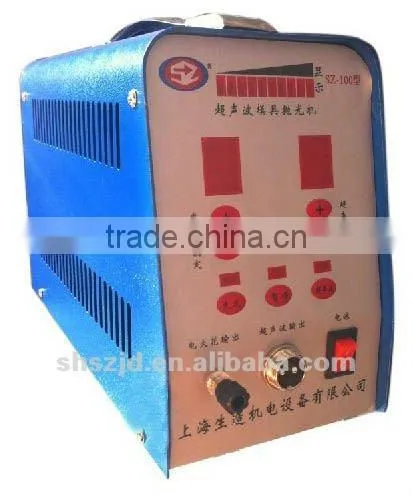

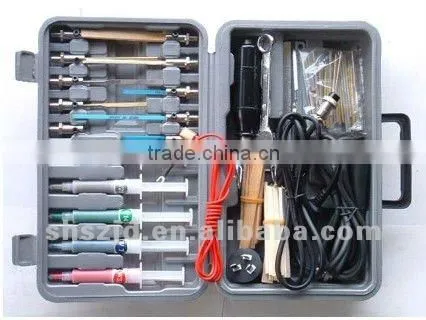

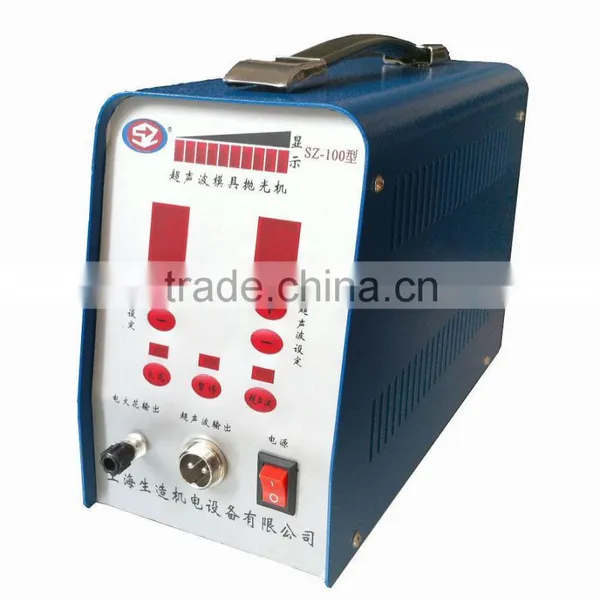

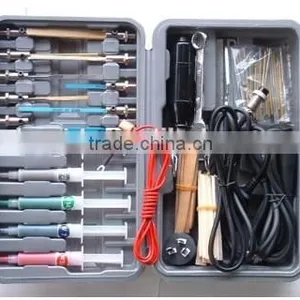

Machine and Acessories pictures:
Other accessories are also provided if any need:

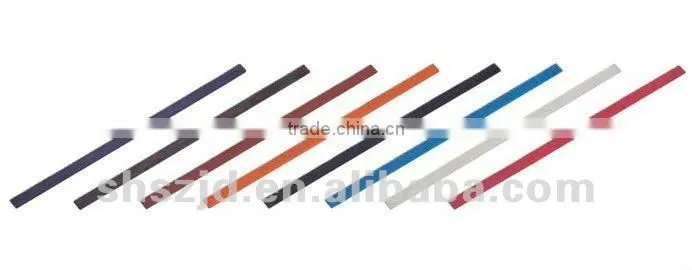

Fiber Stones:

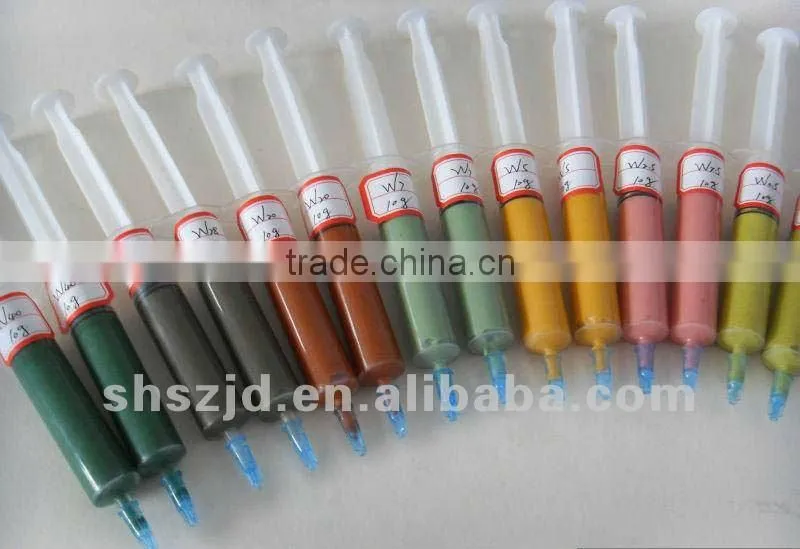

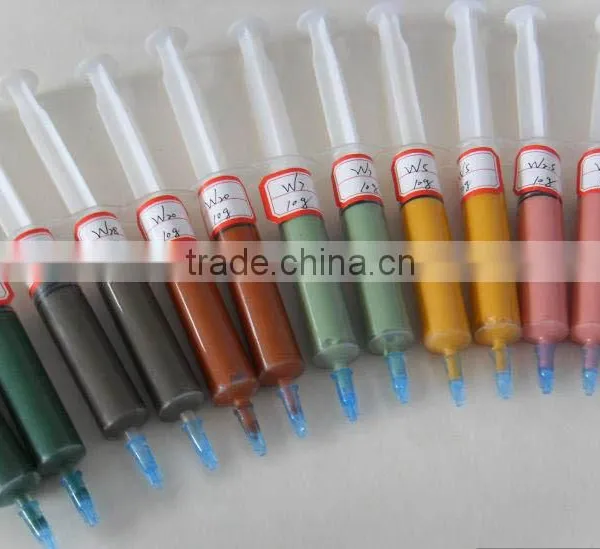

Diamond paste:
Polishing & Grinding machine process:
1. Add diamond paste:

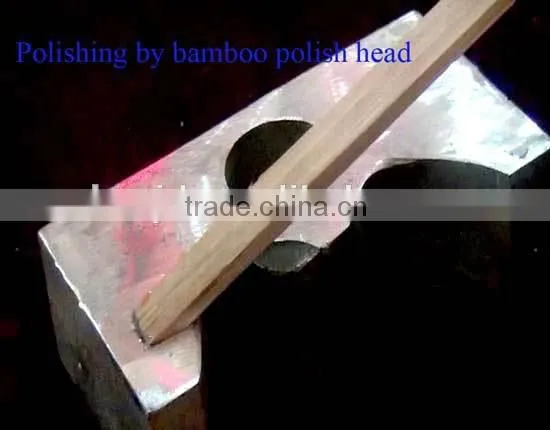

2.Polishing by bamboo polish head:
