Shanghai SZ-3TR mini welding machine China manufacture

SZ-3T copper wire aluminum wire cold pressure welding machine /  Shanghai SZ-3TR New Design press Welder welding tools

1. Main parameters

1.Welding Range(wire)

Copper: 0.80mm-4.0mm;   Aluminum: 0.80mm-5.5mm

2. Structure: Precise mould steel

3. Advantages:

No power, no change of the resistance, clean, light, easy to operate, weld within one minute, aloft working is available.

4. Overall Dimensions: 300mm*190mm *290mm (L*W*H)

5. Material of mould: Imported mould Steel

6. Net weight: 33kg, package weight: 42KG

7. Production ability: 1000sets/Month

8. HS code: 8468800000

9. Package: Wooden case

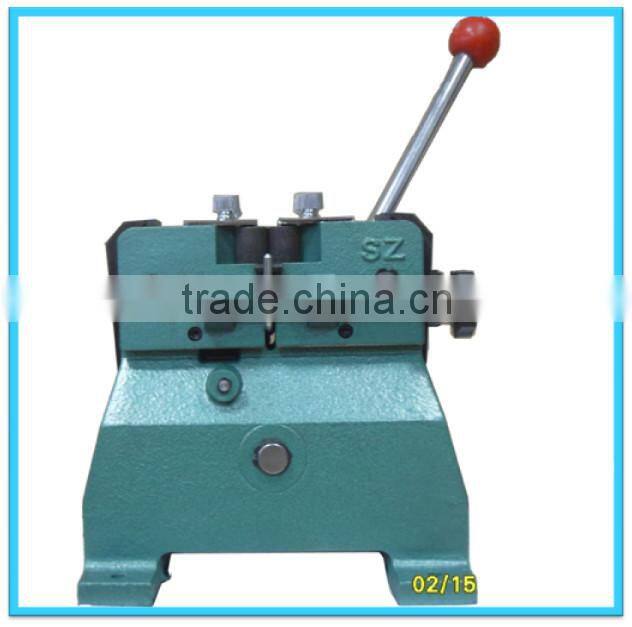

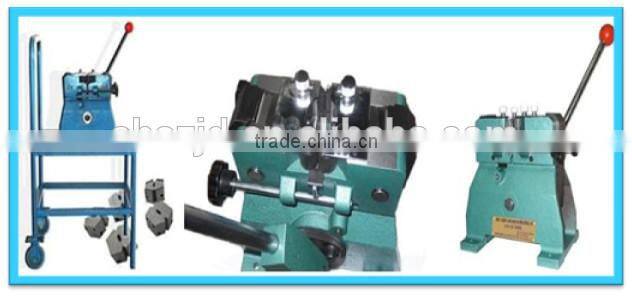

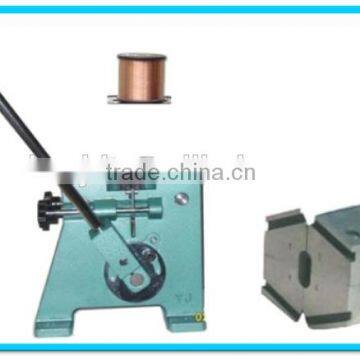

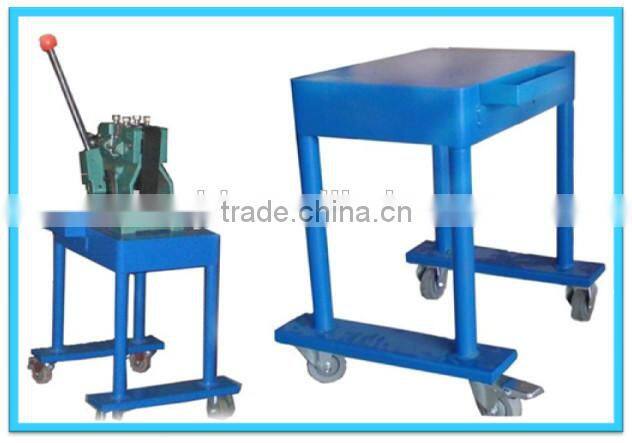

SZ-3T cold welder pictures:

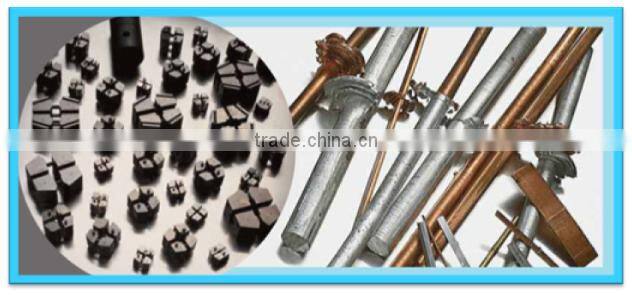

 Cold welding dies for SZ-3T( the dies on model SZ-3T and SZ-3TR are the same dimension):

 2.Cold welder Introduction:

1. Weld copper wire or aluminum wire; or weld copper wire with aluminum wire

2. No need any power, heat, only match corresponding dies.

3. Our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.

4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.

5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. And also should match four single cavity dies or two double cavity dies.

6. Our machine is compatibility with other supplier’s welders. You can use others’ welding machine with our dies; or use our dies on other supplier’s machine.

7. The tolerance of dies to wire: -1%mm+ 3%mm wire to dies tolerance.

For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires.

8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.

9. The wire can be welded:
Naked copper wire & aluminum wire, brass wire; enameled copper wire, copper clad aluminum conductor; or weld copper wire & brass wire together with aluminum wire. Plastic wires and other wires should remove surface insulation part, then welding.

Cold welding can be used to join most non-ferrous wire and strip with diameters of between 0.08mm (.003145") and 25mm (.984") copper and 30mm (1.181") aluminum.

Cold welding can be used to join dissimilar materials, such as aluminum to copper. For example, transformer manufacturers have used PWM machines to weld copper rod terminations onto the end of the aluminum winding.

Steel wire or stranded wires can’t be welded.

Those wires can be welded:

Operating video:

We will provide English & Chinese detail operting manual for better operating, though the operating of this device is quite easy.

Operating video also can be provided:

Here is all our wire cold welding machine video weblink:

SZ-2S:  https://youtu.be/AO72rnFJgzk

SZ-1A: https://youtu.be/kyXHdSVAKhQ

SZ-2T:  https://youtu.be/Lem64hFMg8o

SZ-3T:  /watch?v=UL9oXYrJsAc

SZ-3TR:  https://youtu.be/bCr21e6MzUw

SZ-158:  https://youtu.be/dPSYZr5h4yE

3. Customers all over the world:

We had exported many countries customers with good result, like South Korea, India, Sri Lanka, Indonesia, Philippines, Vietnam, Thailand, Iran, Pakistan, Turkey, Kazakhstan, Russia, Finland, Serbia, Slovakia, Egypt, Tanzania, South Africa, Colombia, Brazil, Chile, etc.

4. Advantage of Our cold welder:

*One year quality guarantee for main welding Machine. Lifetime Maintenance.

*Competitive price.

*Flexible delivery for sample and big order. Usually most not quite big orders can be delivered within 3 working days after order confirmed.

*10 years working experience for production & Research and Development.

* Certificate: CE, CCC, ISO9001-2008; exporting entitlement.

* Agents & distributors & representatives are welcome for all countries.

5. Delivery:

*For small order, we recommend by express like DHL, FedEx, UPS, etc. Large order by air, by sea, by train.

 *All welders are in stock, only need time to make welding dies.

6. Welding wires Operating process:

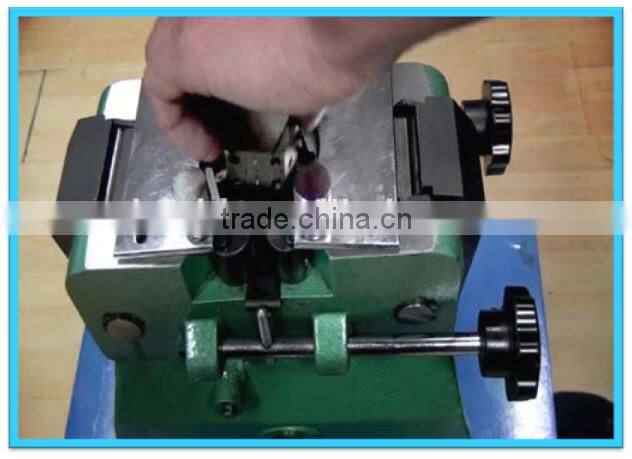

1. Install the dies:

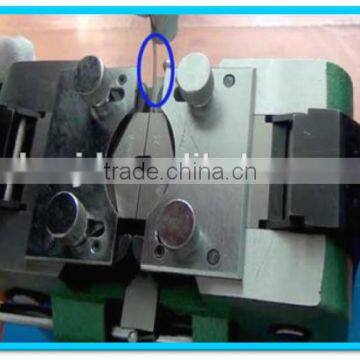

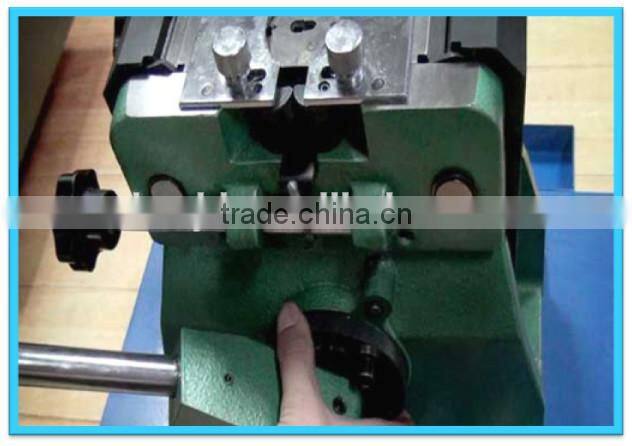

2.  Adjusting the centre joint:

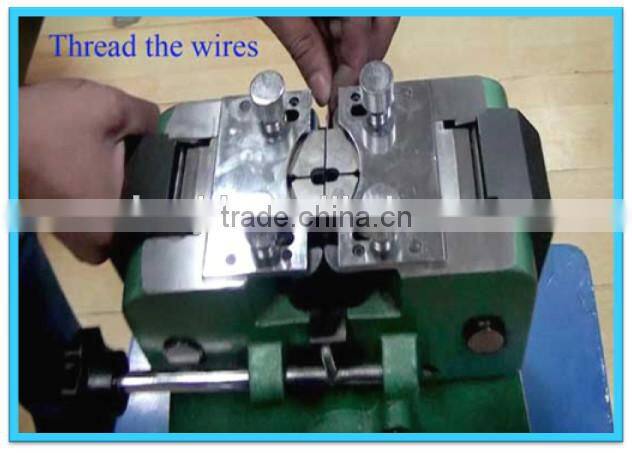

3.  Thread the wires:

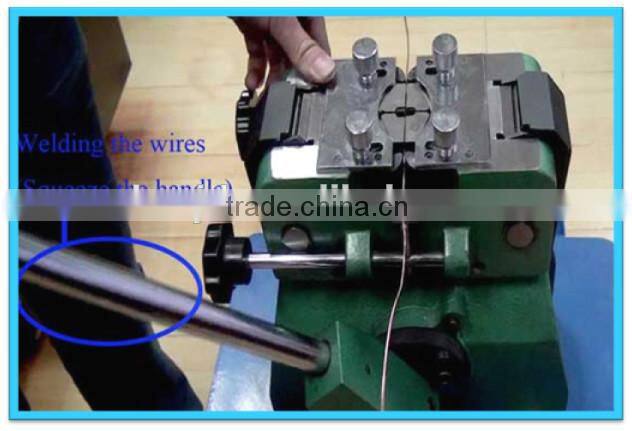

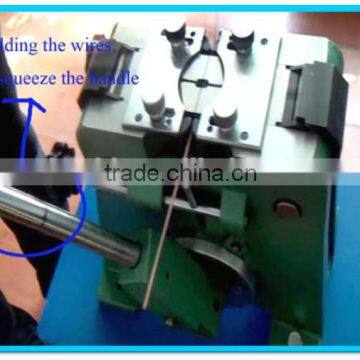

04: Welding/ Connecting the wires: ( Squeeze the machine long handle):

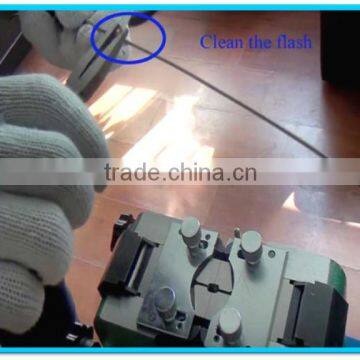

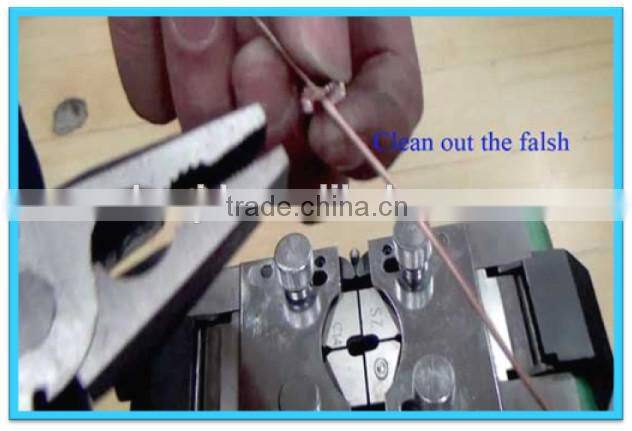

05: Clean out the flash:

06: Take out the dies

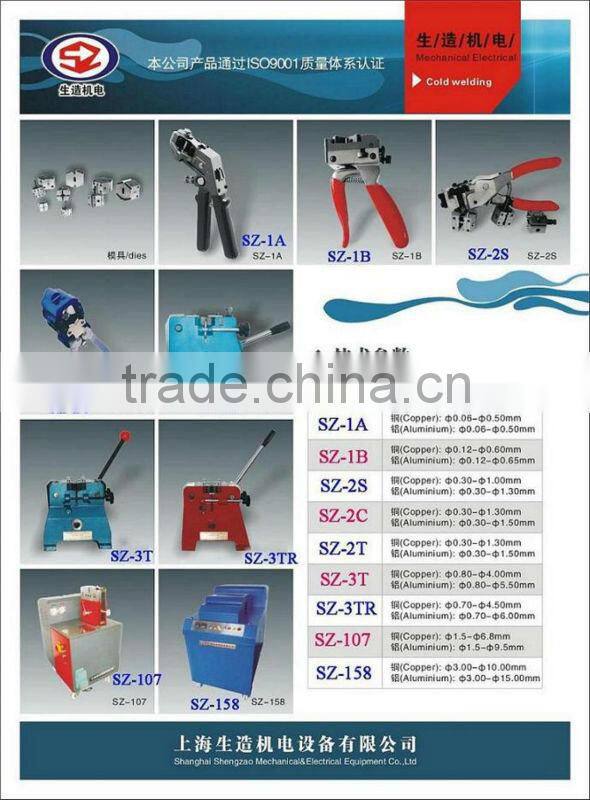

7. All cold welding list ( choose suitable machine by the wire size you need (mm) and compare the machine's welding range:
