Automatic Plastic Box Sealing and Filling Machine

Automatic Plastic Box Sealing and Filling Machine thumbnail-1
Automatic Plastic Box Sealing and Filling Machine thumbnail-2
Automatic Plastic Box Sealing and Filling Machine thumbnail-3
Automatic Plastic Box Sealing and Filling Machine thumbnail-4
Automatic Plastic Box Sealing and Filling Machine thumbnail-5
Automatic Plastic Box Sealing and Filling Machine thumbnail-6
Automatic Plastic Box Sealing and Filling Machine photo-1
Automatic Plastic Box Sealing and Filling Machine photo-2
Automatic Plastic Box Sealing and Filling Machine photo-3
Automatic Plastic Box Sealing and Filling Machine photo-4
Automatic Plastic Box Sealing and Filling Machine photo-5
Automatic Plastic Box Sealing and Filling Machine photo-6
US$ 3,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Packaging Type:
Bottles, Cans, Case, Other, Bottles, Cans, Case, Box
Contact Supplier Request Quote Chat Now
Seal Pack Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Food, Medical
Packaging Type Bottles, Cans, Case, Other, Bottles, Cans, Case, Box
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Mechanical
Voltage Customizing
Power Customizing
Place of Origin Taiwan, China
Brand Name SEAL PACK
Model Number SP-5301A
Dimension(L*W*H) 3,000*1,000*1,800 mm
Weight 1000 KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic plastic box sealing and filling machine
Continuous Sealing via Automatically

Automatic plastic box sealing and filling machine

Product Description
Productivity

2,400~24,000 pcs per hours(depends on number of Molds )

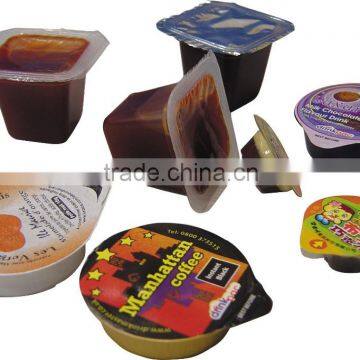

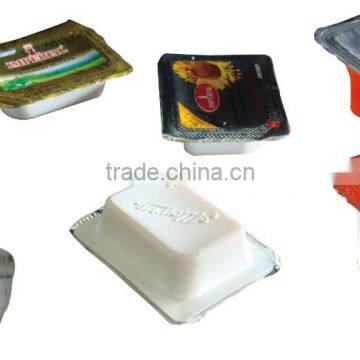

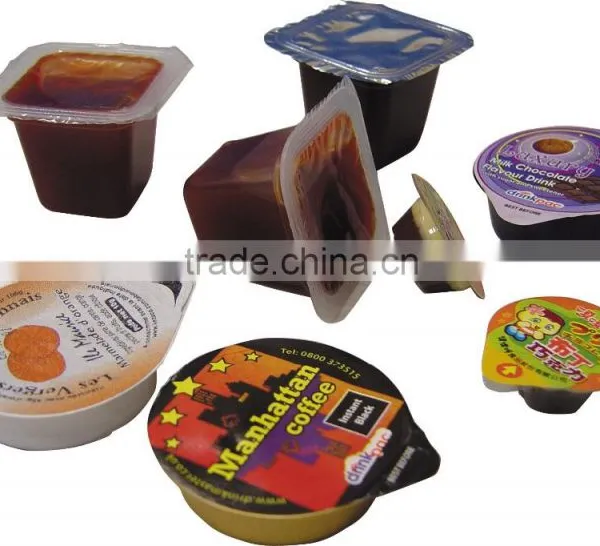

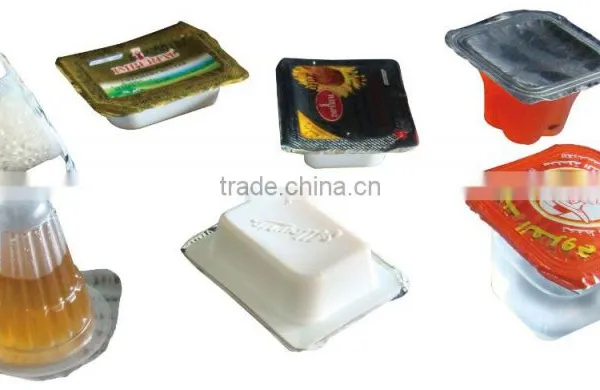

Product Water/Juice/Yogurt/Sauce/Mayonnaise/Jelly/Jam/Powder
Cup/Box DiameterDepends on Customer's choice
Cup/Box VolumeDepends on Customer's choice
Sealing Film Material

Plastic Film in Roll with pattern/company name & logo

Aluminum Foil Lid

Power SupplyDepends on the power you use

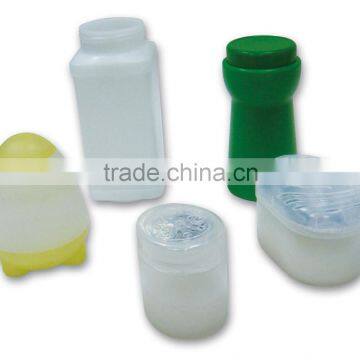

Container Material

PP/PE/PET

Polypropylene, PP (100~140℃)

High Density Polyethylene, HDPE (90~110℃)

Polystyrene, PS (70~90℃)

PET(60~85℃)

PVC (60~80℃)

Bottom MouldsAnodized Aluminum Alloy
Air Consumption 280 Liter/ min
Machine Dimension3000 x 1000 x 1800 mm (L x W x H) Depends on production quality and optional device
Control Panel

A Type

  • Traditional Switches and Buttons for simple operation
  • Automatic plastic box sealing and filling machine

B Type

  • Equipped with (HMI-Touch Screen), Brand: CONCH, Taiwanese brand
  • Automatic plastic box sealing and filling machine

Common Part

  • Variable speed adjustment via speed controller arrange with inverter
  • Additional emergency stop switch for safety protection
  • Equipped with a three-color warning light, it gives a clear warning in case of malfunction of electric control or pneumatic system
Automatic Filling System
  • Ball valve: can be adjusted individual manually
  • Butterfly valve: can be adjusted individual manually
  • Piston device: can be adjusted together/individual manually
  • Re-feeding pipe arrange with one-way valve for connect with the re-feeding pipe (This device should be prepared by piping manufacturer)
  • Liquid level control refill system (Customer should provide refill pump)
  • Auger Filling System for powder filling
  • Automatic plastic box sealing and filling machine
Sealing Film & Sealing System
  • Plastic Reel Film Storage Device
  • Photocell Sensor for Film Pattern Mark
  • Waste Film Automatic Collecting Device
Storage Tank
  • Depends on Filling volume and  Productivity
  • jacketed hopper (with thermal keeping material)
  • jacketed hopper (arrange with hot-water recycling device)
Automatic Sealing System
  • Stainless knives
  • Film sensor for detect the film when it ran out, the machine will stop automatically
  • Protect cover is available
  • Independent temperature controller for each mold
    • In case of malfunction occurs in heating system, the indication lamp lights up individually, permitting operator to fast find the problem heating system
  • Automatic Pressing System
    • Pressing the film after heat sealing let the film sealed tighter with cup
  • Heating Sealer
    • Independent temperature controller for each sealing mold
    • Automatic Correcting Film Pattern Mark System
    • Collocating with a photocell sensor of film pattern mark
Automatic Film Cutting System
  • Molding Cutter
  • After cutting for the film, there will be 1.5~2.0 mm left film outside of the cups
Automatic Out-Feeding System
  • Mechanical Cam Type
  • Vancume sucker out feeding system
  • Drop-Down Type
Automatic Dropping Cup System
  • Cup should meet the cup falling condition
  • Sucking rubber device for falling cups is available
  • No Cup No Filling Design
  • Fitted with Cup sensors after cup dropping system
  • Once the bottom mold lacks cup, machine stopped automatic and re-feed cup manually
  • Cup Rinsing System
    • Automatic plastic box sealing and filling machine
Machine Frame

Stainless Steel in accordance with sanitation standard / Aluminum Extrusion

Driving Gear and ChainMade by Stainless Steel (SUS#304)
Springs and ScrewsMade by Stainless Steel (SUS#304)
Driving Gear and ChainMade by Stainless Steel (SUS#304)
Pneumatic PartsISO applied FESTO
Others
  • Inverter: TECO, Taiwanese brand
  • Roller Gear Cam Unit: TAN TZU, Taiwanese brand
  • Solid State Relay: wired connection with temperature for protection, CONCH, Taiwanese brand
    • Locating and positioning accurate with stable
  • Temperature Controller: CONCH, Taiwanese brand
    • Independent temperature controller for each mold
    • In case of malfunction occurs in heating system, the indication lamp lights up individually, permitting operator to fast find the problem heating system





Optional Devices

Empty Cup De-Dust Vacuum System



  • 2 HP Blower
  • Vacuum system: precision filtration system
  • 1st Filter: Filtrate precision scale_0.5μ;  Winding capacity: 1,641L/min
  • 2nd Filter: Filtrate precision scale_0.01μ; Winding capacity: 1,217L/min
  • Note: Above filtration system has maximum 0.5 inch diameter of inlet and outlet
  • Maximum pressure: 21Bar
  • Temperature withstand up to 79℃
  • Seal up material: BUNA-N-VIYON
  • Body material: SS#304 stainless steel
  • Air compressor cylinder
  • Dust Vacuum Capacity of Empty Cup
  • Capacity: 4800 pcs/hour, 4 pcs/row*20 cycles/min*60 min
  • Transparent Tape (non-wet & non-sticky): Length 5 mm x Width 5 mm x 3 pcs (max)
  • Paper: Length 5 mm x Width 5 mm x 3 pcs (max)
  • Hair: under non-electromagnetic of empty cup, hair length below 50 mm x 5 pcs
  • PP plastic particles: 5 mm3 x 3 pcs (max)
  • Dust (few)
    • Automatic plastic box sealing and filling machine

Film UV Sterilizer

  • UV Lamps: Made In USA
  • Sterilization Dosage Reaches : 30,000uw.sec/cm2
  • UV Lamps: PCS High Efficiency
  • Sterilization Rate of E. coli: 99.99%
  • Sterilization Rate of Staphylococcus Aureus: 99.99%
  • Sterilization Rate of Pseudomonas aeruginosa: 99.99%
  • No Contamination, No Residues, No Radiation
  • UV lights guaranteed 9,000 hours of continuous use
  • The housing cover is made of stainless steel
  • The device has the UV abnormal warning alarm
    • Automatic plastic box sealing and filling machine
Automatic Clean In Place (CIP) Self-CIP system
  • All the pipe and tank which made by stainless steel SUS#304
  • Includes a 100 liter hopper for recycling cleaning liquid
  • Includes 1 set of recycle pump (1HP)
  • Includes a spurt ball for cleaning in hopper
  • Buyer needs to prepare the CIP liquid
    • Automatic plastic box sealing and filling machine

 Date Coding Device

  • Printing Heads: pcs
  • Carbon Ribbon
  • Hot heating the carbon ribbon for printing the expiry date/lot number
  • Control Chassis & Frame



Dust Proof around whole machine is available



  • Start from cup falling system, end before sealing system
  • Besides the sealing system will be tempered glass
  • Can be designed under the CE certificated grade

Product Collecting Disc

  • Collecting Table (SUS):Φ1000 mm x H800 mm
  • Frame: aluminum extrusion
  • Metal sheets made by stainless steel
  • Rotating Speed can be adjusted

Inkjet Printer

  • To print the mfg date and lot number on the packaging via ink
  • Brand: DOMINO or LINX, English brand
  • Frame: aluminum extrusion




Packaging & Shipping
Price termFOB Taiwan Port
Payment50% T/T down payment and 50% T/T before shipment
Shipment80~90 days after confirm the order, received 50% T/T down payment, and the correct sample cups/plastic film
Factory acceptance test costIt should be shouldered by the buyer
Delivery DateEstimate before confirm order
Ship viaSEA SHIPMENT
PackingExport Standard Packing (Fumed Wooden Crate)
Validity 30 days after issuing day



Company Information
Automatic plastic box sealing and filling machineAbout Sealpack Technology

Seal Pack Technology Co., Ltd. is a reputed manufacturer for a variety of automatic filling & sealing packaging machines. For over 30 years, Seal Pack has earned a reputation for supplying packaging machines that fully meet our customer’s requirements.



No matter if your products are solid, liquid or granule, Seal Pack has the machine to meet your packaging requirements. In addition, Seal Pack also offers complete plant equipment.



From project planning to machine running tests at the customer’s work-site, Seal Pack provides a comprehensive experienced technical service. This ensures that Seal Pack machines will give you the high production, secure sealing finish, with ease of operation and a minimum maintenance.



Based on our tradition of continuous research and development, Seal Pack’s machines have designed by our highly experienced staff.Our machines integrate many fine features in their mechanics and control system, to provide a higher standard of running performance



Each machine is carefully inspected and tested for static and dynamic performance to ensure maximum dependability during operation, higher production speeds and more cost effective packaging operations.



Automatic plastic box sealing and filling machine



Production Flow

Automatic plastic box sealing and filling machine



Certifications

Automatic plastic box sealing and filling machine



Related Products
CategoryBench TypeRotary TypeIn Line Type
Production 300~600 pcs/hour900~ 2400  pcs/hour 2400~24000  pcs/hour
Quick LinkAutomatic plastic box sealing and filling machine    Automatic plastic box sealing and filling machine  Automatic plastic box sealing and filling machine
