auditorium sound insulation wooden acoustic panel
- 200000 Square Meter / Square Meters per Month
- Guangzhou Shenzhen Foshan
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Wall Coating | Place of Origin: | Guangdong, China | Brand Name: | TIANGE |
Model Number: | 13/3 28/4,18/3,59/3 | Function: | Fireproof, Heat Insulation, Moisture-Proof, Mould-Proof, Smoke-Proof, Sound-Absorbing, Soundproof, Waterproof |
Packaging Details
Standard paper carton or customized packaging
Product Description
auditorium sound insulation wooden acoustic panel
________________________________________________________________
1,Product Description
Product Description
Reverberate sound acoustic panel used medium density mold- proof, fireproof, environmental ecopine
wood as base material, processed by full automatic computer controlled equipment.be made to
multirole structures product, not only have good sound absorbing effect, but also looks great on visual.
Model No : 13/3. 14/2. 28/4. 29/3. 59/5. 60/4
Size: 2440*128*15/12/18mm

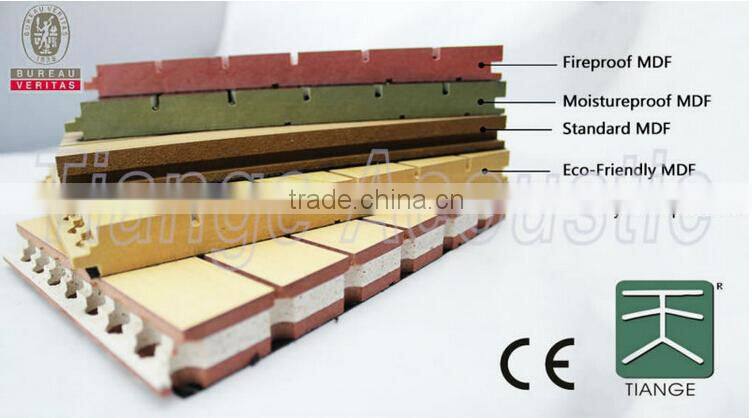

Base Material: Standard/Eco-friendly/Flame retardant MDF,Carbon fiber board
Eco friendly: Meeting National standards
Finishing: melamine,wood veneer,fireproof,print,leather
Color: Refer to color chart
Main features: Excellent noise reduction and sound absorption performance
Scope of application: Music halls, home theaters, HIFI rooms, Recording rooms
Slot distance: 124/60/30/29/14/9/6mm
Slot diameter: 5/4/3/2mm
Wall soundproof Groove Wooden Acoustic Panel
Structure
59/5 | 60/4 | 2 panels with 1 groove |
40/3 | 38.5/4 | 3 panels with 2 grooves |
28/4 | 29/3 | 4 panels with 3 grooves |
18/3 | 17/4 | 6 panels with 5 grooves |
13/3 | 14/2 | 8 panels with 7 grooves |
8/3 | 7/4 | 16 panels with 15 grooves |
Picture shown as below is model of each panel. 13/3 means the each slat panel size is 13,
groove size is 3, and there is 8 slat and 7 grooves, The same as the picture below.
MDF reverberate sound acoustic panel backside tissue
It's black, sticked on the back side of the panel; there have sound abosrbing felt and non-woven
fabrics can be selectable, it have fireproof and sound absorption function.
Groove Wooden Acoustic Wall Panel
2,Certifications
Certifications

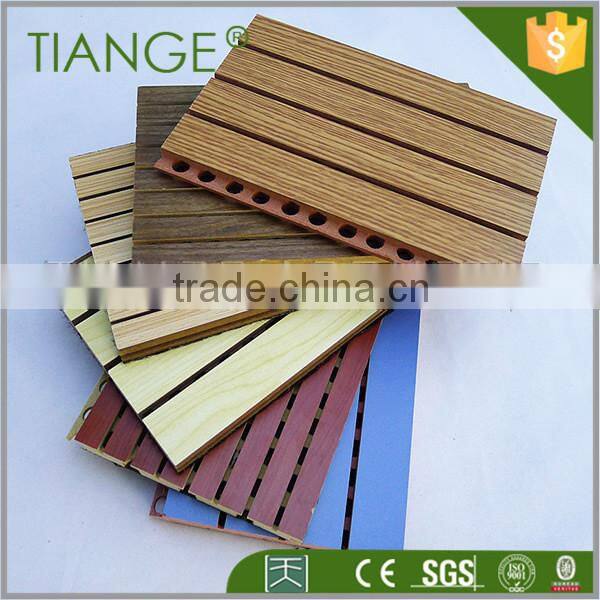

Product color
Melamine, veneer, fireproof plate and metal finish etc. Following are part of our color chart.
Auditorium Wall soundproof Groove Wooden Acoustic Panel
orium Wall soundproof Groove Wooden Acoustic Panel
Sound Coefficient
Besides the high sound absorbing test, we have passed the Eco-protection test and fireproof test, to
ensure you to get the top quality product, and enjoy a safe, comfortable and low carbon emission way of life.

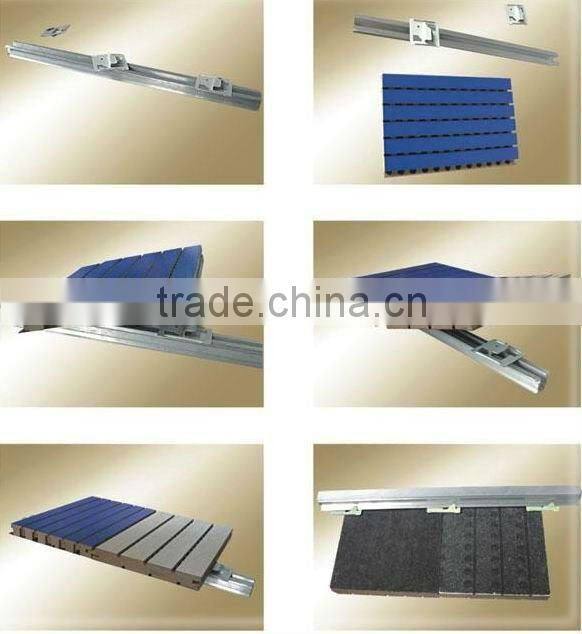

Installation method
Can use stapler to stapes it on the wooden keels at backside, or use professional aluminum keels and
fastener to fix it on the wall.
3D MDF Studio Auditorium Wall soundproof Groove Wooden Acoustic Panel
Backside cavity of the panel will influence the performance of grooved acoustic panel's sound absorbing
effect. the following form indicate that sound absorption coefficient will increase with the bigger Cavity,
especially in Compact installation, most coefficient shows low degree, only have some sound absorption
effect in high frequency,the noise coefficient is 0.3 only.
But when the cavity increases to 50mm and 100mm, denoise coefficient is 0.75 and 0.9.For decoration,
it’s unsuitable to have big cavity to reduce the area of the house. But in the view of sound-absorption,
Even if the cavity increases to 100mm and 200mm, only the soundabsorption coefficient of low frequency
will improve a little, the sound absorption coefficient of high frequency is just the same, the noise coefficient
is 0.9.

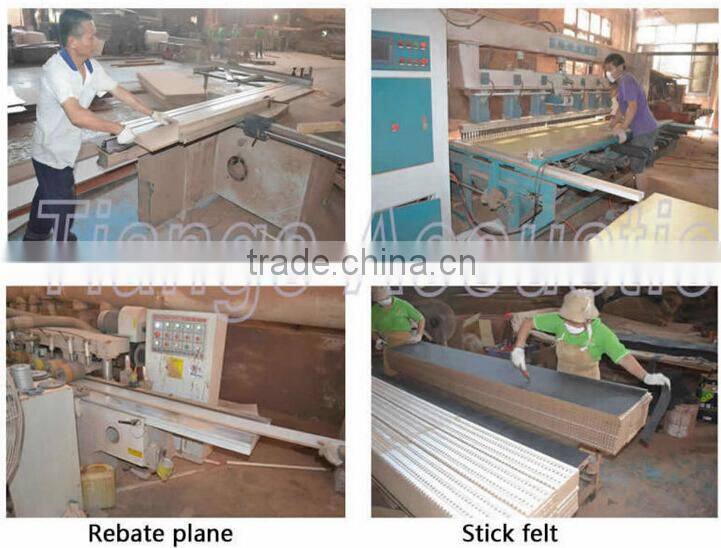

Production line and work flow
3,Packaging & Shipping
Groove Wooden Acoustic Wall Panel
Packaging, delivery and sea transportation

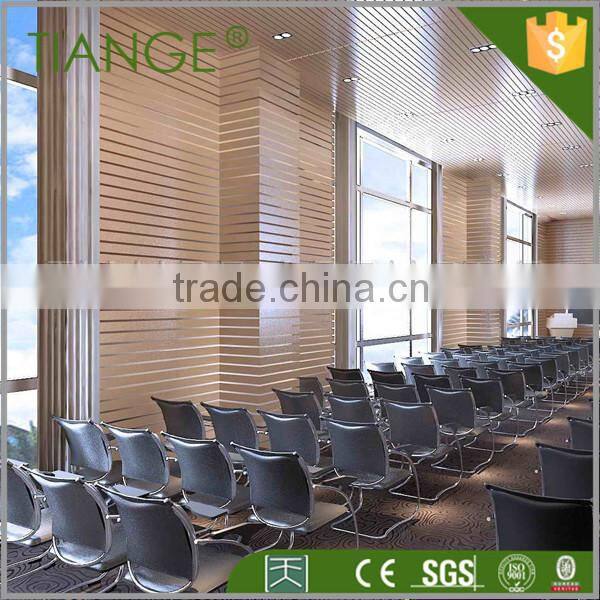

4,Application
Application
It's widely used at huge stadium, cinema, meeting room, office room, music hall, theater and work shops
etc. any places where sound absorption can use this products.
3D MDF Studio Auditorium Wall soundproof Groove Wooden Acoustic Panel
5,Our Services
Groove Wooden Acoustic Wall Panel
Service
- 24 hours prompt reply by email or telephone or messenger.
- Standard size have stock, immediately delivery once your purchase
- 10 days delivery containers for out of stock Groove Wooden Acoustic Wall Panel .
- Can combine containers with multiple insulation products for your different demand
6,Company Information
Company information
Groove Wooden Acoustic Wall Panel
FAQ
1.What is the MOQ for the Groove Wooden Acoustic Wall Panel?
Our MOQ is 200m2 . but for the trial order, less quantities can be ok if the
fabric you choose available
2.Is this material fireproof or not ?
The fabric acoustic panels is made of the owners corning glass wool board
which is fire proof Grade A
And we can do some special process to make fireproof and water proof
3.Can I order different speical shape design for it ?
Yes, just need to tell us your requirment
4.How good for the noise insulation ? Can I use it in my room ?
Its NRC can reach 0.85. we have certificate ASTM E84, ASTM C423 ,EN717-1 ,
EN717-2 ,ROHS and BS476-5.
It normally use in opera theater, recording studio, studio, audition, and business
office, television, radio, and more Function rooms, meeting rooms
Why choose us
Reason 1 : Certificate with confidence
TIANGE INSULATION have the most certificates of insulation products of glass wool,aluminium
foil and acoustic products in whole China insulation factories.
Reason 2 : Stock sales to support fast delivery
We have the bulk of stocks which support the fast delivery for the standard size and normal products.
We can delivery with 5-10 days for the normal products .
For the un-normal products would need longer time with 12-35 days production time !
Reason 3 : Successful big project case
Our insulation and soundproof products use for many big projects and big buildings.
It is useful to let the building more energy saving more than 50% than without the insulation products!
Company Profile
Foshan Tiange Acoustic And Decor Material Manufacturer is the production base of Tianchen Industrial Group Co., Ltd. and is located in the Building Product Capital - Nanhai District, Foshan City. Our factory covers an area of more than 10000 square meters and has passed ISO9001:2008 International Quality Certificate. Our products have all kinds of different test reports, such as CE certificate, National fire-rated test report, environmental protection test report, sound absorption test report, etc., more than 30 kinds in total. We have a whole set of automatically computer controlled machines and professional technical workers to ensure our product high quality. Our output of acoustic products is more than 400000 square meters per year and our output of movable partition systems is more than 40000 square meters per year. More than 35% of our products are exported to clients from all over the world.
We have 400 square meters of showroom and offer the services of inside acoustic consultation and design, project denoising handling, acoustic product installation, etc. Our company is promoting our brand of "TIANGE", which is very famous in the acoustic industry and enjoys very high public praises among consumers. Based on the tenet of "Improving Acoustic Environment for Human Life and Building Elegant Space", we are always trying to offer better quality products and services in the acoustic industry. We have got popularization among acoustic professors and famous decoration companies. Our brand is appointed by many main projects and our products are sold to more than 30 countries and regions in the world. In the future, we will put more concentration on product quality, keeping cooperative consent and improving and enjoying profits together with all old and new clients.
