Ruian hongyin factory plastic forming machine

Specifications

1.this plastic forming machine is fully automatic
2.suitable for BOPS, PS,PET,PVC material
3.main products: plastic tray

HY-510/580 Fully automatic thermoforming machine

I. Introduction of Machine



HY-510580 plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting info one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.



II. Application Area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.



III. Main Parameter



The parameter of forming machine



1.Forming area	510×580mm
2. Forming depth	100mm
3.Sheet thickness range	0.15-1mm
4.Sheet roller diameter	710mm
5.Cutting length	6350mm
6. Air pressure	0.7Mpa
7.Water consumption	10 Liters/min(15-20)
8. Air consumption	2200 Liters/min
9.Production Speed	600-1200 recyles/hr.
10. Voltage	AC380V±15V,50HZ
11.Preheating power	4kw
12. Mould plate heating power	6kw
13.Heating plate power	15kw
14 Usable material	BOPS,HIPS,PS,PVC,PET
15 Weight	2500kg
16 Dimensions (L ×W×H)mm	2750×1410×2350



IV. Machine Picture

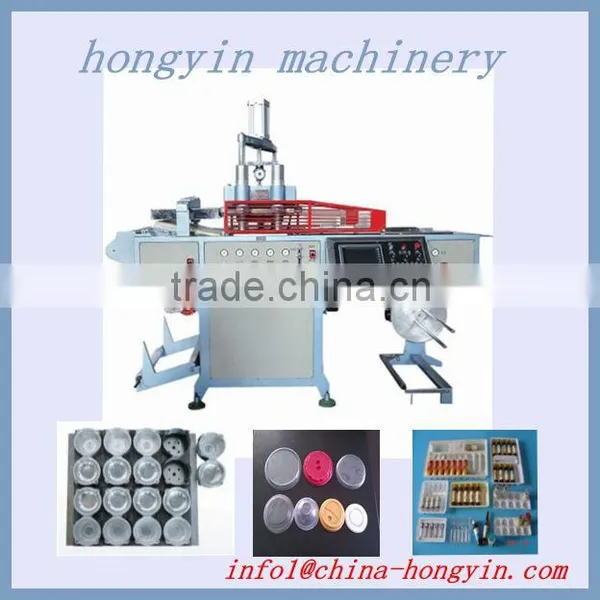

1. HY-510580 main figure of plastic thermoforming machine.











2. HY-510580 plastic thermoforming machine workshop.











3. Complete production line for plastic forming machine







4. HY-510580 thermoforming machine products samples.











HY-510/580S (stacker)



















Main Technical Parameter:



Rating Power	Capacity	Height	Dimension	Weight
2 (KW)	10-12 time/min	According HY-510/580	1.7×2.2×2.8(m)	500(kg)







 Auxiliary Equipment of Thermoforming Machine



No.	Name	Pictures	Parameter
1	LG-3/8 screw air compressor		Capacity: 3 m³/min
			Working Pressure:0.8Mpa
			Motor Power:18.5kw
			Dimension :1.42*0.85*1.1m
			weight:600kg
			Usage: air supply
2	Air tank		capacity: 1 m³
			Dimension :1.05*1.05*2.4m
			Usage: air storage
3	1.5T Hydraulic Lifter		Capacity :1.5T
			Max height :1.6m
			Dimension :1.38*0.8*2.0m
			Weight : 350kg
			Usage: This machine just be used for unload the sheet roll and change the moulds.











Packaging & Shipping







IV. About the wooden packing of plastic forming machine.



Above this part need 20 feet container to packaging.



















Our Services



  IV. About Ruian Hongyin Machinery Factory Service.
1. Purchase Service
Ruian Hongyin Company have a professional and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shown to us will be appreciated, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.











Company Information



About the Ruian Hongyin machinery Factory











Hongyin factory founded in 1985, Ruian Hongyin Machinery Factory is a manufacturer of plastic production and processing machinery.



Our factory currently covers an area of 8, 000 square meters of land, 5, 000 square meters of which are utilized by workshops.



The products we have done:



Automatic plastic BOPS thermoforming machine, semi-automatic plastic forming machine, plastic vacuum forming machine, In line cutting machine, cup forming machine, sheet extruder, three sides folding machine, sealing machine, cooling tower packing forming machine, laminating machine, EPE foamed film production line, etc.







Export market:



North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe.







Welcome to vist our products, if you are interested in which machine please feel free and contact us .
