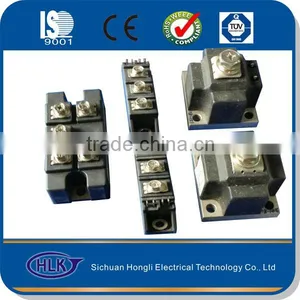

High quality rectifier thyristor modules
Product introduction
1.These modules are electrically isolated from the base plates, 2,500V AC voltage
2. International standard encapsulation
3. Excellent temperature characteristics and power loop capability
4. All modules below 350A use forced air cooling; the modules above 400A can use either air cooling or water cooling
5. Small volume,lightness and easy to install and maintain .
Typical applications
Specifications
IT(AV) |
VDRM |
ITSM |
VTM |
IGT |
VGT |
Dv/dt |
di/dt |
Rjc |

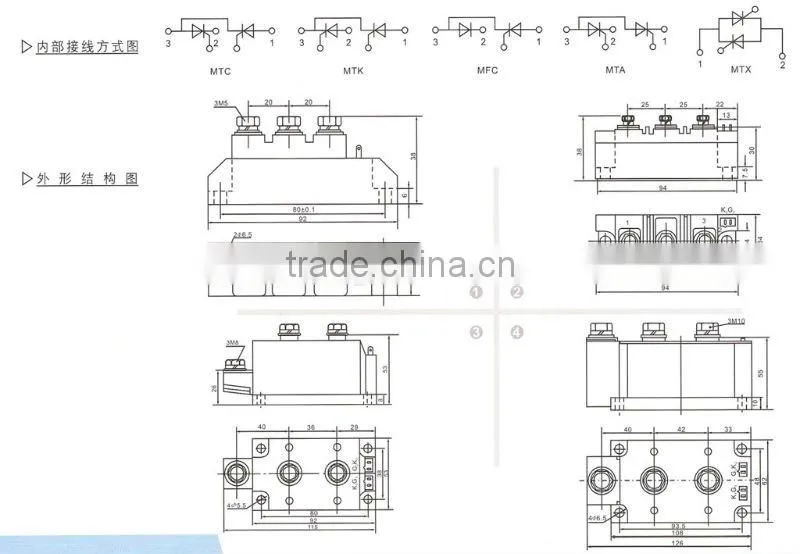

figure |
IF(AV) |
VRRM |
VFM |
|||||||
(A) |
(V) |
(A) |
(V) |
(mA) |
(V) |
(V/us) |
(A/us) |
(°C/w) |
|
90 |
1200~ 2000 |
1200 |
1.82 |
30~ 250 |
0.9~ 2.5 |
500 |
50 |
0.30 |
1 |
160 |
1200 |
1.80 |
500 |
50 |
0.18 |
2 |
|||
200 |
2500 |
1.76 |
500 |
50 |
0.16 |
2,3 |
|||
250 |
3200 |
1.72 |
500 |
50 |
0.13 |
3 |
|||
300 |
3800 |
1.68 |
500 |
50 |
0.10 |
3 |
|||
350 |
4400 |
1.59 |
500 |
80 |
0.08 |
3,4 |
|||
400 |
5000 |
1.55 |
500 |
80 |
0.06 |
4 |
Production Status
Quality Assurance
About packaging
Shipping Term
1.We arrange shipment within three working days after confirming buyer's payment.
2.We usually ship via Global express company: UPS/DHL/TNT/EMS/Fedex.if you have better express service comapny, Pls tell us then. We'll choose your preferred ways. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the express company .
If you have any question, please free contact us via E-mail or Trademanager !
