Specifications

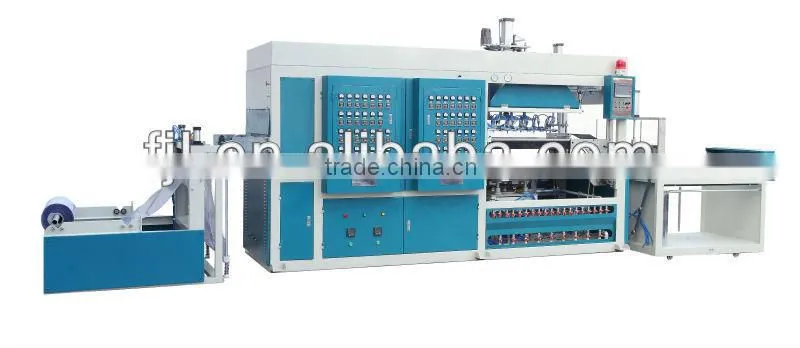

This machine adopts advanced PLC controlling system;it can be used for the forming of disposable plastic products.
Major Construction Features:
1. This machine adopts advanced PLC controlling system; it can automatically finish a series of
tasks including feeding, heating, thermoforming, cooling, drawing off patterns, cutting and stacking.
2. It’s equipped with a feeding device of a precision retarding electric machine, and geared by a
double-lined needle-point chain, this machine can achieve both accuracy and stability during
high-speed operations; what is more, it is also easy to make quick adjustments so as to make
good use of the plastic sheets to reduce waste.
3. Equipped with a unique divided temperature control system and a precision remote infrared
ceramic heater, this machine can get the most stable and even temperature, and at the same time
achieve electricity saving.
4. This machine also possesses some special features: it can be manually pre-started, the
switch console can be moved up and down according to needs, it can achieve a delaying vacuum
state or a vacuum state for a second time, and it can be put on patterns for a second time,
also it can draw off patterns through shaking. All these special features can help to accelerate
the forming speed and ensure the quality of the products
5. The major electronic devices and pneumatic components are manufactured abroad,
which can ensure the stability, safety and durability of this machine

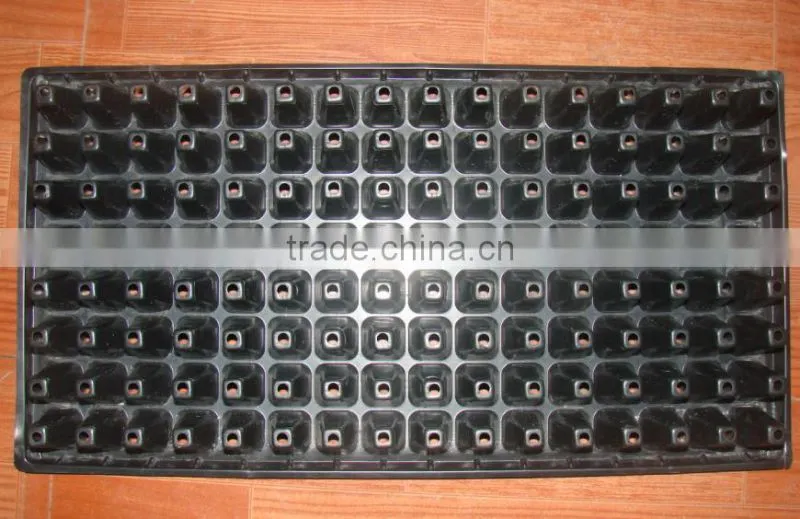

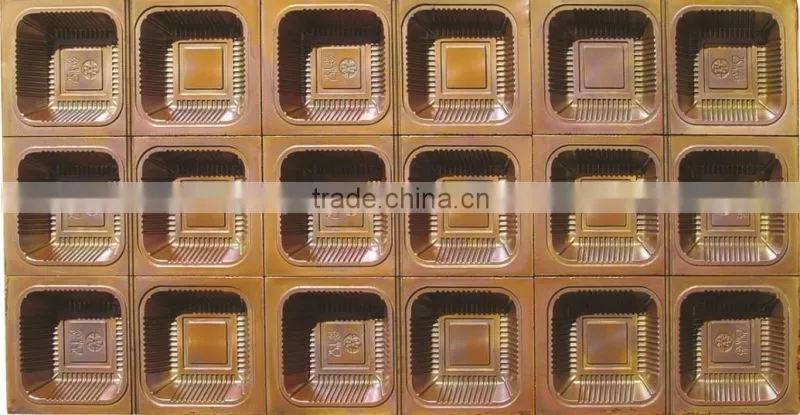

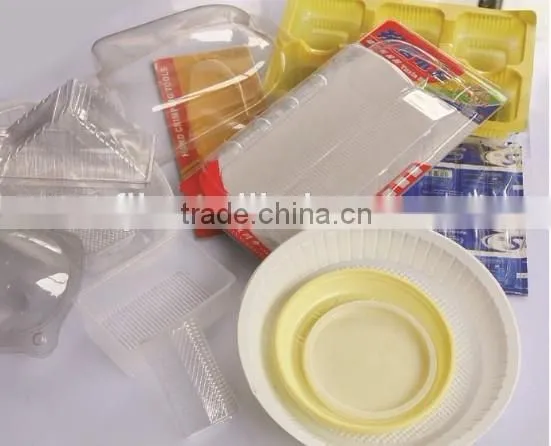

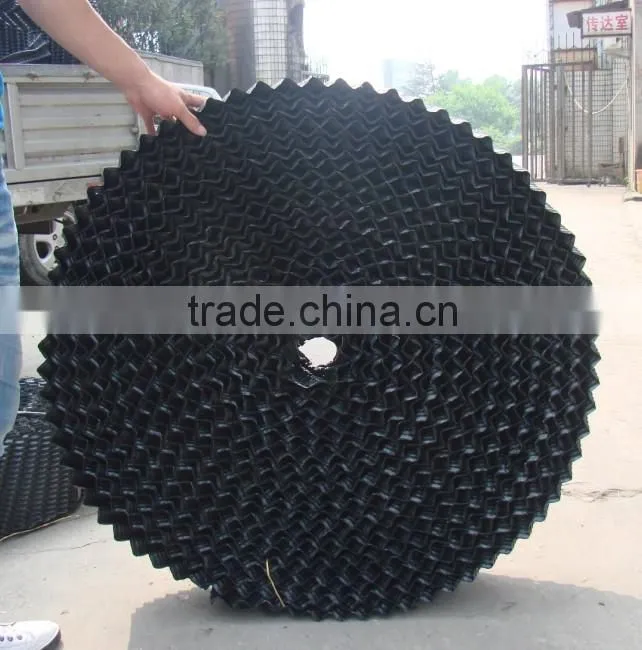

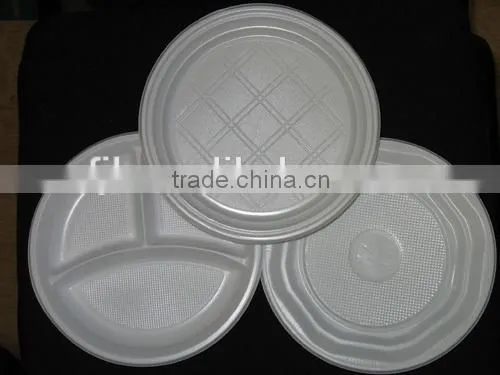

Samples on plastic vacuum forming machine:

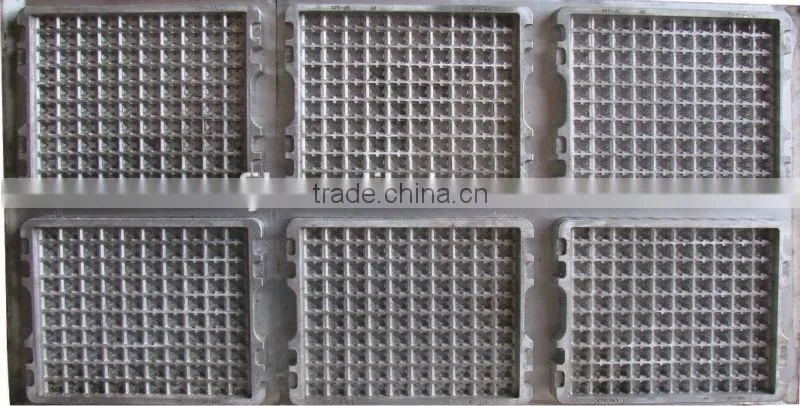

Molds on vacuum forming machine:
Main technical parameters:
Model |
FJL-700/1200ZK-A |
FJL-700/1200ZK-B |
Sheet Width |
510~740mm |
|
Sheet Thickness |
0.1~1.2mm |
|
Forming Length |
700~1200mm |
|
Forming Width |
480~700mm |
|
Max. Forming Depth |
Negative Mould ≤ 180 mm |
|
Positive Mould ≤ 200mm | ||
Used Sheet |
PP, PS, HIPS, PVC,P ET Sheet Roll |
|
Running Speed |
3-12 Moulds/Min |
|
Mode of cutting arrangement. |
Off Mould |
|
Heating arrangement |
Top Heating with IR Ceramic Heaters |
Top + Bottom |
Heating Power |
20KW |
35KW |
Vacuum Ration |
100 m3/h |
|
Air Consumption |
1.2 m3/h |
|
Water Consumption |
0.6 ~ 0.8 m3/h |
|
Power Supply |
380/220V,50Hz, Tri-phase, Four Wire |
|
Overall Dimension |
7.8mX1.4 mX2.2m |
|
Weight |
3.0T |
3.2T |
1.Machine installation:
We can send technicians to customer's factory to help adjust and install machines.
2.Guarantee time and after-sale service:
Guarantee time of our machine is one year.Within guarantee time,if there is some sparts broken or damaged not caused by the human factors,we will send it to customers free of charge.We have excellent after-sale teams to provide this service
Machines can be packed in wooden case and plastic film.It is up to customers' requirements.
Honor results from the heart, each certificate is the fruit of Fuxinlong people's hard work and innovative spirit.Each honor anr hard won, we will cherish, as always, to provide customers with high quality equipments and good after-sales service.
If more questions,freely contact Sarah Zhao(Ms):
Skype:fuxinlong01 Tel:+86-18358758585
