Help Center2014 FJL-700/1200ZK-A Automatic Plastic Plates Vacuum Forming Machine
Related Products
-
2014 FJL-700/1200ZK-A High Speed Automatic Plastic Eggtrays Vacuum Forming MachineUS$ 24,300 - 33,500MOQ: 1 Set -
EPS Foam Hi-speed Eps Foam Forming MachineUS$ 40,000 - 60,000MOQ: 1 Set
-
2014 Plastic Cup Production LineUS$ 1,000 - 200,000MOQ: 1 Set
-
2014 Plastic Blister Production LineUS$ 1,000 - 200,000MOQ: 1 Set
-
2014 Hi-speed High Quality Plastic Vacuum Forming MachineUS$ 20,000 - 25,000MOQ: 1 Set
Specifications

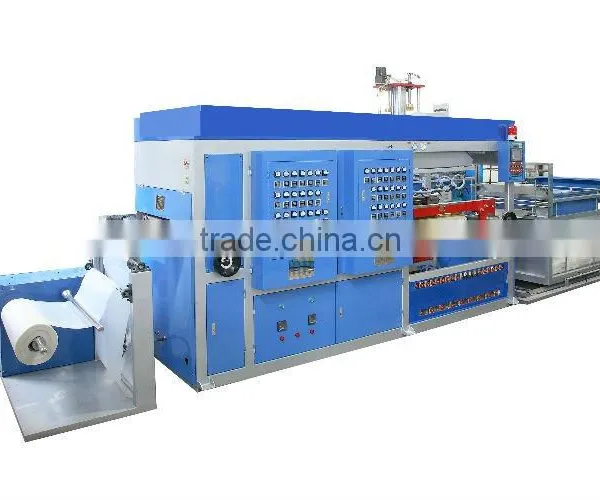

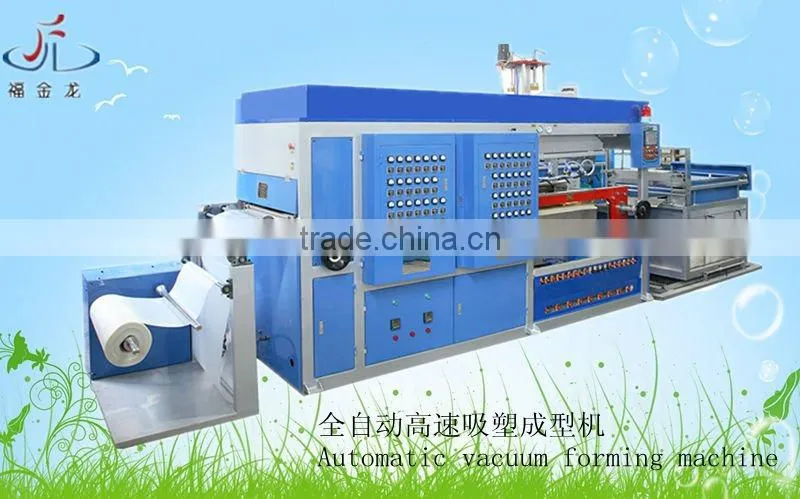

Automatic vacuum forming machine1.PLC controlling system
2.heating position: top heating
3.Power:20kw
Usage
It mainly to produce disposable plastic fast-food containers, bowls, plates, food container such as cake boxes, articles of daily use and etc with PVC, PS, PET, PP sheets
The FJL-700/1200zk series vacuum forming machine are suitable for processing those reeling sheets including PP. PS. HIPS. PVC. PET etc. under various specifications, it can be used for the forming of disposable fast-food containers, instant noodle bowls, western dinner plates, food coverings (such as sugar boxes, cake boxes and etc), articles of daily use, hardware coverings, children’s toys and trays for raising seedlings of rice, vegetables and other plantations.
I.Main Technical Parameter
| Model | FJL-700/1200 ZK-A |
| Approximate Forming Area | 700 x 1200 mm |
| Running speed | 3-12 moulds / min |
| Forming width | 510~ 740mm |
| Mode of cutting arrangement. | Off-mould. |
| Sheet thickness | 0.1 -1.2 mm |
| Material | PP,PS,PVC,PET |
| Max. Forming depth | Negative Mould ≤ 180 mm |
| Positive Mould ≤ 200mm | |
| Heating arrangement | Top heating with IR Ceramic Heater |
| Total Heating Power | 25KW |
| Temperature Controller & Thermocouple. | PID , K-Type |
| Power supply | 380/220V ,50HZ , 3phases,4 wires |
| Dimensions | 7.8 X1.4 X 2.2 (m) |
| Weight | 3.0 T |
II.Major construction features
1. The machine adopts PLC control system to make the machine working more reliably.
2. The machine can achieve both of accuracy and stability during high-speed operations, .
3. Equipped with a unique divided temperature control system and a precision infrared ceramic heater
4. The major electronic devices and pneumatic components are manufactured abroad,
5. Work stability, safety and simple operation
This machine adopts advanced PLC controlling system, it can automatically finish a series of tasks including feeding, heating, thermoforming, cooling, drawing off patterns, cutting and stacking.
It’s equipped with a feeding device of a precision electric machine, and geared by a double-lined needle-point chain, this machine can achieve both accuracy and stability during high-speed operations; what is more, it is also easy to make quick adjustments so as to make good use of the plastic sheets to reduce waste.
Equipped with a unique divided temperature control system and a precision remote infrared ceramic heater, this machine can get the most stable and even temperature, and at the same time achieve electricity saving.
This machine also possesses some special features, the switch console can be moved up and down according to needs, it can achieve a delaying vacuum atate or a vacuum atate for a second time, and it can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to accelerate the forming speed and ensure the quality of the products.
The major electronic devices and pneumatic components are manufactured abroad, which can ensure the stability, safety and durability of this machine.

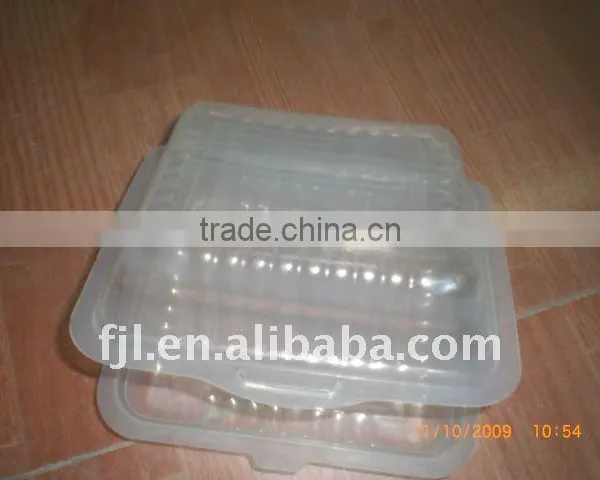

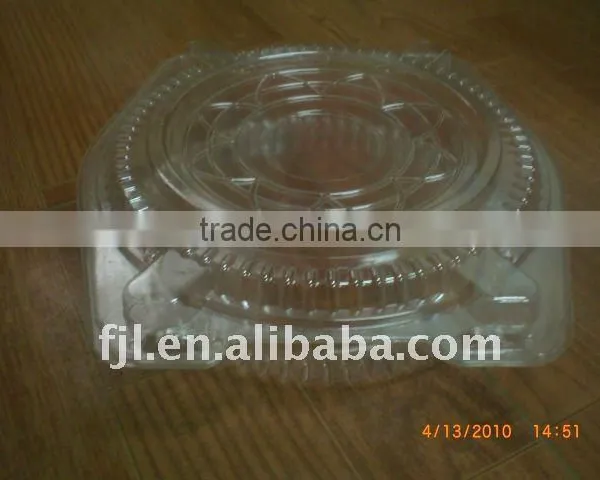

III.Products sample
IV.Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,for example , Sweden, Romania,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.
V.Certification
VI.Our advantage
Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
Note:We can customize the machine according to customer request.
