Specifications

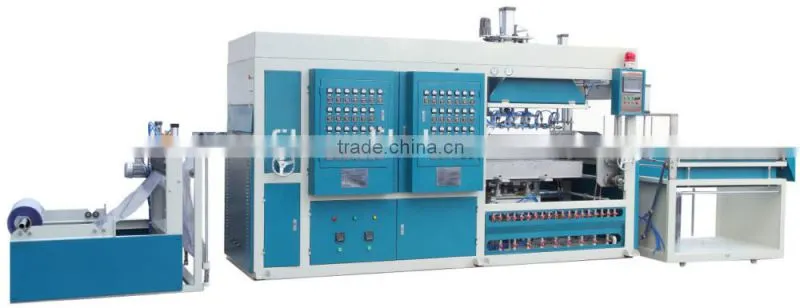

This machine adopts advanced PLC controlling system;it can be used for the forming of disposable plastic products.FJL-700/200ZK-B Hi-Speed Vacuum Forming Machine
Usage: This machine is used for forming various kinds of disposable fast-food containers,instant noodle bowls,western dinner plates,food coverings(such as
sugar boxes,cake boxes and etc),articles of daily use,hardware coverings,
Major Construction Features:
1. This machine adopts advanced PLC controlling system; it can automatically
finish a series of tasks including feeding, heating, thermoforming, cooling,
drawing off patterns, cutting and stacking.
2. It’s equipped with a feeding device of a precision retarding electric machine,
and geared by a double-lined needle point chain, this machine
can achieve both accuracy and stability during high-speed operations;
what is more, it is also easy to make quick adjustments so as to make good
use of the plastic sheets to reduce waste.
3. Equipped with a unique divided temperature control system and a precision
remote infrared ceramic heater, this machine can get the most stable and even
temperature, and at the same time achieve electricity saving.
4. This machine also possesses some special features: it can be manually pre-started, the switch console can be moved up and down according to needs, it
can achieve a delaying vacuum state or a vacuum state for a second time, and it
can be put on patterns for a second time, also it can draw off patterns through shaking. All these special features can help to
accelerate the forming speed and ensure the quality of the products
5. The major electronic devices and pneumatic components are manufactured
abroad, which can ensure the stability, safety and durability of this machine

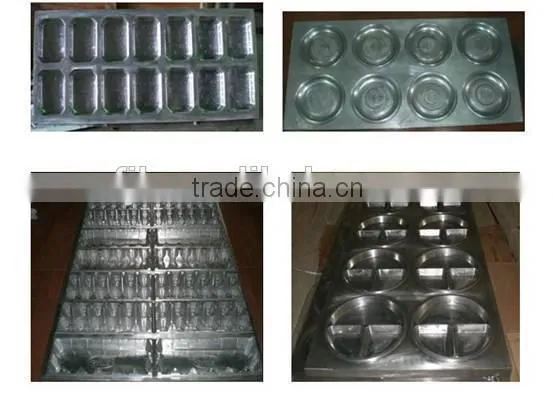

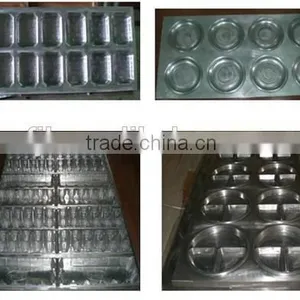

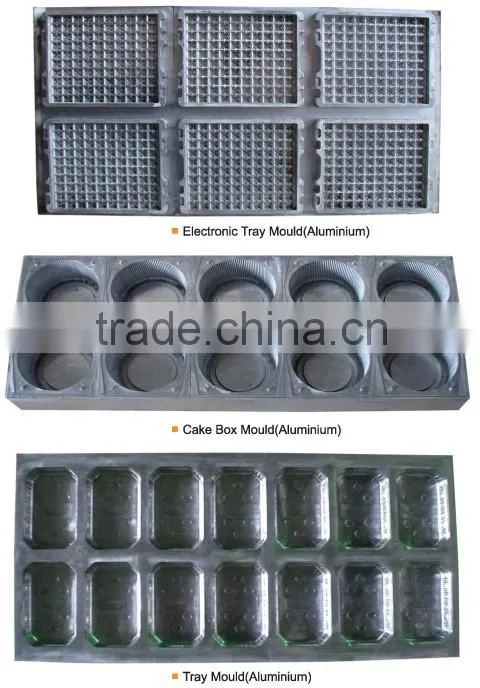

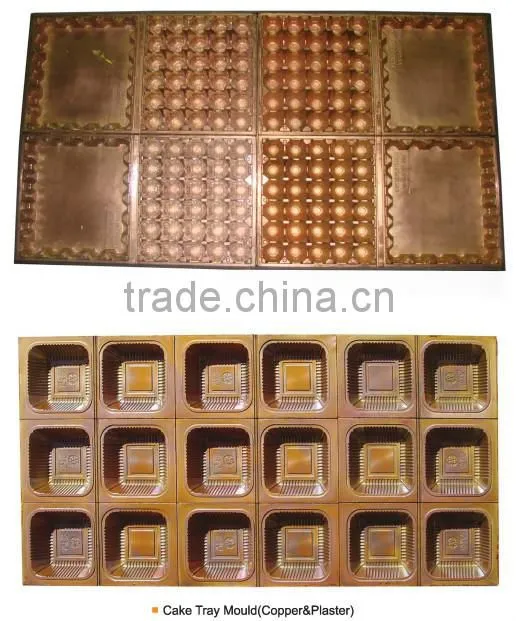

Molds on vacuum forming machine:

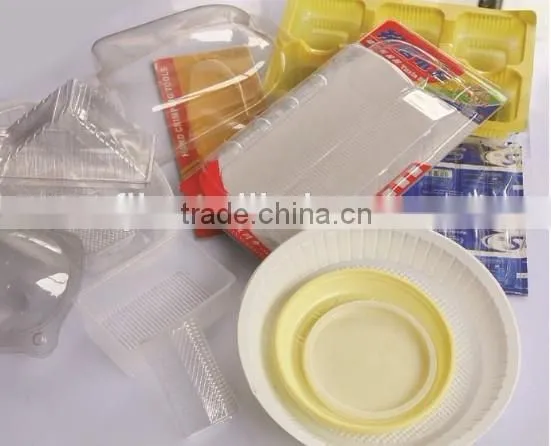

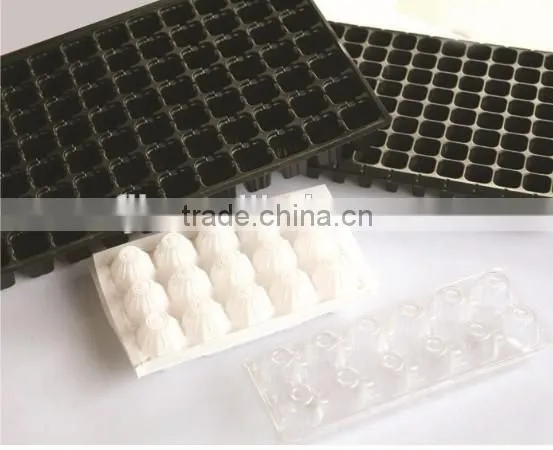

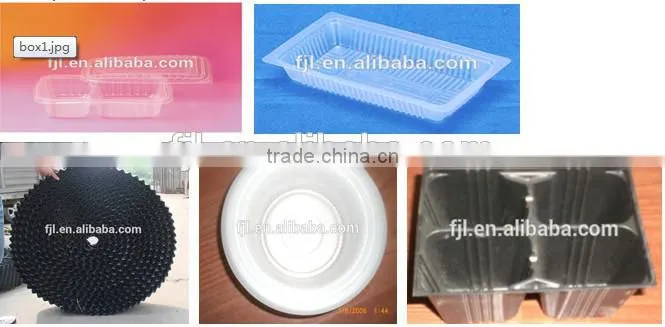

Samples of products:

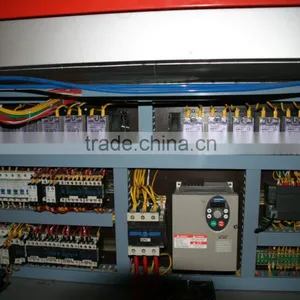

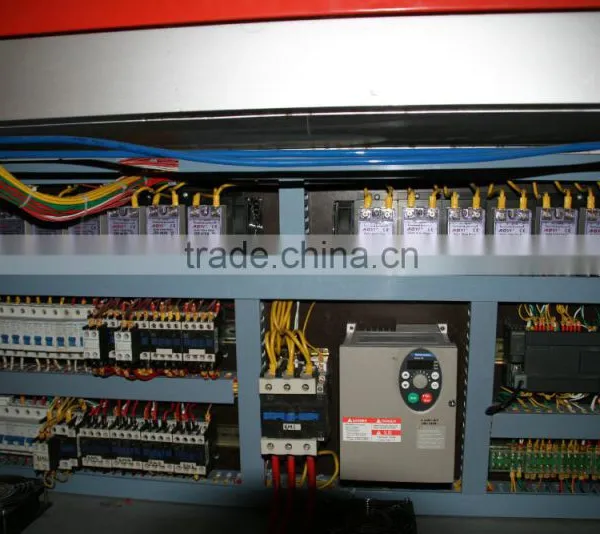

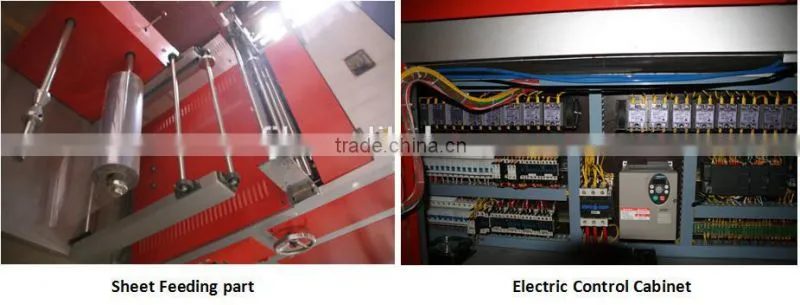

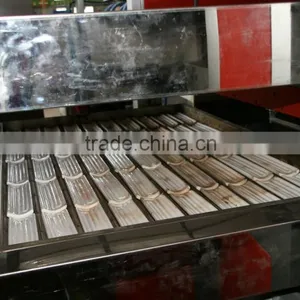

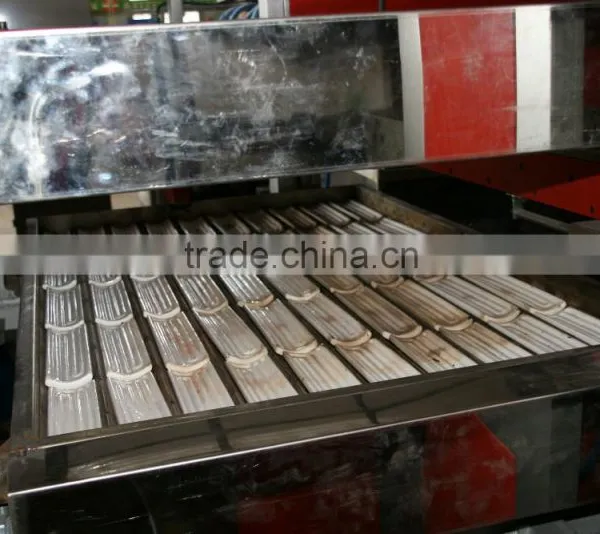

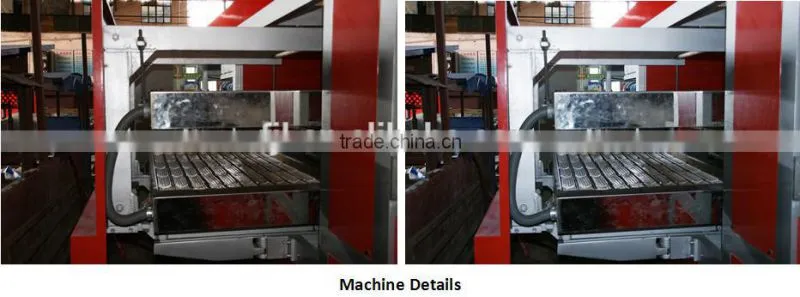

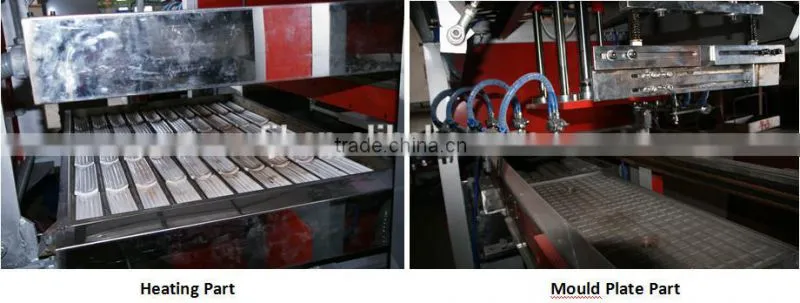

Machine Details:
Main technical parameters:
Model |
FJL-700/1200ZK-A |
FJL-700/1200ZK-B |
Sheet Width |
510~740mm |
|
Sheet Thickness |
0.1~1.2mm |
|
Forming Length |
700~1200mm |
|
Forming Width |
480~700mm |
|
Max. Forming Depth |
Negative Mould ≤ 180 mm |
|
Positive Mould ≤ 200mm | ||
Used Sheet |
PP, PS, HIPS, PVC,P ET Sheet Roll |
|
Running Speed |
3-12 Moulds/Min |
|
Mode of cutting arrangement. |
Off Mould |
|
Heating arrangement |
Top Heating with IR Ceramic Heaters |
Top + Bottom |
Heating Power |
20KW |
35KW |
Vacuum Ration |
100 m3/h |
|
Air Consumption |
1.2 m3/h |
|
Water Consumption |
0.6 ~ 0.8 m3/h |
|
Power Supply |
380/220V,50Hz, Tri-phase, Four Wire |
|
Overall Dimension |
7.8mX1.4 mX2.2m |
|
Weight |
3.0T |
3.2T |

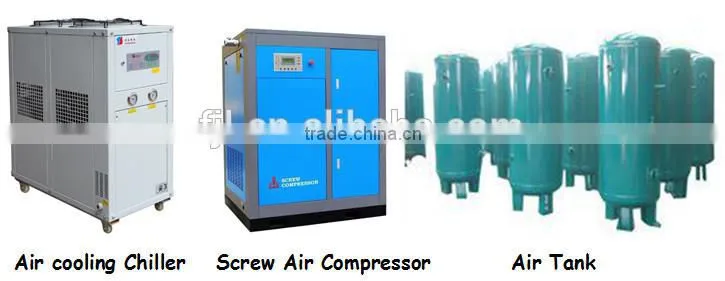

Auxiliary Equipments for Vacuum Forming Machine:
Our customers:
1.Machine installation:
We can send technicians to customer's factory to help adjust and install machines.
2.Guarantee period and after-sale service:
Guarantee period of our machine is one year.Within guarantee time,if there is some sparts broken or damaged not caused by the human factors,we will send it to customers free of charge.We would help cusomer to prepare water supply,power and air supply.
Besides,after machine reaches customers' factory,we will send one technician to customers'
factory to help install and debug machines.
