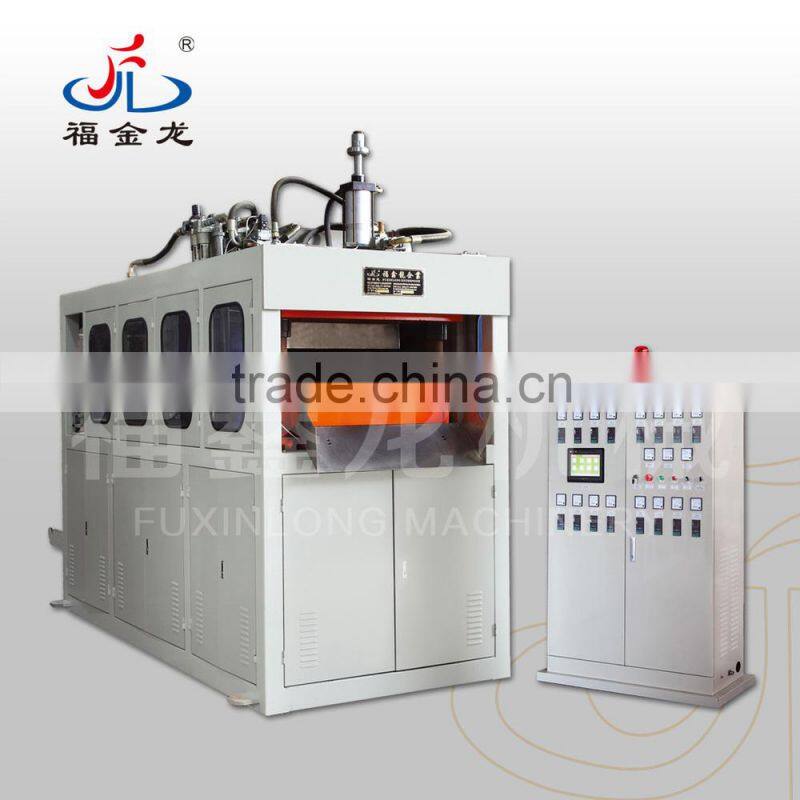

Specifications
disposable plastic pot manufacturers1.max forming area:650 x 320mm
2.max depth:120mm
3.Cut in mould automatic
disposable plastic pot manufacturers
Usage
This machine is used for making disposable products as plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, dishes, trays,lids and etc.
I.Main Technical Parameter
Model |
FJL-660SB-B I |
FJL-660SB-C I |
Max. Forming Area |
650*220mm |
650*320mm |
Running Speed |
15-30cycles/min(According to sheet thickness, material used and product shape) |
|
Running Pattern |
Hydraulic/cam |
|
Cutting Pattern |
In mould automatic |
|
Sheet Material |
PP.PS.HIPS.PET.PVC |
|
Sheet Thickness Range |
0.2-2mm |
|
Max. forming Depth, Sample Height |
120mm |
|
Oil Pump Motor Power |
7.5KW |
15KW |
Max. Sheet Roll Dia |
800mm |
|
Heater arrangement |
(104Pieces,650W)Top +Bottom Heating With IR Ceramic Heater |
(120Pieces,650W)Top +Bottom Heating With IR Ceramic Heater |
|
Temperature Controller & Thermocouple |
PID K-Type |
|
Electrical Consumption |
35KW/h |
40KW/h |
Overall Power |
77KW |
95KW |
Air Consumption |
1.3-1.6m3/min, 0.6-0.8 Mpa |
1.5-1.8m3/min, 0.6-0.8 Mpa |
Dimension |
3.4*1.5*2.3m |
3.4*1.57*2.5m |
Weight(T) |
4.2 |
4.3 |
Power Supply |
380V/50HZ Three phase four wires |
|
II.Major Construction Features
The sheet feeding pin chain is controlled by motor with encode.
The stretching of plug inside of up mould is controlled by air cylinder.
The operation is controlled by PLC with touch screen.
Adopt two pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality

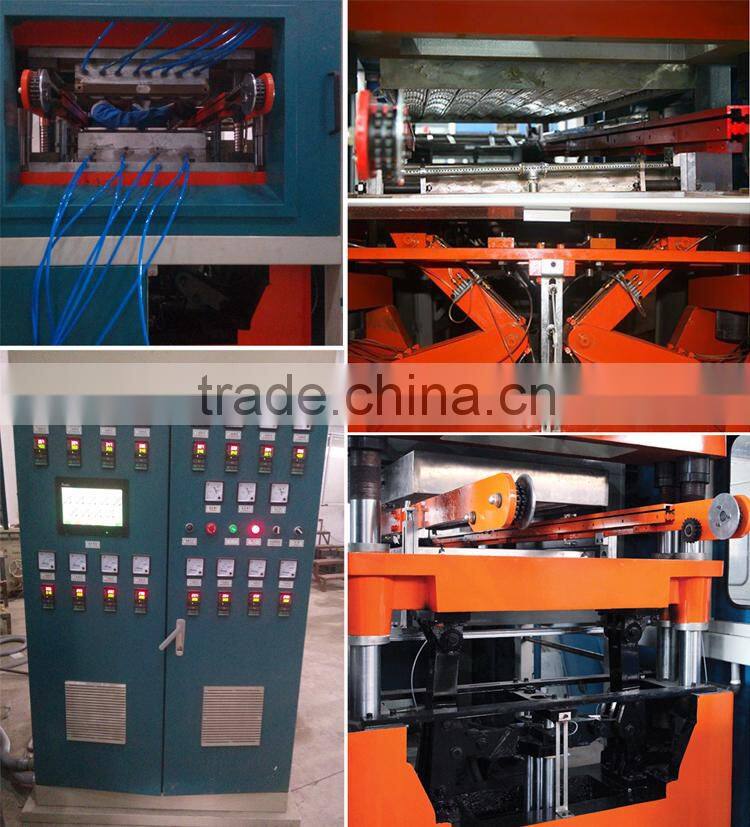

III.Machine Parts

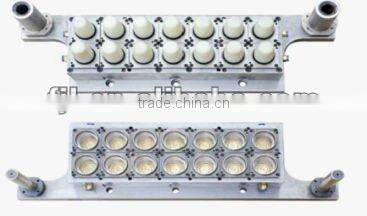

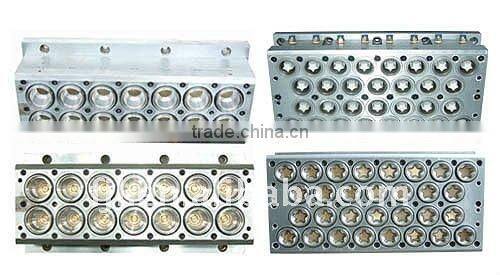

IV.Mould sample

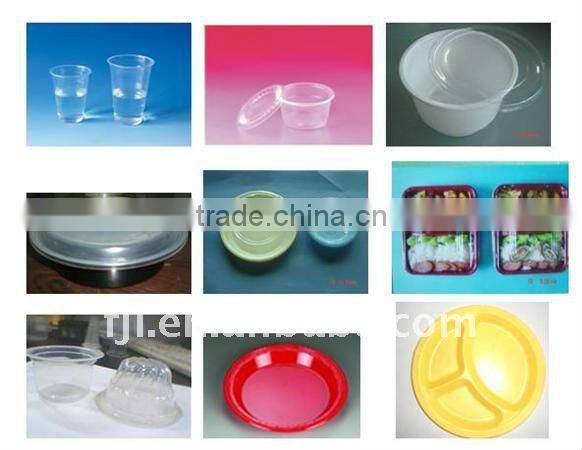

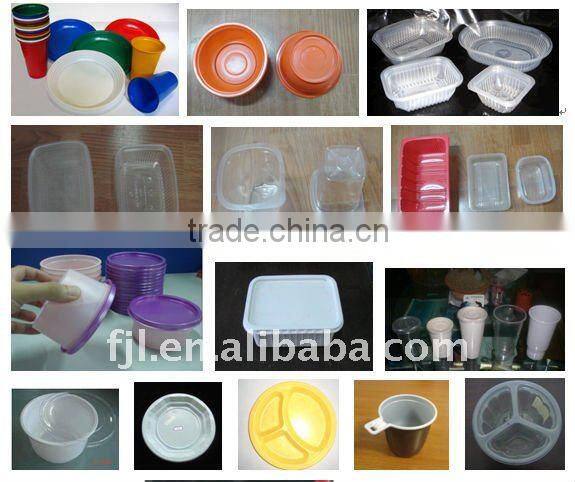

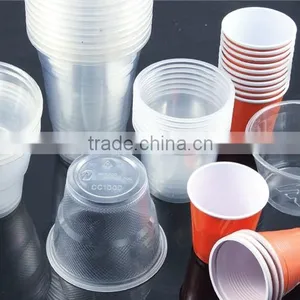

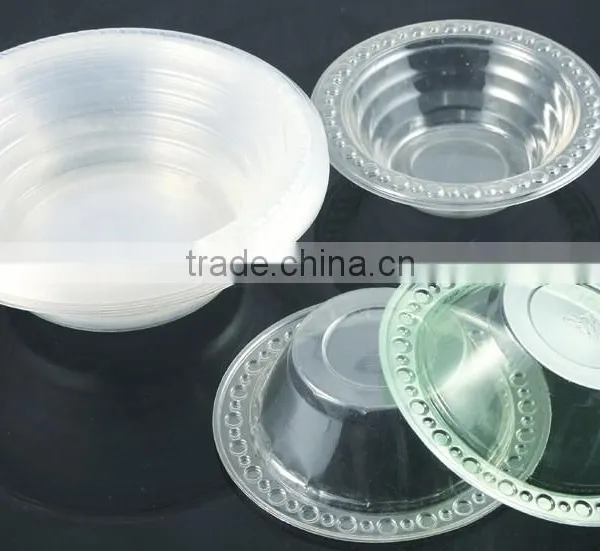

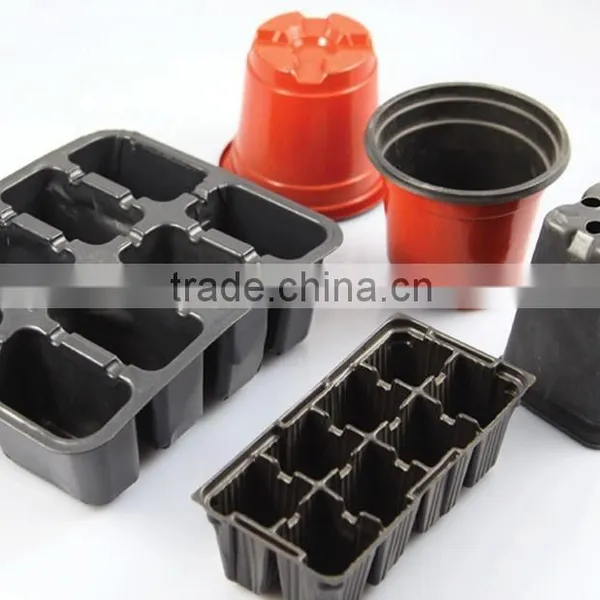

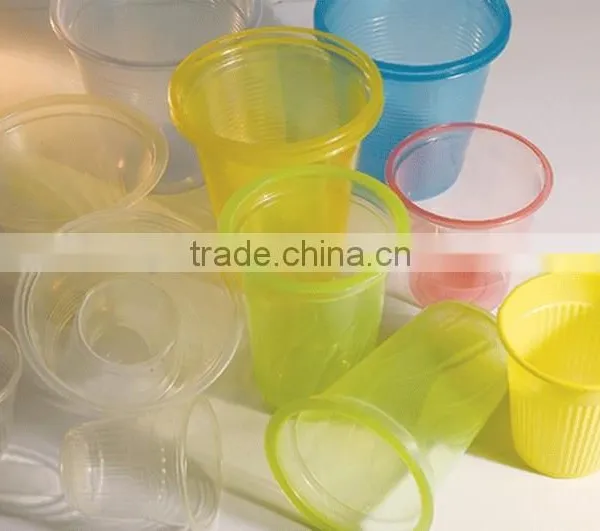

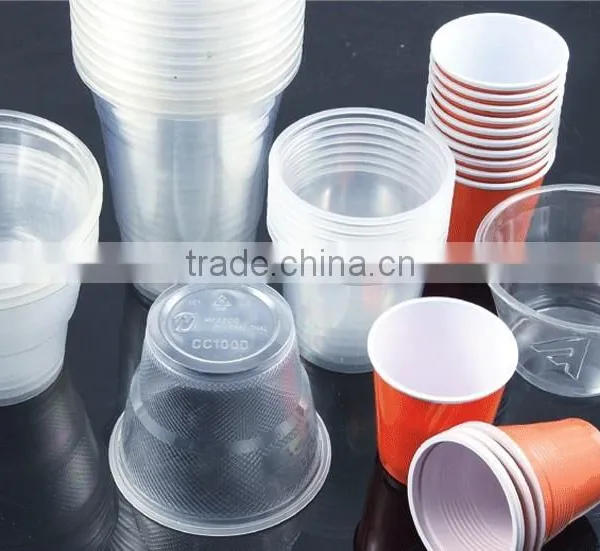

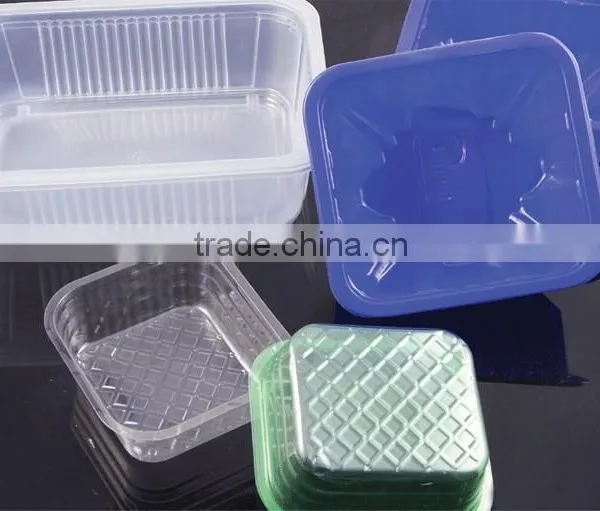

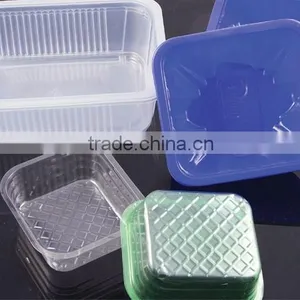

V.Products sample

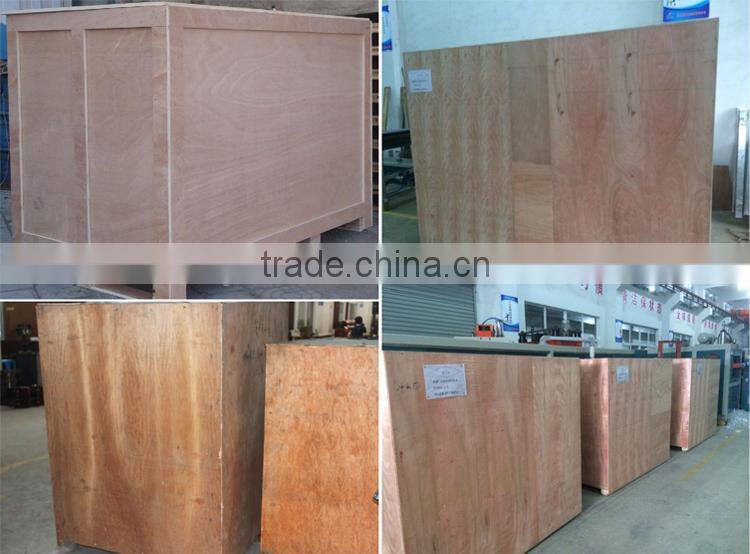

WOODEN CASE
Warranty and After-sale service
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
VII.Certification
VIII.Our advantage
Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.
