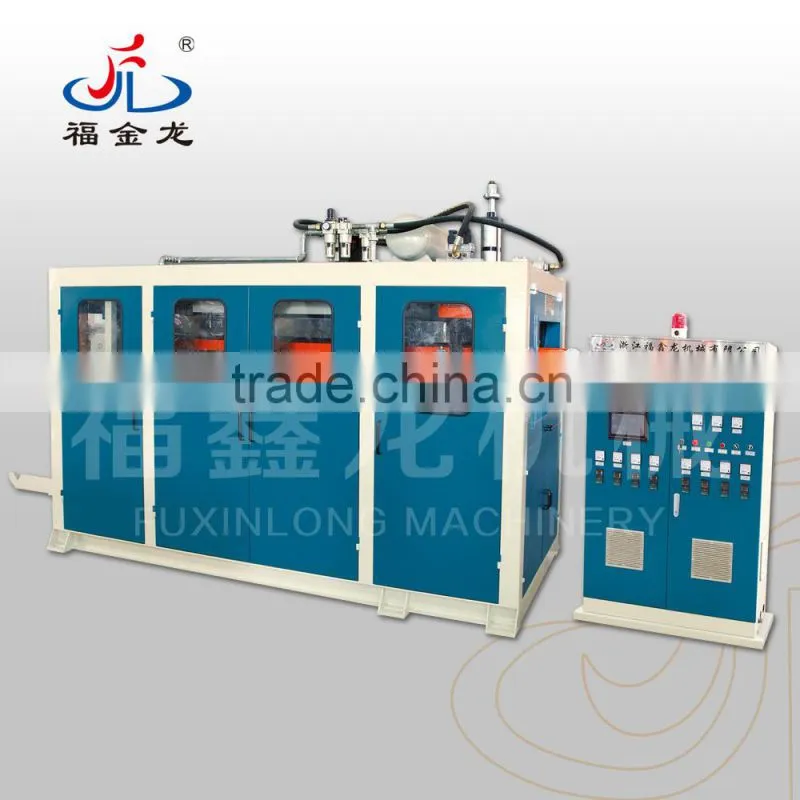

automatic disposable products making machine, plastic glass making machine,machine for disposable cup

Specifications

automatic disposable products making machine, plastic glass making machine
1.operated by PLC and touch screen
2.Four pillars







Usage

The machine mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make disposable bowls, lids, dishes, trays and ect.







I.Main Technical Parameter (Four pillars)



Model	FJL-SZ-680 I	FJL-SZ-750 I
Max. Forming Area	650*320mm	650*420mm
Running Speed	15-30cycles/min(According to sheet thickness, material used and product shape)
Running Pattern	Hydraulic/cam	Hydraulic
Oil Pump Motor Power	7.5KW(Double Pump)	15KW(Double Pump)
Cutting Pattern	In mould automatic
Sheet Material	PP.PS.HIPS.PET.PVC
Sheet Thickness Range	0.2-2mm
Max. forming Depth, Sample Height	120mm
Max. Sheet Roll Dia	800mm
Heater arrangement	(120Pieces,650W) Top + Bottom Heating With IR Ceramic Heater	(152Pieces,650W) Top + Bottom Heating With IR Ceramic Heater
Temperature Controller & Thermocouple	PID K-Type
Electrical Consumption	40KW/h	50KW/h
Overall Power	100KW	120KW
Air Consumption	1.5-1.8m3/min, 0.6-0.8 Mpa	2-2.5m3/min, 0.6-0.8 Mpa
Dimension	3.65*1.73*2.5m	4*1.59*2.6m
Weight(T)	4.4	4.8
Power Supply	380V/50HZ Three phase four wires





II.Main Construction Features

The sheet feeding pin chain is controlled by motor with encode.

The stretching of plug inside of up mould is controlled by air cylinder.

The operation is controlled by PLC with touch screen.

Adopt four pillars to fix the mould.

Adopt hydraulic system to drive the movement of the mould.

Fill oil automatically to lubricate mechanism movement at certain time.

Temperature control modules to control each temperature area.

Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.

Machine frame adopts square steel, more stable and serviceable.

Convenient operation, reliable performance, low noise and high quality.

III.Machine Parts



IV.Mould sample



V.Products sample





















VI.Marketing

During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,such as, Sweden, Romania,Macedonia,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.



VII.Certification









Our advantage

Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.
