Help CenterAutomatic Take Away Food Container Making Machine
Related Products
-
Automatic Machine to Make Disposable PlatesUS$ 20,500 - 45,000MOQ: 1 Set -
FJL-660SB-C Full Automatic Plastic Cup Thermoforming MachineUS$ 20,500 - 45,000MOQ: 1 Set
-
Hydraulic Automatic Dinner Plastic Plate MachineUS$ 20,500 - 45,000MOQ: 1 Set
-
FJL-660SB-C Disposable Plastic Cup Making MachineUS$ 20,500 - 45,000MOQ: 1 Set
-
FJL-660SB-C Plastic Dishes Making MachineNegotiableMOQ: 1 Set
Specifications
1.Automatic servomotor cup making machine2.operated by PLC and touch screen
3.Good qulity ,work stable
4.Certification:CE
Usage
This machine is used for making disposable products as plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, dishes, trays,lids and etc.
I.Main Technical Parameter
Model |
FJL-660SB-C II |
Max. Forming Area |
650*320mm |
Running Speed |
15-30cycles/min(According to sheet thickness, material used and product shape) |
Running Pattern |
Hydraulic/cam |
Cutting Pattern |
In mould automatic |
Sheet Material |
PP.PS.HIPS.PET.PVC |
Sheet Thickness Range |
0.2-2mm |
Max. forming Depth, Sample Height |
120mm |
Oil Pump Motor Power |
15KW |
Stretching/Feeding Servo-Motor Power |
5KW/4.4KW |
Max. Sheet Roll Dia |
800mm |
Heater arrangement |
(120Pieces,650W)Top + Bottom Heating With IR Ceramic Heater |
|
Temperature Controller & Thermocouple |
PID K-Type |
Electrical Consumption |
45KW/h |
Overall Power |
100KW |
Air Consumption |
1.5-1.8m3/min, 0.6-0.8 Mpa |
Dimension |
3.4*1.57*2.5m |
Weight(T) |
4.4 |
Power Supply |
380V/50HZ Three phase four wires |
II.Main Construction Features
The sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The stretching of plug inside of up mould is controlled by servomotor.
The operation is controlled by PLC with touch screen.
Adopt two pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
III.Machine Parts
IV.Mould sample

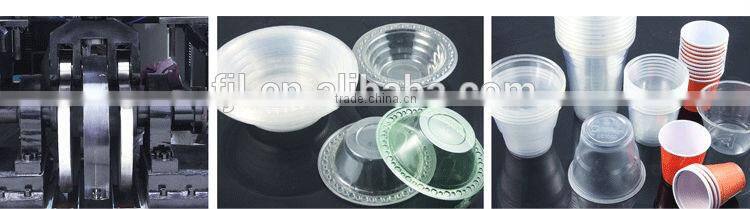

V.Products sample
Warranty and After-sale service
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
VI.Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,such as, Sweden, Romania,Macedonia,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.
VII.Certification
VIII.Our advantage
Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.
Thanks for visiting our website , need more details welcome to contact me any time !
contact person: Sherry chen Tel/Whatsapp:008618358758582
skype: fuxinlong02
