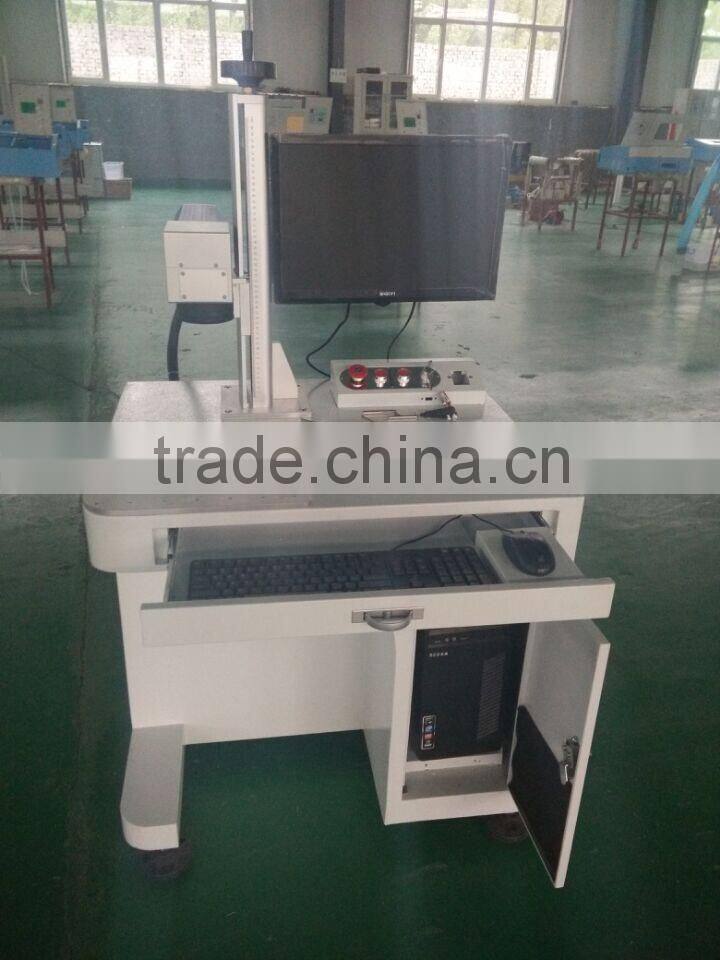

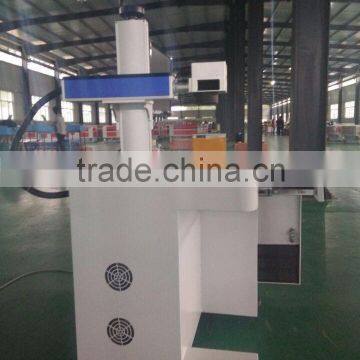

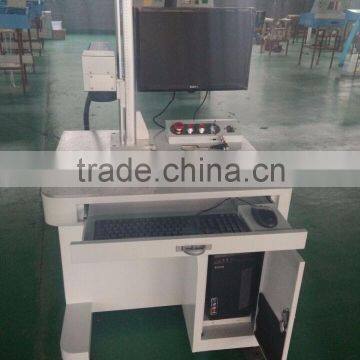

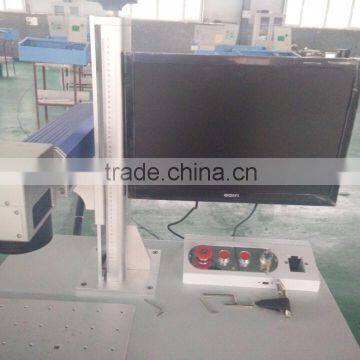

Model: fiber laser marking/engraver/cutter machine (table type fiber)
Technical Parameters
| Type | FL-10 | FL-20 |
| Power | 10W | 20W |
| Laser Wavelength | 1064nm | |
| Marking Area | 150mm*150mm | |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm | |
| Marking Depth | ≤1.2mm | |
| Marking Speed | 800 standard characters/second | |
| Minimum Line Width | 0.012mm | |
| Minimum Character | 0.15mm | |
| Repeated Precision | ±0.003mm | |
| Life-span of Fiber Laser Module | 100 000hours | |
| Beam Quality | M2 <1.5 | |
| Focus Spot Diameter | <0.01mm | |
| Output Power of Laser | 10%~100% continuously to be adjusted | |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits | |
| Cooling Mode | Air cooling--Built-in | |
| Temperature of Operation Environment | 15℃~35℃ | |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase | |
| Power Requirement | <400W | |
| Communication Interface | USB | |
| Machine Dimension/after package | 650mm*210mm*550mm/880*420*700mm | |
| Net Weight/gross weight | 30KG/53kgs | |
| Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation | |
Advantages
1) Small size and compact structure, convenient to move.
2) Long lifespan of fiber laser source: 100 000 hours
3) good scanning galvanometer, with good seal, small volume, compact.
4) good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.
5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.
6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
9) The fiber laser beam no need to adjust the laser optical path.
10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
13) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which needs high precition and depth marking effect.

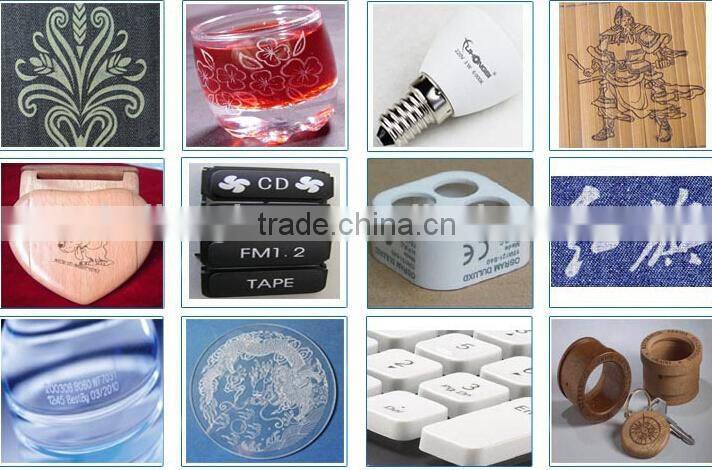

Applicable Materials
laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
Applicable Industry
Mechanical Parts:
Bearings, Gears, Standard Parts, Motor, etc.
Instrument:
Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools:
Knives, Tools, Measuring Tools, Cutting Tools, etc.
Daily Necessities:
Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Automobile Parts:
Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
Electronic Components:
Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
