Four colors Offset Printing Machine Four colors Offset Printing Machine, plastic cup printer
Usage:
The Four colors Offset Printing Machine, which feeds cups on level and adopts corona pre-treatment, mandrel UV curing, so printed pattern is clear and real. Main motor mounted with three-phase frequency conversion speed adjust, timing belt drive, stepless speed regulation, functions steadily without noises. Convenient to adjust quantity of ink and pressure of ink distributing roller, and the ink supply is ideal. when fix forme, locating spring can automatically tighten, and it is easy to load or unload the forme, as well as chromatography. printing cylinder and forme roller assembled with cantilever are easy to cluch and adjust pressure.
Features:
The cups will be delivered to the channel by the cup-serving-tray automatically, which could reduce labor intensity. The cup-delivering channel will be powered by electronic engineering sharing the same speed with pressing. The cup-delivering tray(spiral wheel) is special designed for many kinds of cups, and it could be set for450 or 900 according to your special need.
Techinical Specifications:
1. Product specification
This type is the letterset printing machine, with axes UV solidification, suitable for printing on plastic cups and bowls.
2. Printing diameter
30~146mm
3. Requirements for the size of the cups or bowls
50~168mm
4. Maximum printing height
110mm
5. Height of cup
30~150mm
6. Bevel of cup or bowl
120(Maximum)
7. Maximum printing speed
10000 pieces/h
8. Total power
18KW

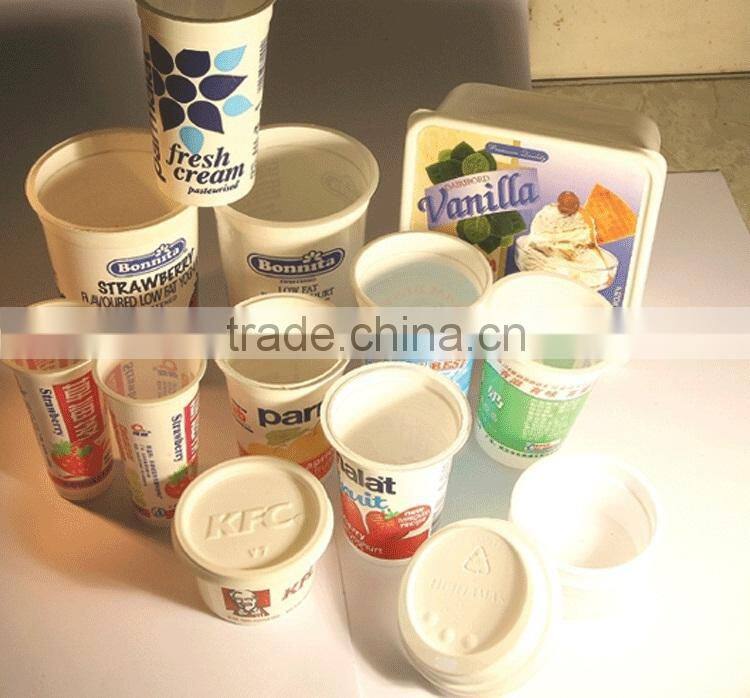

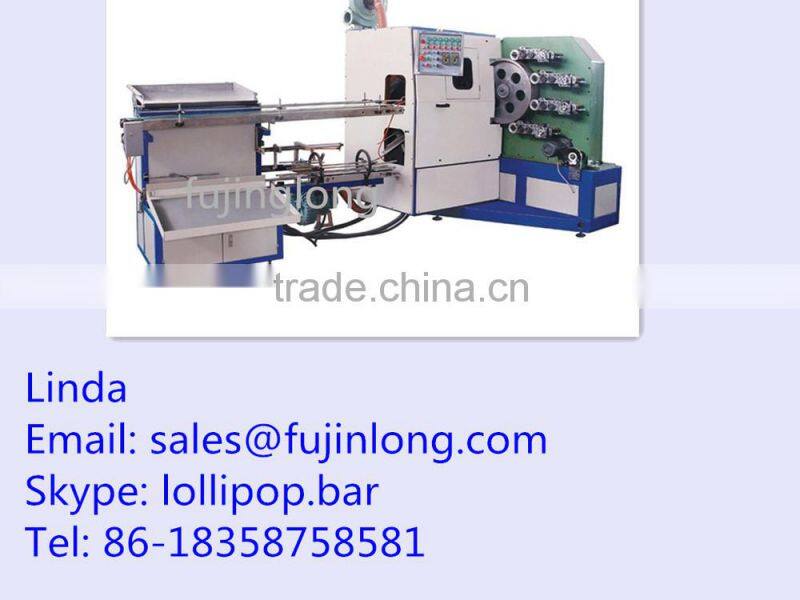

Picture:
Exhibition show:
Our Services:
1.Machine installation:
We can send technicians to customer's factory to help adjust and install machines.
2.Guarantee period and after-sale service:
Guarantee period of our machine is one year.Within guarantee time,if there is some sparts broken or damaged not caused by the human factors,we will send it to customers free of charge.We would help cusomer to prepare water supply,power and air supply.
Besides,after machine reaches customers' factory,we will send one technician to customers'
factory to help install and debug machines.
