Specifications
It feeds cup on level and adopts corona pre-treatment, mandrel UV curing, so printed pattern is clear and real
Usage

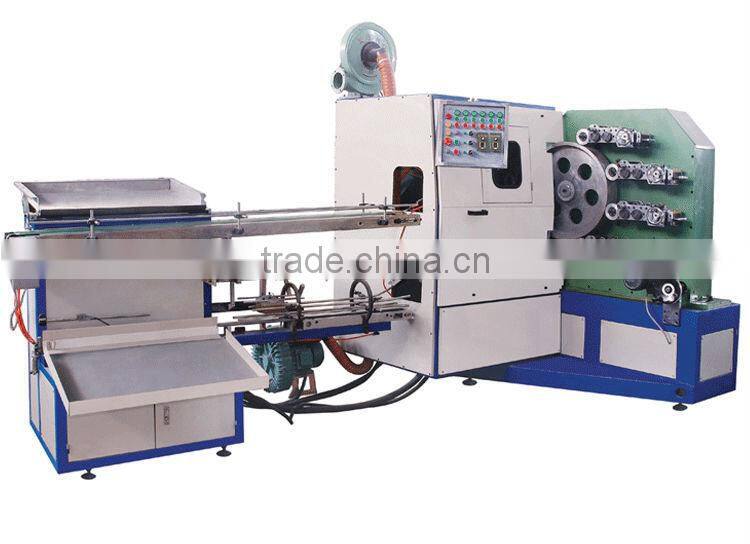

It feeds cup on level and adopts corona pre-treatment, mandrel UV curing, so printed pattern is clear and real. Main motor mounted with three-phase frequency conversion speed adjust, timing belt drive, stepless speed regulation, functions steadily without noise. Convenient to adjust quantity of ink and pressure of ink distributing roller, and the ink supply is ideal. When fix forme, locating spring can automatically tighten, and it is easy to load or unload the forme, as well as chromatography. Printing cylinder and forme roller assembled with cantilever are easy to clutch and adjust pressure.
Main technical parameters
Printing diameter |
Ø40-Ø105mm |
Printing length |
110mm |
Max.Printing bevel angle |
12° |
Max.Printing speed |
10000(p/h) |
Motor power consumption |
13.8KW |
Overall dimension |
6000X2800X2600mm |
SAMPLES
molds
wooden case
Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
we have the specifications of all machine
Thanks for visiting our website , need more details welcome to contact me any time !
