Introductionof Electric Concrete Pole Making Machine

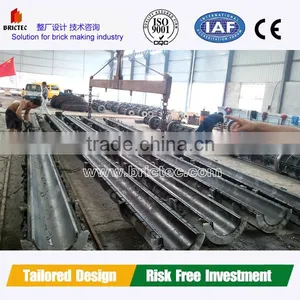

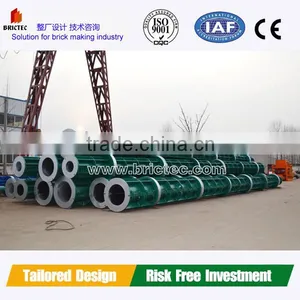

Prestressed Concrete Electric Pole Making Machine is a kind of mould equipment, which used for making a
variety of different diameter and length of reinforced concrete poles and other cement products.
Prestressed Concrete Electric Pole Making Machine is operated by remotecontrolled continuously variable
motor. It runs smoothly and has a variable_speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in boxtype structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
The Working Principle
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.
Technical Parameter of Electric Concrete Pole Making Machines , concrete electric pole equipment
top end inner diameter (mm) |
Tread (mm) |
Running wheel diameter (mm) |
Length (m) |
150 |
2000 |
600 |
7-12 |
170 |
2000 |
600 |
7-12 |
190 |
2000 |
650 |
7-15 |
230 |
2000 |
650 |
6-9 |
300 equal diameter |
2000 |
600 |
6-9 |
350 equal diameter |
2000 |
650 |
6-12 |
310 |
2000 |
650-780 |
6-15 |
Features:
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.
Service introduction:
Before-sale services:
(1) Tell customer how to build a concrete pole plant
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Overseas Engineer Team For Service:
