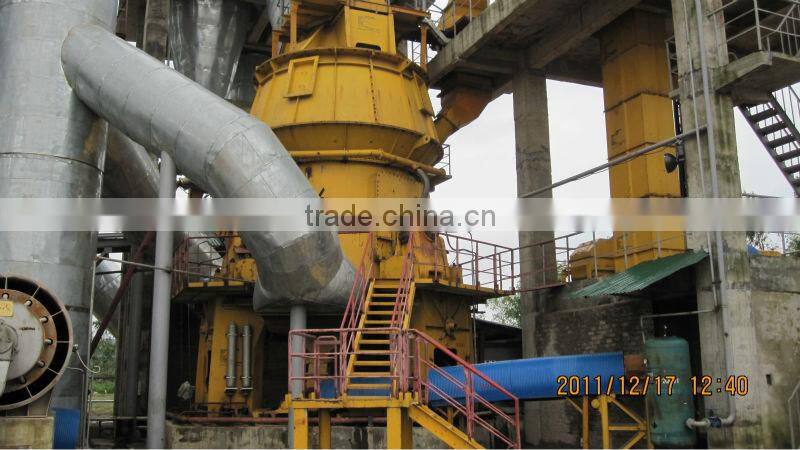

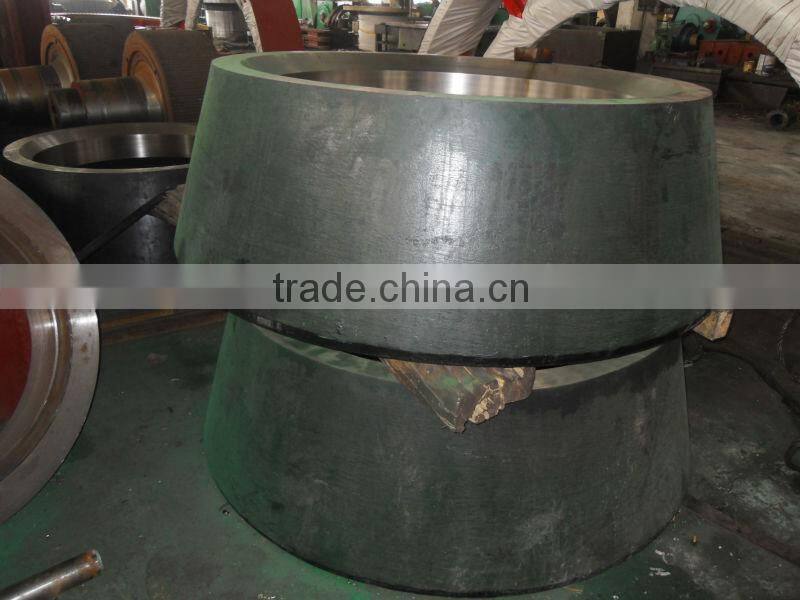

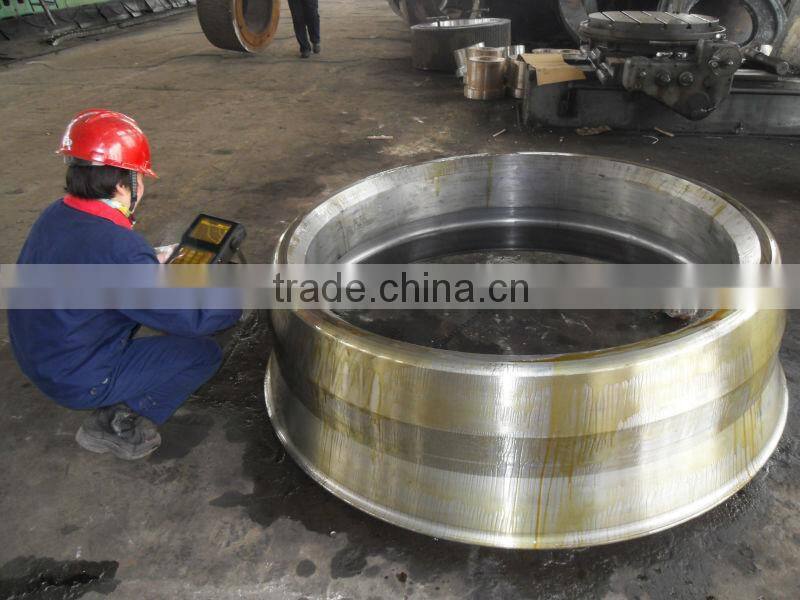

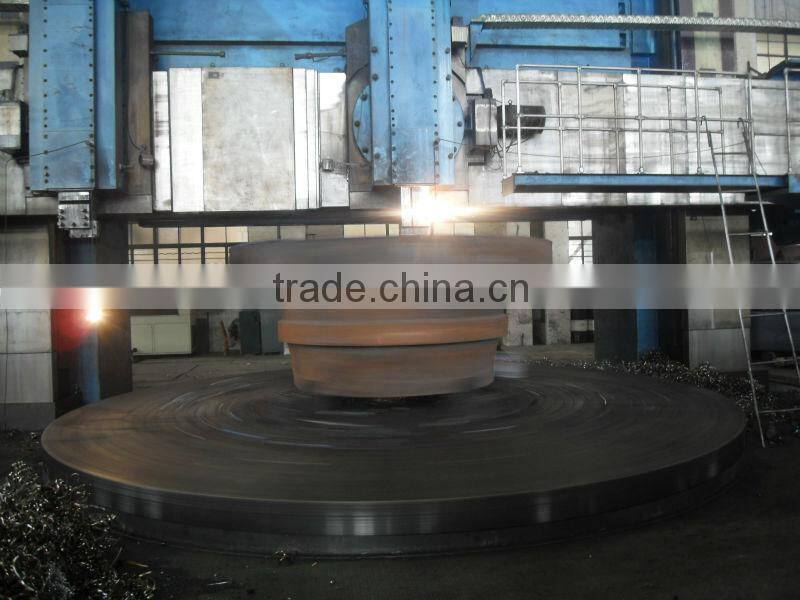

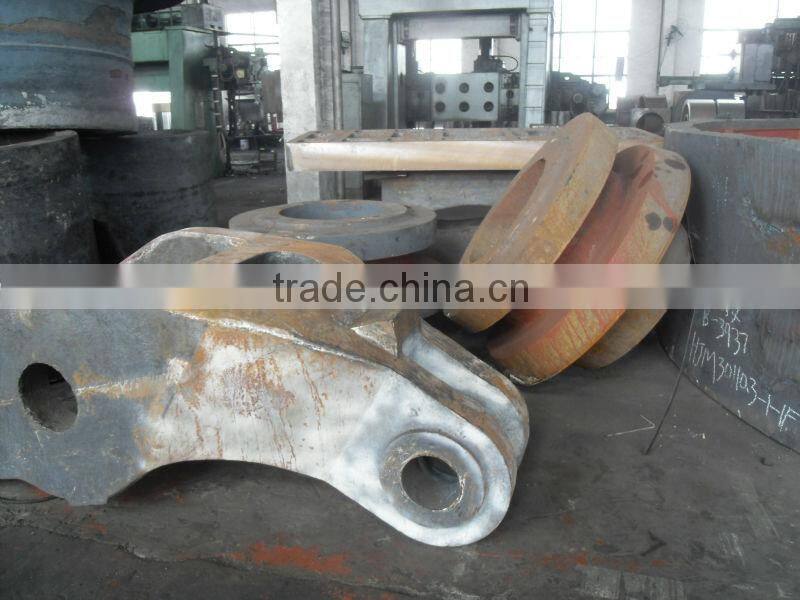

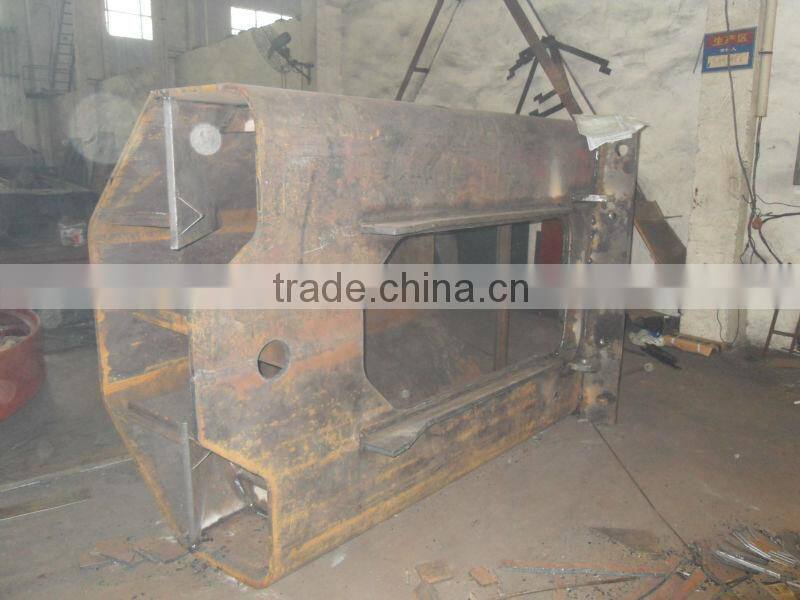

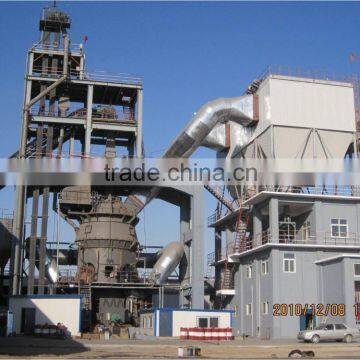

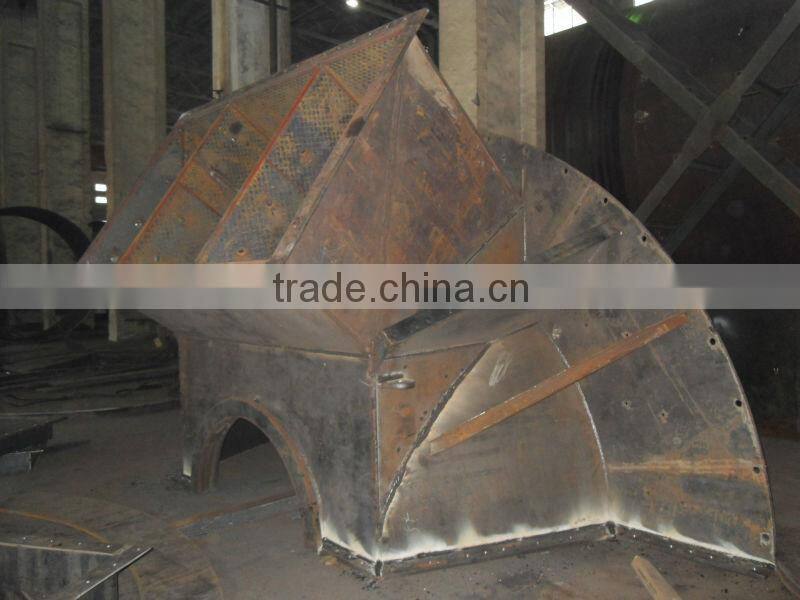

HJCM vertical mill manufactured in our company is a kind of roller mill which can match 2,3 or 4 rollers according to the request. Each roller is composed of fixed rocker arm, frame of rocker arm and hydraulic system which come into grinding power unit , is a complete or standard parts. It is arranged into two compartments, three compartments or four compartments around mill disc.
Look from the technology and economy, HJCM vertical mill is an advanced grinding equipment. Comparing with traditional grinding equipment, the advantages are as the follows:
1---Grind all kinds of different material
2--- Small area
3--- Low consumption
4---Convenient adjustment
5---Quick control response
6---Convenient maintenance(Not need to dismantle the easily wear-out parts
7---Small vibration from start to stop
8---Small noise
9---Strong adaptability
Mill model |
Dia. Of mill (mm) |
Average diameter of mill roller(mm) |
Number of mill roller |
Speed of mill disc (rpm) |
Capacity (t/h) |
Loading power (KW) |
HJCM standard coal vertical mill(Anthracite vertical mill will be discussed in another) | ||||||
HJCM35.30 |
3,500 |
1900 |
3 |
30.9 |
70 |
1400 |
HJCM30.30 |
3,000 |
1900 |
3 |
33.4 |
65 |
1250 |
HJCM28.30 |
2,800 |
1750 |
3 |
34.6 |
55 |
1000 |
HJCM26.30 |
2,600 |
1600 |
3 |
35.9 |
45 |
810 |
HJCM23.30 |
2,300 |
1450 |
3 |
38.2 |
35 |
640 |
HJCM22.30 |
2,200 |
1400 |
3 |
39 |
30 |
590 |
HJCM20.30 |
2,000 |
1250 |
3 |
40.9 |
20 |
430 |
HJCM16.30 |
1,600 |
1000 |
3 |
45.8 |
12 |
250 |
Our Service
1. Send technicians to the installation site for the guidance, installation, debugging and training. Please help provide the accommodation and the return ticket.
2. The warranty period is 12 months since the date of installation.
3. Any problem you have in the operating process, pls contact us freely. Door to door service would be offered when necessary.
4. The accessories are supplied all the year around.
Brief Introduction of Jiangsu Haijian Stock Co.,Ltd
Haijian Company is situated in the world-famous Yangtze River Delta Economic Zone, Shanghai Economic North circle---Jiangsu Haian. This boasts lots of picturesque sceneries and outstanding talents. The company is 200 kilometers away from Shanghai---the cosmopolis---to the south and from Nanjing ---the capital of Jiangsu Province to the west.
Haijian, established in 1970, was reformed into a provincial public run shareholding enterprise in November 2003. It is staffed by 500 workers, 25% of whom are engineering technical management personnel. The company covers an area of 100000 square meters, with a building area of 55000 square meters. It possesses fixed assets worthy of close to 0.1 billion yuan, and it holds own 65 million yuan in all. It machines and cuts 50000 tons of produces every year.
Why choose our group & our Production?
1.35years mill manufacture experience--The most senior mill manufacture group in China
2. Unique International standard indoor warehouse for mill manufacture--The delivery time won`t be influenced by bad weather
3. Famous brand “HAIJIAN”-China famous mill brand.
4. Rich exporting mill experience- Exporting to over 100 countries.
5. We have many turn-key projects in oversea and sales agent abroad.
6. We have the senior mill design engineers, with fast and professional design.
7. Very expert mill mechanical and electrical installation engineer team.
8. Mill installation and mill commissioning service supply.
9. Our mill sales team will help to supervise the mill whole production and seaport loading, we prefer to confirm every small detail.
10. We know how to shipment the mill in a very compact and reasonable way, save sea freight for our oversea mill client
11. Mill installation and mill commissioning service supply.
Warmly welcome to Haijian to conduct instruction, negotiation, investment and cooperation for our common development and prosperity
Add: No.198 Shuanglou Road Qutang Town Haian County,Jiangsu, PRC
Tel:0086 513 88792415
Fax:0086 513 88792415
Skype:zhblzhang
Website:
