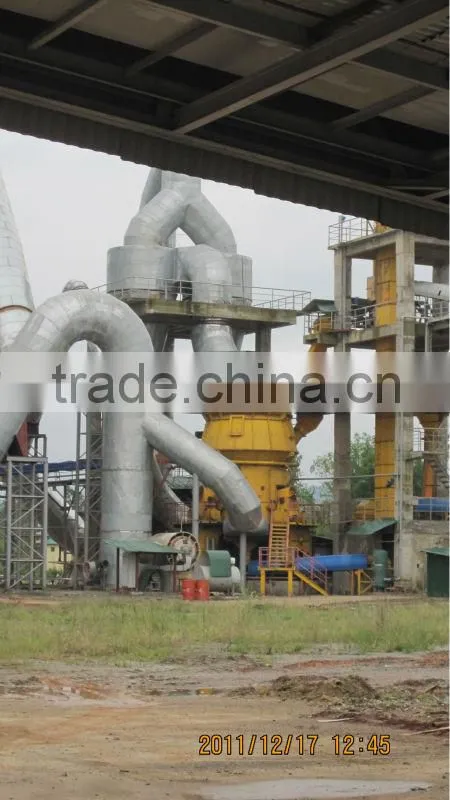

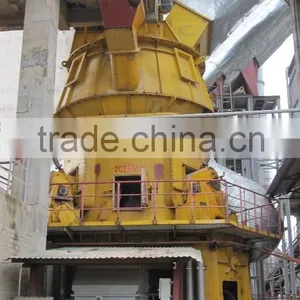

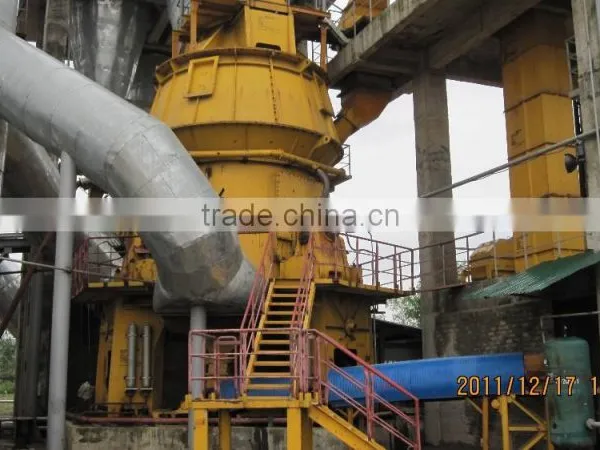

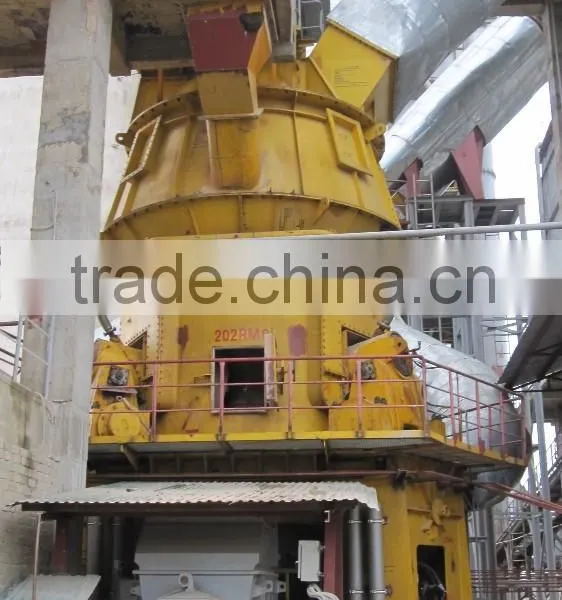

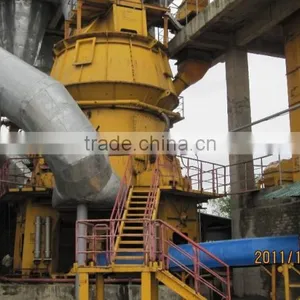

HJRM vertical mill manufactured in our company is a kind of roller mill which can match 2,3 or 4 rollers according to the request. Each roller is composed of fixed rocker arm, frame of rocker arm and hydraulic system which come into grinding power unit , is a complete or standard parts. It is arranged into two compartments, three compartments or four compartments around mill disc.
Look from the technology and economy, HJRM vertical mill is an advanced grinding equipment. Comparing with traditional grinding equipment, the advantages are as the follows:
Grind all kinds of different material
Small area
Low consumption
Convenient adjustment
Quick control response
Convenient maintenance(Not need to dismantle the easily wear-out parts
Small vibration from start to stop
Small noise
Strong adaptability
Mill model |
Dia. Of mill (mm) |
Average diameter of mill roller(mm) |
Number of mill roller |
Speed of mill disc (rpm) |
Capacity (t/h) |
Loading power (KW) |
HJRM raw material vertical mill | ||||||
HJRM20.30 |
2,000 |
1,250 |
3 |
40.94 |
57.8 |
430 |
HJRM22.30 |
2,200 |
1,400 |
3 |
39.04 |
77 |
580 |
HJRM23.30 |
2,300 |
1,450 |
3 |
38.18 |
83.5 |
630 |
HJRM26.30 |
2,600 |
1,600 |
3 |
35.91 |
108.1 |
810 |
HJRM30.30 |
3,000 |
1,700 |
3 |
33.43 |
126.9 |
950 |
HJRM30.40 |
3,000 |
1,400 |
4 |
33.43 |
160.8 |
1100 |
HJRM32.40 |
3,200 |
1,400 |
4 |
32.37 |
168.7 |
1200 |
HJRM32.40 |
3,200 |
1,500 |
4 |
32.37 |
188.7 |
1300 |
HJRM34.40 |
3,400 |
1,500 |
4 |
31.4 |
197.3 |
1400 |
HJRM36.42 |
3,600 |
1,700 |
4 |
30.52 |
231.7 |
1600 |
HJRM38.42 |
3,800 |
1,700 |
4 |
29.7 |
266 |
1900 |
HJRM40.42 |
4,000 |
1,800 |
4 |
28.95 |
307 |
2100 |
HJRM43.42 |
4,300 |
1,900 |
4 |
27.92 |
357.4 |
2500 |
HJRM46.42 |
4,600 |
2,060 |
4 |
27 |
436.2 |
3100 |
