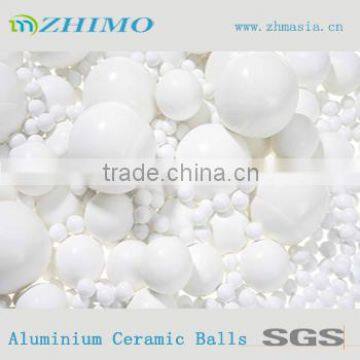

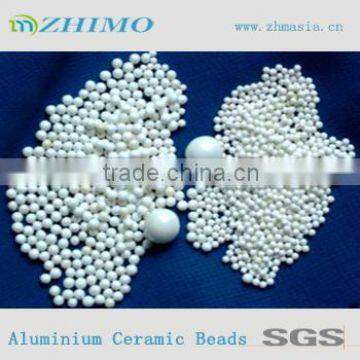

Industries use filler ball for filling 99% alumina ceramic ball filler in chemical industries
Application:
Alumina Ball has the properties such as high-temperature resistance, high-pressure resistance, low water absorption and stable chemical performance etc. It could undertake the erosion of acid, alkali and other organic solvent and could bear the temperature changing during production. Therefore alumina balls are widely used as filer in industries such as gasoline and chemical etc. Its main function is to add the gas or liquid spreading points, supporting and protecting the active catalyzer of low strength.
Technical Parameter:
| Al2O3 Content | 20-30% | 30-45% | 45-70% | 70-90% | >99% | |
| Water Absorption(%) | ≤5 | ≤5 | ≤5 | ≤5 | ≤1.5 | |
| Acid resistance(%) | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | |
| Alkali resistance(%) | ≥80 | ≥82 | ≥85 | ≥90 | ≥95 | |
| Temperature changing tolerance(℃) |
≥130 | ≥200 | ≥500 | ≥700 | ≥800 | |
Compression Strength(KN) |
φ3 | ≥0.12 | ≥0.14 | ≥0.15 | ≥0.16 | ≥0.20 |
| φ6 | ≥0.40 | ≥0.42 | ≥0.44 | ≥0.48 | ≥0.50 | |
| φ8 | ≥0.48 | ≥0.52 | ≥0.60 | ≥0.62 | ≥0.65 | |
| φ10 | ≥0.60 | ≥0.70 | ≥0.80 | ≥0.90 | ≥1.00 | |
| φ13 | ≥1.00 | ≥1.10 | ≥1.30 | ≥1.50 | ≥1.80 | |
| φ16 | ≥1.50 | ≥1.60 | ≥1.80 | ≥2.30 | ≥2.60 | |
| φ20 | ≥1.80 | ≥2.00 | ≥2.30 | ≥2.80 | ≥3.20 | |
| φ25 | ≥2.50 | ≥2.80 | ≥3.20 | ≥3.60 | ≥4.00 | |
| φ30 | ≥3.00 | ≥3.20 | ≥3.50 | ≥4.00 | ≥4.50 | |
| φ38 | ≥4.00 | ≥4.50 | ≥5.00 | ≥5.50 | ≥6.00 | |
| φ50 | ≥6.00 | ≥6.50 | ≥7.00 | ≥8.50 | ≥10.00 | |
| Stacking Density(kg/m³) | 1300-1400 | 1400-1500 | 1500-1600 | 1600-1800 | 1900-2200 | |
Size(diameter/mm)
| φ3 | φ6 |
| φ8 | φ10 |
| φ13 | φ16 |
| φ20 | φ25 |
| φ30 | φ38 |
| φ50 |
ZHIMO factory and Storage could satisfied the large requirements from customers all over the world. For most of the time, we have the zirocinia beads, alumina balls, ceramic parts in stock and could deliver them to clients within 10days. We will provide all the documents which is necessary for importing zirconia beads.
1. TOP 5 ceramic grinding media manufacturer in China with more than 20years' R&D experience.
2. 7x24 hours custome service, help you to resolve your questions anytime you want.
3. Arrange the orders and shipping to customers'requirements in time. According to the local importing policy in different countries, we will provide complete customs clearance documents.
4. Variety of products: we could customerize the sizes of of alumina ball filter according to your actual requirements
5. Provide a price trend, ensure the clients can know about marketing informations in time.
7. Fast response, considerate service .Emails will be replied within 12 hours to ensure your questions will be answered in time
8. Free Sample Service: In order to help clients know more about ZHIMO ceramic grinding beads quality before placing orders, ZHIMO could send 100-200g free sample to clients for testing.
Now ZHIMO ceramic material including zirconia beads, alumina balls, ceramic parts and ceramic mills have been sold to more than 20 countries. The good quality of ZHIMO grinding balls have been admitted by all users. By deliverying, the grinding media could be packed in craft bag, plastic bag, carton box, carton drum, metal barrel or plastic drum. We would send by LCL or FCL with or without pallets according to your requirements.
ZHIMO(Shanghai) New Material Technology Co., Ltd grew out of Shanghai Grinding Media Factory and since the beginning of nineteen nineties, we have long been involved in the R & D and production for the zirconium grinding beads and now we are one of the few manufactures developing from that period. In 2013, in order to adapt to the development of chemical industry, we had bravely finished a stock reform and restructuring. We started to cooperate with German leading zirconia beads manufacturer and ZHIMO was born at that time. Now ZHIMO has been concentrated on the research of all kinds of ceramic products, such as ziroconia beads, alumina balls, silicon nitrade balls, ceramic parts and ceramic grinding mills. Our special forming process of roll polishing ensures good spherical shape and high density for the zirconium grinding beads. Advanced kiln sintering technology and long-time high-temperature fritting ensures stable performance of the zirconium beads in use process. We now have long term business partners in more than 20 countries and we always enjoy a good reputation in the market. Under the strong global economic competition, we always work with the business objective "quality first, customers supreme" and reward all our customers with continuous support.
