Specifications
1.Expert of Tiles&Bricks Machinery2. High quality
3. Exported 20 counties
Product Description

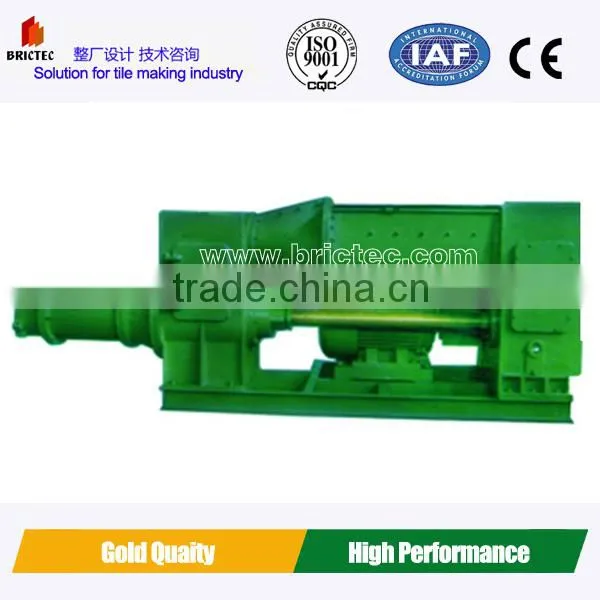

l Type A20-20 mainly used for the smaller sizes or smaller volume productions of extruded wet forming ceramic tiles and bricks, such as for the green tiles forming process of some special shaped or arts tiles etc.
l Type SY12-12 specially made for the trial-production process of extruded wet forming ceramic tiles and bricks, like split tiles, ceramic plates etc., to meet all kinds of extrusion trial-process requirements.
Technical Parameters
Description |
A20-20 Parameters |
SY12-12 Parameters |
Dimension LxWx H |
2,645x620x900 (mm) |
2,000x1,200x650 (mm) |
Production Capacity |
1 - 3 (tons / hr) Adjustable |
0.25 - 0.3 (tons / hr) Adjustable |
Degree of Vacuum |
≤ - 0.092 (MPa) |
≤ - 0.092 (MPa) |
Augers Nominal Diameter |
200 / 200 (mm) |
120 / 120 (mm) |
Extruding Pressure |
1.5 (MPa) |
1.0 (MPa) |
Motor Power |
11 (kw) |
7.5 (kw) |
Weight |
≈ 1750 (kg) |
≈ 430 (kg) |
Other products for making tile as follows
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Packaging and Shipping
