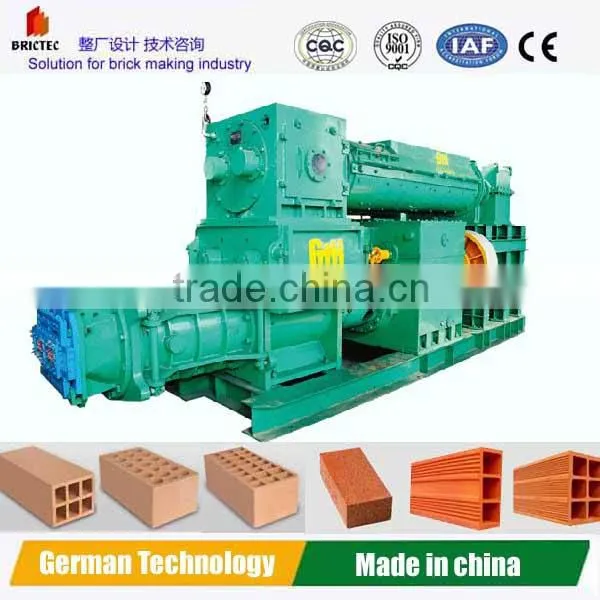

VP70 Vacuum Extruder
As high-performance vacuum extrusion equipment, it is largely used in extrusion forming of various hollow bricks made from coal gangue, shale, coal dust and other industrial solid wastes. It is permitted to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. It is equipped with an upper reducer that adopts hardened faced gears, and a lower planet-gear speed reducer, and is one of the most advanced vacuum extrusion equipment in the world.
Technical Parameters of Vacuum Extruder for brick production:
Specification |
VP45A |
VP45B |
VP50A |
VP50B |
Output (standard pcs/h) |
10000—14000 |
10000—14000 |
12000—16000 |
12000—16000 |
Diameter of Extrusion Reamer(mm) |
450 |
450 |
500 |
500 |
Rotary Speed of Extrusion Reamer(r/min) |
24(Customizable) |
24(Customizable) |
28(Customizable) |
28(Customizable) |
Distribution Power (kW) |
110+55+7.5X2 |
110+55+7.5X2 |
132+55+7.5X2 |
132+55+7.5X2 |
Allowable Extrusion Pressure(MPa) |
4 |
3 |
4 |
3 |
Vacuum(MPa) |
-0.096 |
-0.096 |
-0.096 |
-0.096 |
Model of Upper Reducer |
Z335 |
ZQ65 |
Z335 |
ZQ65 |
Model of Lower Reducer |
N560 |
ZQ100 |
N560 |
ZQ100 |
Model of Vacuum Pump |
SK-6 |
SK-6 |
SK-6 |
SK-6 |

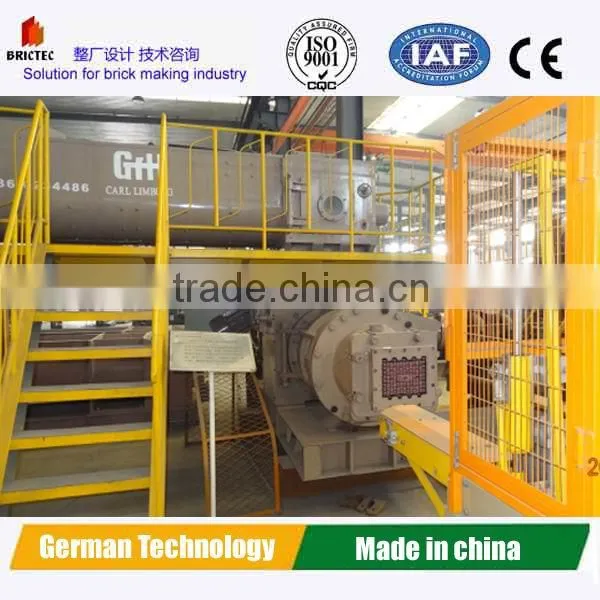

Technological Process of the whole brick&block production line:
Company Information
1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.
The business scope of our company is:
u Turnkey project of brick plant
u Design & Build Complete Modern Brick Plant
u Consultancy Services for Brick Plant
u Retrofit and Modernize of Existing Brick Plant
u Supply Brick Making Machinery
u Build Dryer & Kiln
Other machines for brick making
Packaging and Shipping
We ,Xi’an Brictec Engineering Co., Ltd.,are professional company (Website: )majors in consulting,design, brick making equipment supply ,erection for Brick making plant.
We could give you integrated and optimized the resource allocation, and customized your own proposal.
