PPCS pulse jet bag filter can be used in the broken cement, packing ,mill work and the other to collect dust, air purification. If other flammable coal dust for the collection of additional fuel explosion prevention measures, the filter structure must also change. Except for the cement industry this series filter, but also applies to the metallurgical ,chemical ,machinery and other civilian boiler exhaust ESP.
The series filter material of filter bags ,usually polyester PREPARING allow continuous use temperature of less than 120 °C,if the temperature should choose other filters, exhaust cooling measures to be taken before entering the filter.

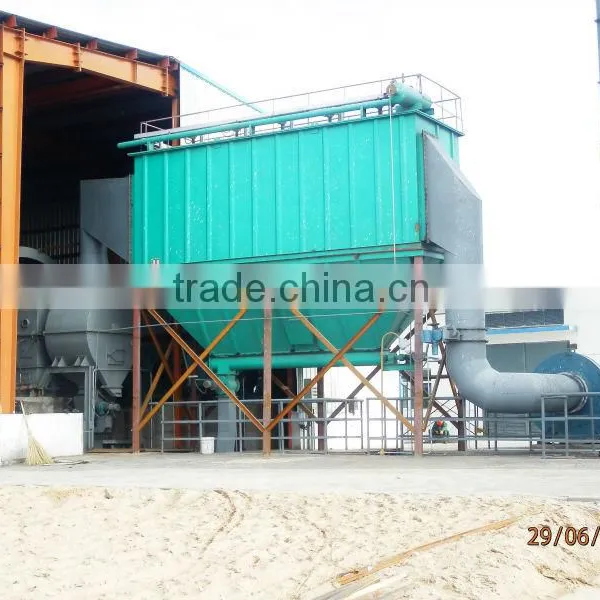

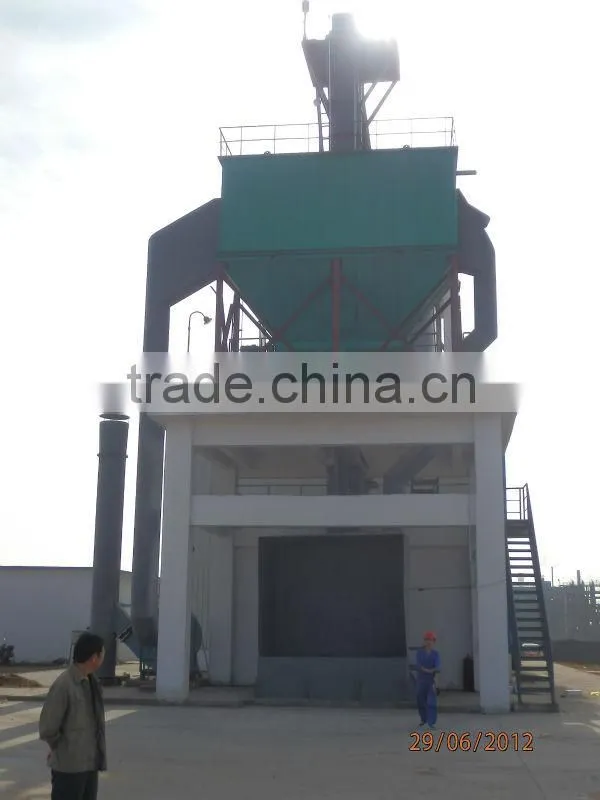

PPCS pulse bag filter for outdoor installation by several different kits, comprising a variety of different specifications. There are eight species of the whole series of specifications that are 130mm in diameter collector ,collector length of 2000mm.
PPCS pulse pressure or vacuum bag filter can operate without any change ion their body structure.ESP reach its efficiency was 99.9%, and gas purification , the dust concentration is less than 100mg/m3(Standard). The main technical performance of the filter ,respectively Series schedule.
PPCS pulse jet bag filet as for the cold , when the outdoor temperature heating <-25°C,the need for additional heating devices.
Main technical parameters
|
Model Spec |
PPCS32-3 |
PPCS32-4 |
PPCS32-5 |
PPCS32-6 |
|
Air volume(m3/h) |
6900 |
8930 |
11160 |
13390 |
|
Filtering area(m/min) |
1.2~2.0 |
||||
Total filtering area(m2) |
93 |
124 |
155 |
186 |
|
Net filtering area(m2) |
62 |
93 |
124 |
155 |
|
No. of chamber(pcs) |
3 |
4 |
5 |
6 |
|
Total No. of filtering bag(pcs) |
96 |
128 |
160 |
192 |
|
Inlet dust density |
<200g/m3 |
||||
Outlet dust density |
<50mg/m3 |
||||
Resistence of bag filter(Pa) |
1470~1770 |
||||
Shell negative pressure(Pa) |
5000 |
||||
compressed air |
Pressure(Pa) |
(5~7)×105 |
|||
|
Air consumption m3/min |
0.27 |
0.37 |
0.46 |
0.55 |
|
|
Pulse Valve (electric valve) |
No.(Pcs) |
3 |
4 |
5 |
6 |
Spec.(inches) |
1 1/2” |
||||
|
Lift Valve (cylinder) |
No.(Pcs) |
3 |
4 |
5 |
6 |
Spec.(mm) |
Dia. Of lift valve Φ460mm, Dia. Of cylinderΦ63mm |
||||
Star discharge valve |
Discharge mouth 300×300mm,high 450mm |
||||
Dust cleaning program controller |
Input and output Voltage 220V |
||||
Spec. of filter bag |
Dia.×lengthΦ130×2450mm |
||||
Thermal insulation material(m2) |
26.5 |
34 |
41 |
48.5 |
|
Total weight(KG) |
2400 |
3400 |
4400 |
5400 |
|
Advantages of Our Coal Vertical Roller Mill
-
Environmental Friendly
With small vibration, low noise, and the overall sealing, the system works under negative pressure, so there is no dust going out. (It meets the requirements of the state environmental protection.)
High Drying Ability
As the hot air inside contacts directly with the material, drying ability is higher, and it saves energy. By regulating the air temperature, it can meet requirements with different humidity.
Simple and Reliable Operation
Firstly, it is equipped with automatic control systems, so remote control makes it easy to operate. Second, it is equipped with one device, which prevents the roller from contacting with the liner directly, and avoids the destructive impact and severe vibration.
Our Services of Coal Mill
Pre-sales Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
After-sales Service
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments;
5. Training the first-line operators on site;
6. Regularly visit clients to solve production problems;
7. Providing life-long maintenance service;
8. Providing technical exchanging;
FAQ
How to choose the suitable grinding mill?
1. Know the hardness of your own ore.
2. Choose the energy-saving grinding mill to the great extent.
3. Know the ore fineness required.
4. Choose the right diameter and length of the grinding mill according to the output requ irement.
5. Buy it from the professional grinding mill manufacturer relative to your ore which would be best.
6. The manufacturer should hold the market share in the place where your enterprise located.

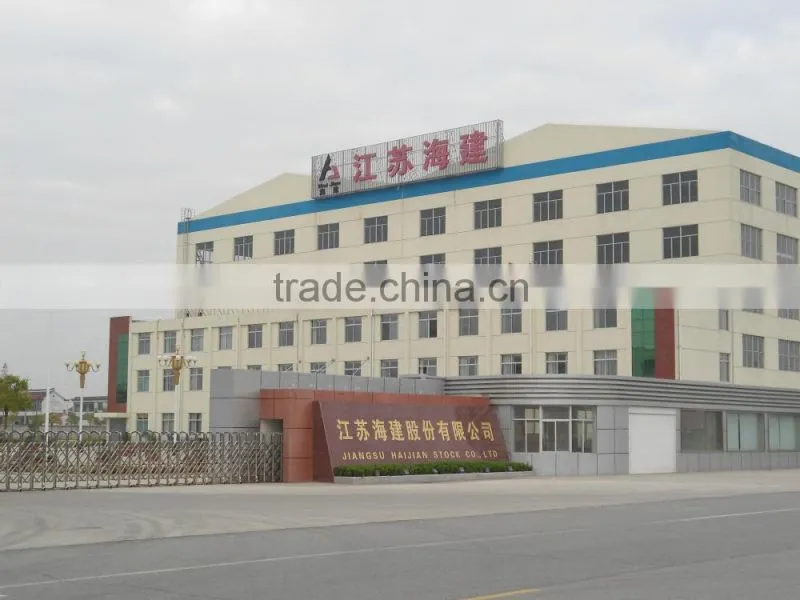

Brief Introduction
Haijian Company is situated in the world-famous Yangtze River Delta Economic Zone, Shanghai Economic North circle---Jiangsu Haian. This boasts lots of picturesque sceneries and outstanding talents. The company is 200 kilometers away from Shanghai---the cosmopolis---to the south and from Nanjing ---the capital of Jiangsu Province to the west.
Haijian, established in 1970, was reformed into a provincial public run shareholding enterprise in November 2003. It is staffed by 500 workers, 25% of whom are engineering technical management personnel. The company covers an area of 100000 square meters, with a building area of 55000 square meters. It possesses fixed assets worthy of close to 0.1 billion yuan, and it holds own 65 million yuan in all. It machines and cuts 50000 tons of produces every year.
Warmly welcome to Haijian to conduct instruction, negotiation, investment and cooperation for our common development and prosperity!
Add: No.198 Shuanglou Road Qutang Town Haian County,Jiangsu, PRC
Tel:0086 513 88792415
Fax:0086 513 88792415
Skype : zhblzhang
Website:
