Help CenterJDW Electrostatic Precipitator
Related Products
-
Electrostatic Precipitator of JIANGSU HAIJIANUS$ 473,300 - 1,415,660MOQ: 1 Set -
Electric CollectionUS$ 702,000 - 2,245,000MOQ: 1 Set
-
Dust CollectionUS$ 7,200 - 15,600MOQ: 1 Set
-
Dust Collector for Cement PlantUS$ 1,000,000 - 60,000,000MOQ: 1 Set
-
Filter Bag for Cement PlantUS$ 7,200 - 15,600MOQ: 1 Set
Specifications
Dust collect machinestable performance
low noise and consumption
stable capacity

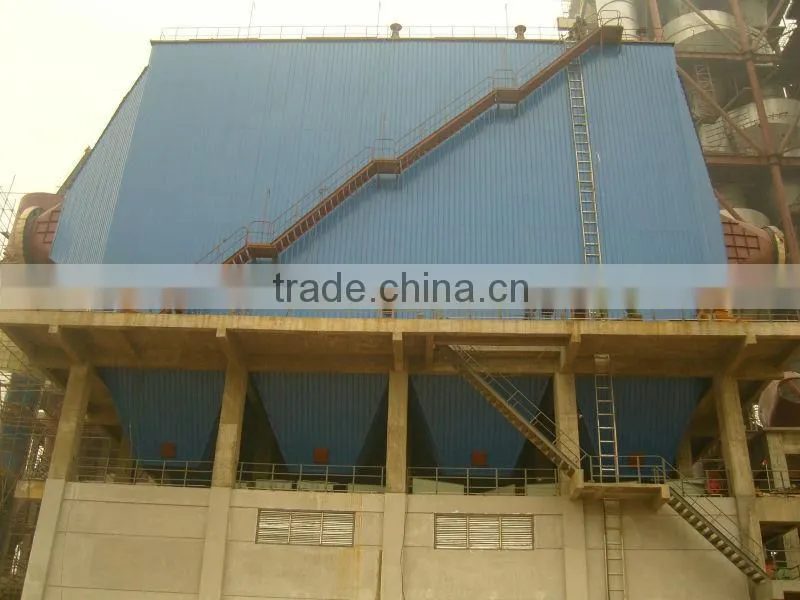

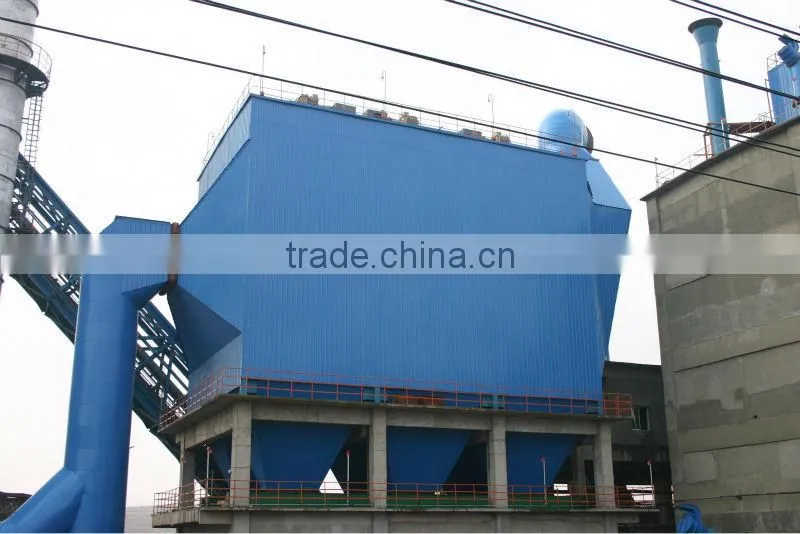

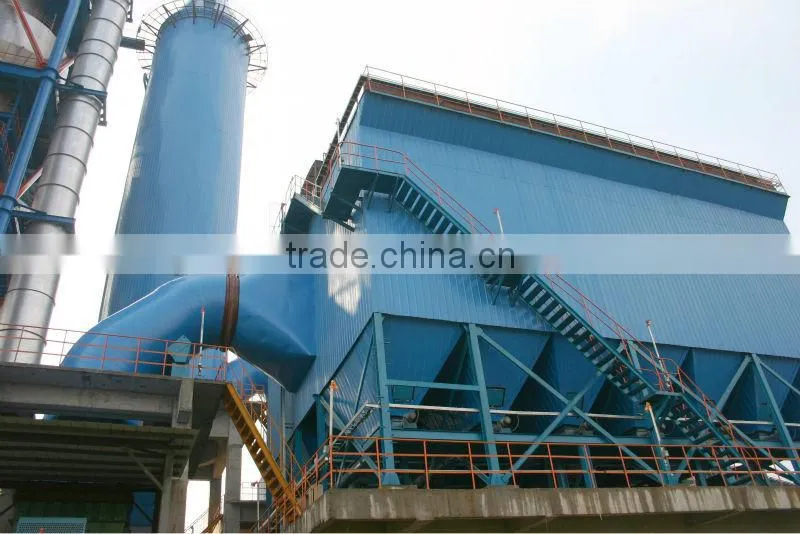

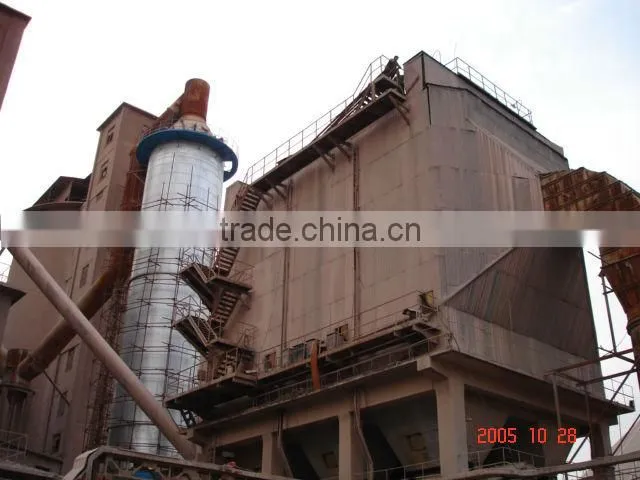

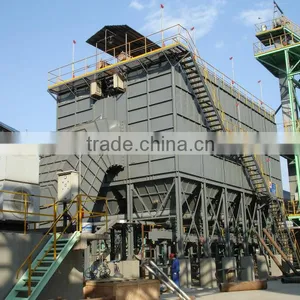

JDW ESP is a series of horizontal energy efficient flue gas cleaning equipment, with high collection efficiency, flue gas handling capacity, long life, low maintenance cost advantages, environmental protection requirements in the current increasing domestic and international the case of ESP have been more widely used.
JDW Series Horizontal ESP is to introduce my company and digest advanced technology, summed up the experience of domestic equipment running out of new product development, with a small resistance, sub-style uniform, stable operation and high efficiency dust removal is widely used electric power, metallurgy, chemicals, building materials, light industry and other industrial waste gas purification and recovery of useful material.
Features
1, complete with computer design, design accurate and reliable.
2, the shell with frame structure, high strength, good stability, according to the different pressure and temperature requirements for the design.
3 ways out of gas and smoke can be arranged according to characteristics of the design process into various forms, process layout flexibility.
4, using the resistance type air flow plus uniform diversion device, the air uniform, and no Clogging phenomenon.
5, precipitation using 480C plate board very, very discharge tube prick using the new RS line, most with the management, discharge uniformity, discharge performance.
6, the discharge electrode connected with the framework of the rational, no dropped calls, disconnected situation.
7, lateral torsion arm hammer rapping, rapping uniform and effective force transmission, cleaning easy.
Parameter |
Model number |
84-6 |
84-7 |
84-8 |
84-9 |
84-2×5 |
84-2×6 |
84-2×7 |
84-2×8 |
84-2×9 |
84-2×10 |
|
Handling input air(m3/h) |
59300 88920 |
69100 105000 |
77000 116000 |
89000 133000 |
96000 145000 |
118000 177000 |
138000 207000 |
154000 232000 |
178000 266000 |
192000 290000 |
||
Filtering area(m2) |
1235 |
1440 |
1613 |
1850 |
2015 |
2460 |
2880 |
3226 |
3700 |
4030 |
||
The quantity of filtering bag |
504 |
588 |
672 |
756 |
840 |
924 |
1176 |
1344 |
1512 |
1680 |
||
Filtering wind speed(m/min) |
0.8~1.2 |
|||||||||||
Resistance(Pa) |
<1500 |
|||||||||||
|
Input dust-laden consistency (g/Nm3) |
<1000 |
|||||||||||
|
Output exhausting consistency (mg/Nm3) |
<50 |
|||||||||||
Supporting pressure of the precipitator |
8000 |
|||||||||||

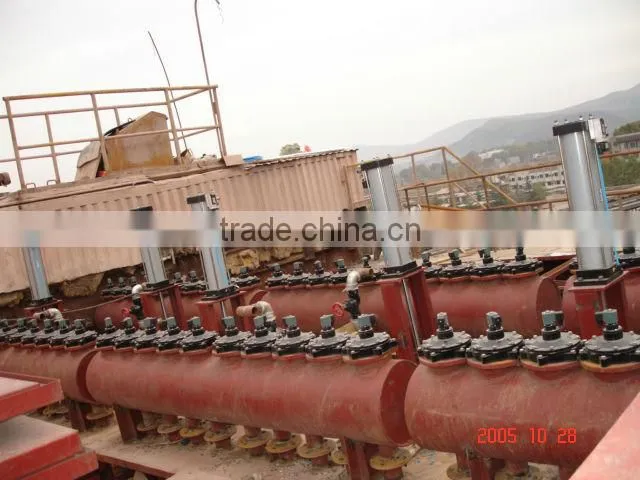

Compressed air used to clear ash |
Pressure(MPa) |
0.2~0.4 adopt flooded pulse |
||||||||||
Consumption(m3/min) |
1.5 |
1.5 |
1.5 |
1.5 |
1.8 |
1.8 |
1.8 |
2.0 |
2.2 |
2.5 |
||
Consumed power(KW) |
6 |
8.5 |
8.5 |
10.5 |
12 |
12 |
17 |
17 |
21 |
21 |
||
Weight of device(T) |
30 |
35 |
40 |
45 |
50 |
60 |
70 |
80 |
90 |
100 |
||
WARMLY WELCOME TO OUR COMPANY TO HAVE A VISIT
