**Production Description**

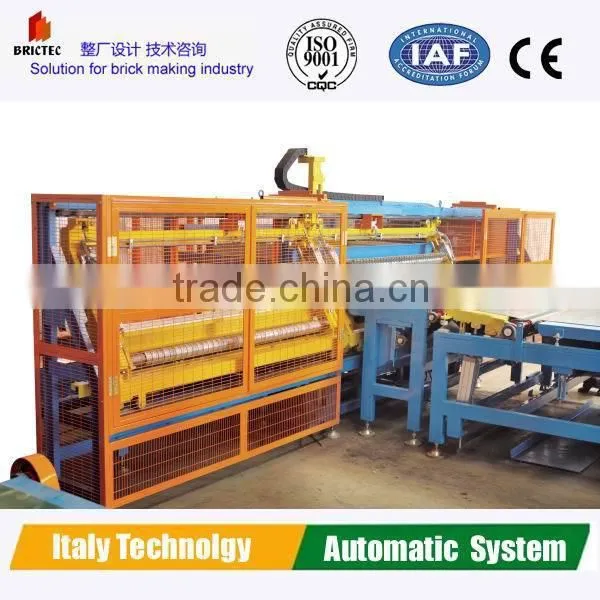

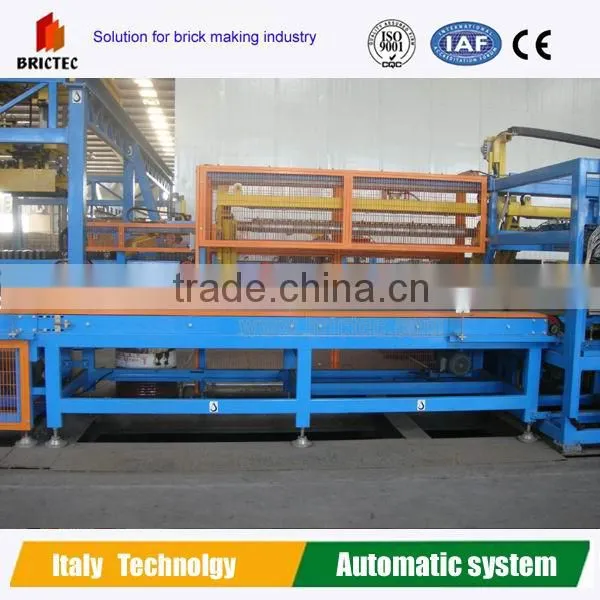

Slug Cutter SQT500*300 is mainly used for cutting the material which are extruded from vacuum extruder in certain length .The entire working process is under automatic control of PLC.
Its cutting wires are pneumatically tensioned, and the space between wires can be adjusted according to the requirements of making different products. In order to keep wire sharp, sections flat and service life of wires have been improved. Before cutting, a sensor equipped on the driven shaft of conveyer can detect the speed of material from the extruder to the control center accurately, and the cutting frame is driven to move simultaneously with the extruded material, which ensures the cutting sections to be perpendicular to the bottom surface, and reduce the waste.
**Technical Parameters**
Specification |
Cutting Frequency (time/min.) |
Cut billet length(mm) |
Working Pressure (MPa) |
Power (kW) |
Dimensions(mm) |
|
SQT500×300 |
30 |
>500 |
0.6~0.8 |
Single Power |
Total Power |
4300×1140×2065 |
2.2 |
5.75 |
|||||
1.5×2 | ||||||
0.55 | ||||||
**Packaging & Shipping**
Wooden-packing for spare parts of brick making production line, such as aguers, mixing paddles, air compressor is easy damage, it necessary packed in wooden box. Normally, we ship the goods by MAERSK,MSC,CMA-CGM etc. the big shipping company guarantee goods in safety.
**Our services**
Before sale: Give some advices to customer on how to build a new-brand brick plant and choose the best and economic plant according to the local situation for recovering the investment within a short time; We are also responsible for the offer, flow chart, and detailed information of each machine.
In sale: We will send the technicians to coach brick making machines installation and debug machines. We also train the local operators till they can fully control them.
After sale: Regularly visit customers, solve all the problems with the machine and take advice from customers.
**Company Introduction**
We, Xi'an Brictec Engineering Co. Ltd., not only majors in sale of brick making machines, but also concentrates on the overseas and domestic fired brick designing, kiln designing, factory building designing and turn-key project. Our company provide solutions to brick & tile making industry by a group of professionals who have more than 25 years experience in the brick and tile making process industry. There are 6 professor-level engineers and 10 with an high title.
We cooperates with brick machinery factories to supply customers with the most suitable machines. Until now ,we have accomplished over 50 brick projects of engineering, trading, technical supporting in Asia, Africa, South American countries. We also have successfully constructed over 20 production lines in China.
**FAQ**
1.Q: How many kinds of brick making machinery?
A: In a brick making production line, there are usually 4 processes:
Raw materials preparation, includes: box feeder, primary rolling crusher, fine pulverizing rolling crusher and etc.
Molding process, includes: extruder, brick cutter and etc.
Drying process, includes: drying cars, operation equipment.
Firing process, includes: kiln cars, operation equipment, fans and etc.
2. Q: Raw materials for making bricks?
A: Clay, shale, coal gangue, construction waste, city waste, fly ash and etc.
3. Q: What do I need to prepare before building a brick factory?
A: Land investigation, investment budget, water and electricity, government licenses, find a qualified supplier, make contract, initial design and etc. There can be a lot to prepare, but with the help of BRICTEC, you can get clear guidance and one-stop service the whole time.
4. Q: Does your company undertake turn-key projects?
A: Yes, we have turn-key projects in many countries, such as Russia, Kazakhstan, India, Iran, Bangladesh and so on
