Specifications
Powder Coating Multipoint Sashlock Case Door Lock Body Art.11.510(1)Centre: 92mm
(2)Backset: 28mm,32mm
MOQ:1000pc

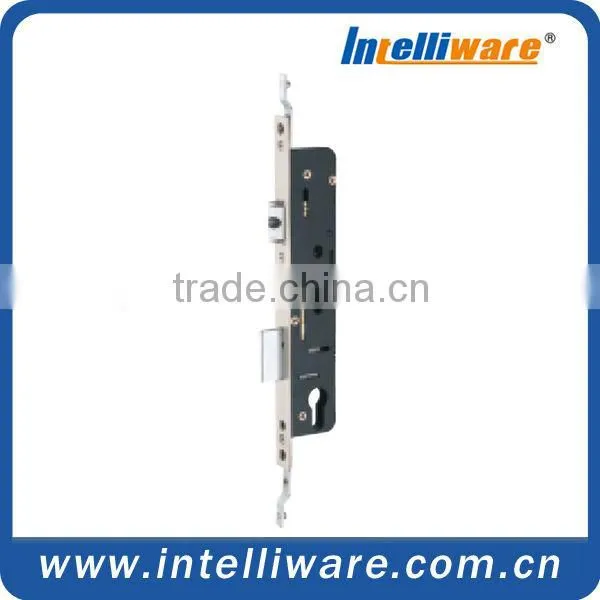

Product: Powder Coating Multipoint Sashlock Case Door Lock Body Art.11.510
Features:
Euro Profile Multipoint Sashlock Case For Alu Profile Door:
*Centre: 92mm
*Backset: 28mm/32mm
*Forend Length: 271mm
*Forend Width: 20mm
*Follower: 8x8mm by steel zinc plated
*Solid Deadbolt with 1 turn.
*Suitable for multipoint locking alu profile broken-bridge door.
*Suitable for unsprung fully reversible level furniture.
*Front & striking plates available in Satin/Polished stainless steel
*Case is made out of mild steel with black powder coated.
*Latchbolt designed with easily reversible mechanism
*Fixing with nickle plated screws
Operation:
After closing door, lift up the level furniture to throw out the up & down espagnolette bolt
then, turn the key via euro profile cylinder to throw out deadbolt.
Now the door is locked,and the latchbolt is not allowed to be withdraw by level furniture

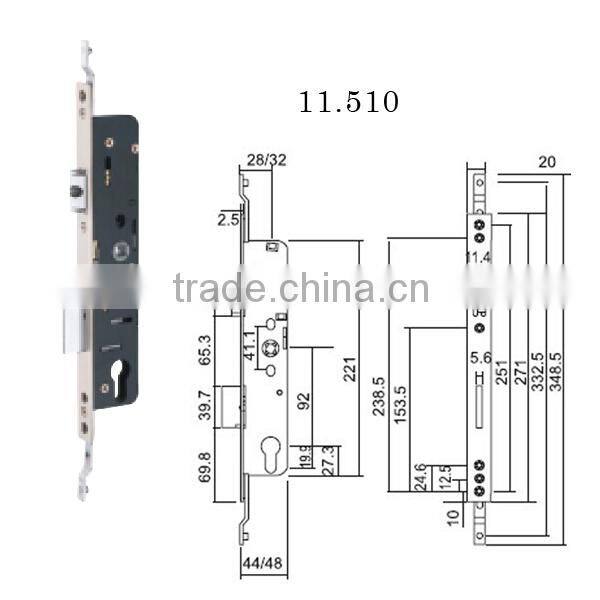

Photo and Drawing:
Backset Forend Surface Art. No.
28mm Rectangular SSS 11.510.01
32mm Rectangular SSS 11.511.01
