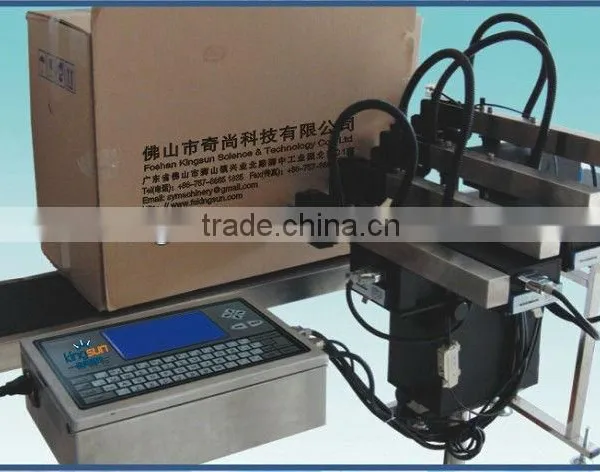

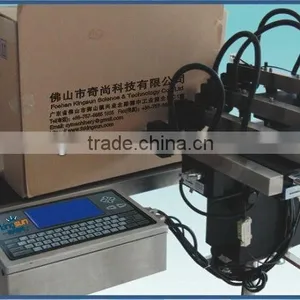

High Resolution Inkjet Printer Machinery

Specifications

1.Printing content:date,time,batch number,classes and serial number.
2.Ink color :black,red,white.

Kingsun High Resolution Jet Printer Product Features

*  The host and ink system are designed integration, space-saving and economical.

*   Seven types of fonts is available for customers optional, the machine acquiesce preset in Song typeface.

*   It is able to sprayed fifteen lines of English or figures, eight lines of Chinese characters, able to sprays different size of the characters, a dual-purpose machine.

*   Flash spray features, long time standby without blockage of the nozzle.

*   Able to input any length of the text or graphic, text and graphic input without any limit of no fixed proportion.

*   The machine can be completely separated from the computer, operating independently, humanized appearance design, stupid type operation.

*   USB interface, available of the pictorial or trademarks from computer, and so on.

*   Sensor, Synchronizer, printing status indicator displays.



*   If you have a specific request, we are able to offer you a tailor-made product







Kingsun High Resolution Jet Printer Performance and Parameters

1. Application Range:

* Building and decorative materials surface: ceramic, tile, stone slab, artificial stone slab, wooden board, gypsum board, aluminium product, aluminium alloy, plastics-steel doors and windows, plastics pipe, steel plate, and so on.

* Food and others external packing: plastics packing bag, foil wrapper, beverage bottle and caps, pill box, all kinds of box and carton, and so on.

* Industry and other packing: mobile casing, motors, transformers, meter panel, circuit boards, explosive packaging, and so on.





2. Jet printing object materials: metal, plastic, wood, aluminum foil, carton and building materials, and so on.



3. Printing content: date, time, batch number, classes and serial number, it is automatically change the serial number.



4. Storage information: up to a maximum of 100 message, 100 patterns, capacity of each message or patterns is up to 200 characters



5. The character height:it is able to print 1mm~18mm high, 1~8 lines of the characters.



6. Jet printing accuracy: 200 DPI



7. Jet printing distance and speed: the nozzle to spraying objects is 5-10mm, and the speed is up to 35 m/min, the speed does

not change due to increasing the number of rows.



8. Printing direction: nozzle can be rotated; forward, reverse, adjustable vertically down; in the program , it can be adjusted up and down turn, flipped around



9. Ink color: black, red, white, and so on.



10.The use of ink: quick drying green ink or oil-based ink, no need external gas source and diluent



11.External interface: USB, Synchronizer, photoelectric eye, a data line



12. Machine size: 34.7x22x10cm;   packing size: 66x43x31cm;   gross weigh: 13KG



13. Machine bracket: adjustable up and down 50-75cm, fine adjustment of forward and backward.



14. Parameters of power supply: AC 110V -220V    System power: average power consumption less than 100W



15. The use of the environment; temperature 1°C-37°C; humidity 30%-70%



16. Optional accessories:synchronizer, fiber optic electric eye (identify various colors), transfer belt, plus bracket feature up spray
