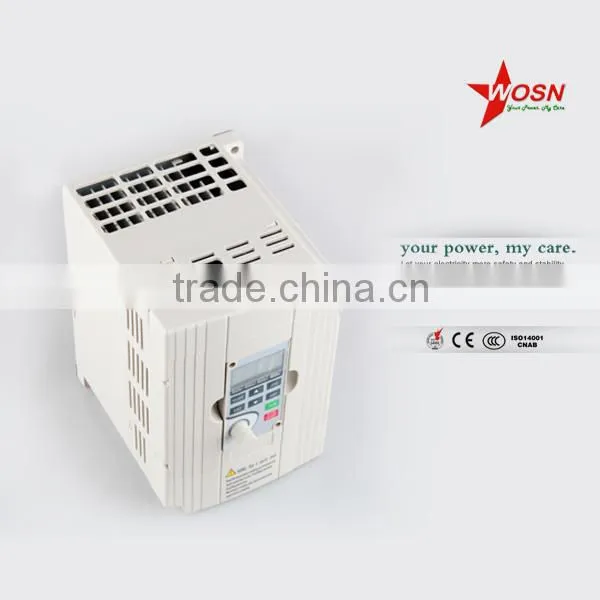

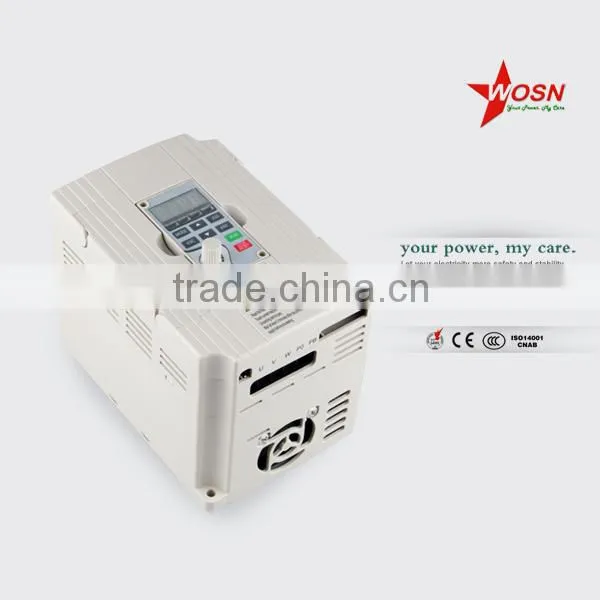

Help Center4kw Frequency Inverter ac Drive/vfd,vsd
Related Products
-
Single Phase 0.37kw ac Drives Frequency InverterUS$ 97.5 - 108.69MOQ: 1 Piece -
0.75kw 1hp 220v Frequency Inverter ac Drive/vfd,vsdUS$ 105 - 125MOQ: 1 Piece
-
50hz to 60hz High Performance Single Phase VFD/VSD/frequency Inverter/ac DriveUS$ 144.8 - 164.8MOQ: 1 Piece
-
50hz to 60hz High Performance Single Phase VFD/VSD/frequency Inverter/ac DriveUS$ 144.8 - 164.8MOQ: 20 Pieces
-
Single Phase 0.37kw ac Drives Frequency InverterUS$ 97.5 - 108.69MOQ: 1 Piece

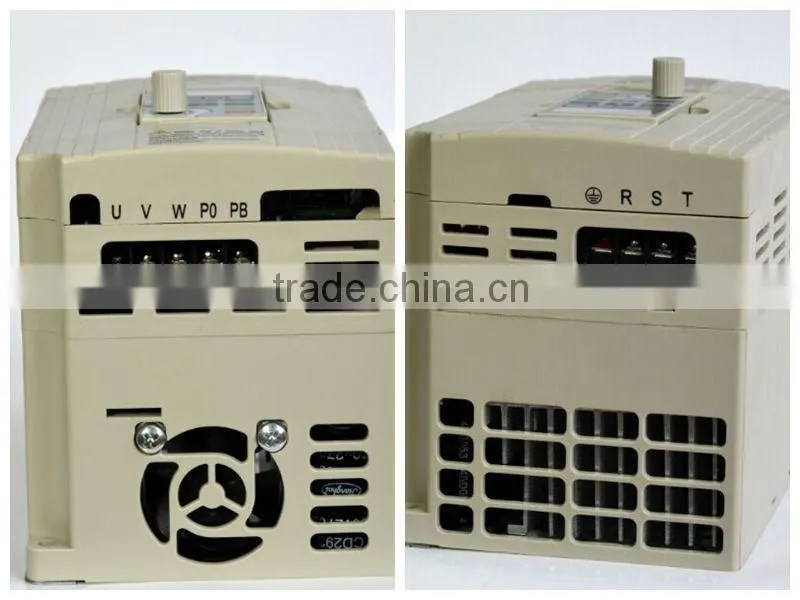

QD200 series is a universal frequency converter, which can be widely used in various types of induction motor speed control. Products are designed based on 32 bit DSP, adopting international advanced vector control algorithm with high performance and high precision motor drive control to improve its quality reliability and environment adaptability at the same time, strengthen easy operation for user. It achieves function optimization, more flexible application, and more stable performance.
(1) Double specifications of the design: heavy load model (150% load 1 minute) and light load patterns (120% load 1 minute) dual specifications;
(2) The use of Germany's fourth generation Infineon IGBT module combined with the characteristics of 175 ℃ maximum junction temperature, which adopts innovative PWM modulation method to further reduce the switching loss and makes the inverter run upto the 50 ℃ ambient temperature without derating;
(3) Advanced independent air duct design prevents pollutants from entering the electronic system area and efficiently improve protection effect to adapt to all kinds of complicated and worse site condition and prolong equipment service life; meanwhile; independent air duct could effectively solve the heat dissipation problem of control cabinet;
(4) Compact size and support parallel installation to save installation space;
(5) Hardware current limiting function could ensure QD200 frequency inverter to run at hardware current limitation value when it reaches software over current point to reduce the probability of over current protection;
(6) Adopt advanced flux estimation technology, and speed estimation technology and so on to realize high-performance sensorless speed vector control so as to unleash motor’s best performance;
(7) Parameter autotuning function: static parameter autotuning function;
(8) Built-in Modbus communication protocol to make automatic system integration convenient;
(9) Its wide voltage range design ensures QD200 frequency inverter’s excellent adaptability to grid fluctuation;
(10) Thicken three-anti paint (anti-humidity, anti-dust, anti-fungal) protection to enforce its reliability in the worse working environment.

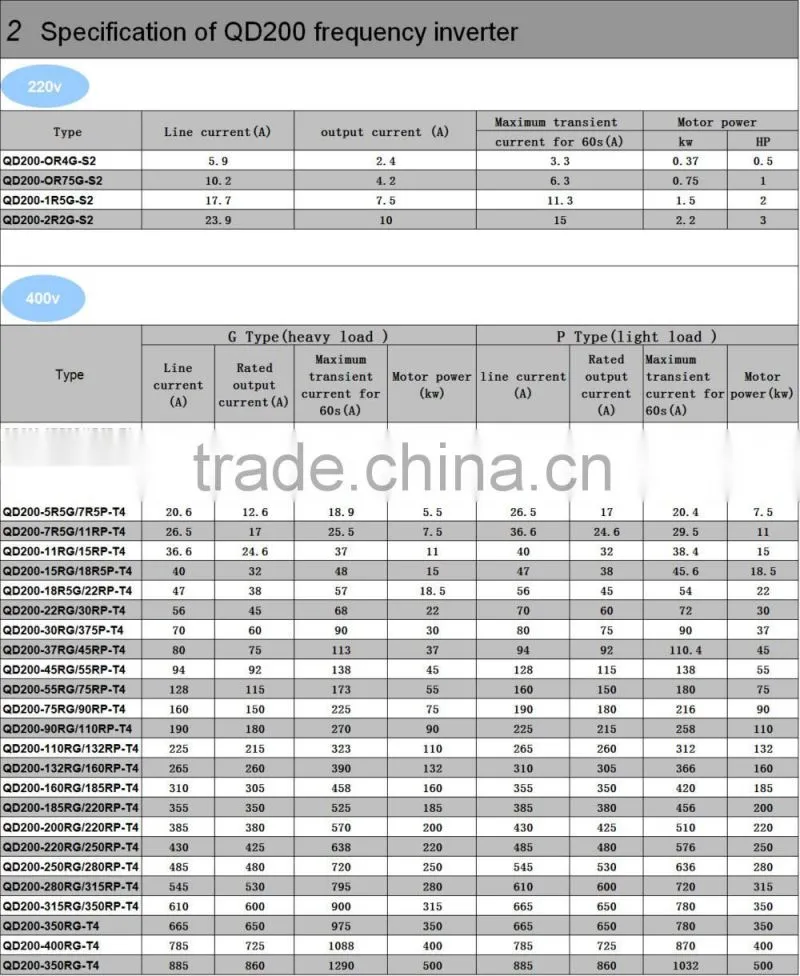

| ITEM | SPECIFICATIONS | |
Main Input |
Rated voltage and frequency | Single-phase 200V class: 200V-240V,50Hz/60Hz |
| Allowable value of change | 3-phase 400V class: 380V-480V , 50Hz/60Hz | |
| Main Output | Output voltage | Maximum output voltage equals to input voltage |
| Output frequency | 0.5 Hz to 400 Hz | |
| Overload capacity | 150% of rated output current for 60s, 200% of rated output current for 2s | |
| Control Performance | Modulation mode | 3-phase PWM, 2-phase PWM |
| Control mode | V/f control for constant torque, V/f control for quadratic load, vector control without PG (open loop control),Energy-saving | |
| Setting method of run command | Outer terminal, keyboard panel or serial communication | |
| Setting method of speed command | Analog setting, keyboard, serial communication, UP/DOWN speed setting from external terminal | |
| Speed setting resolution | Keyboard: 0.1 Hz | |
| Analog setting: 0.05/50Hz (10bit) | ||
| Speed control precision | V/f control:±2% | |
| vector control without PG (open loop control): ±0.2% | ||
| Speed control range | V/f control 1:40 | |
| vector control without PG (open loop control) 1:200 | ||
|
Acceleration and Deceleration Time |
0-3200.0s | |
| switching frequency | 1.5 kHz ~ 12 kHz, according to junction temperature automatically reduce the switching frequency | |
| Analog Input | Number | 2 ways: AI1,AI2 |
| Type | DC voltage or DC current | |
| Maximum input range |
AI1: 0 to 5VDC, 0 to 10VDC, 0/4 to 20mA DC receivable AI2: 0 to 10VDC or PTC probe input receivable |
|
| Analog Output | Number | 1 way: AO1 |
| Type | DC voltage or DC current | |
| Maximum input range | Voltage output: 0 to 10V, Current output: 0/4 to 20mA | |
| Logic Input | Number |
0.75kw-11kW:LI1,LI2,LI3,LI4,AI1,AI2 15kW-500kW:LI,LI2,LI3,LI4,LI5,LI6,LI7,LI8,AI1,AI2 note:2 virtual logic input, capable of configuring AI1 and AI2 into logic input port (positive logic or negative logic) |
| Type | Source or Sink | |
| Maximum input range | 0-24VDC | |
| ITEM | SPECIFICATIONS | |
| Logic Output | Number |
0.75kW-11kW: pulse signal output (LO-CLO),relay output 1(T1A,T1B,T1C) 15kW-500kW:pulse signal output(LO-CLO),relay output 1,2(T1A-T1B-T1C,T2A-T2B-T2C) |
| Pulse Signal Output | OC,output frequency,currentoutput,ect other function | |
| Relay Output |
RA-RB-RC, including a NO contact and a NC contact Maximum switch capacity: T1A,T1B: 3A at 250VAC, or 4A at 30VDC T2A,T2B: 2A at 250VAC or 30VDC |
|
| Serial Communication Interface | RS485 interface supports Modbus protocol. | |
| Display | 4-digit LED Digital Display | For display of frequency setting, output frequency, fault code and parameter setting etc. |
| Environment | Standard | Development of QD200 series frequency inverters follows strict international standards and relevant recommended IEC and EN standards for control devices, especially IEC/EN61800-5-1 and IEC/EN61800-3. |
| Altitude | Derating unnecessary when altitude is 1000m or below (Derating necessary at altitude higher than 1000m) | |
| Ambient Environment |
0.75kW-11kW: Reliable operation at -10 ~ 50°C without derating. When top protective cover is taken off, the environment temperature can be as high as +50 °C. Above +50 °C, the current drops by 2.2% for each rise of 1 °C in temperature. 15kW-500kW: Reliable operation at -10 ~ 40°C without derating. Storage: -25 ~ 70°C |
|
| Humidity | No condensed water or drip at 5 ~ 95%, In accordance with IEC60068-2-3 | |
| Impact Strength | 15gn for continuous 11ms, In accordance with IEC/EN60068-2-27 | |
| Maximum Antipollution Capacity | Class 2, in accordance with IEC/EN61800-5-1 | |
| Structure | Protection Level | Top: IP41 (without removing the protective top cover). Other parts:IP20 |
| Cooling Method | Forced Air cooling | |
| Installation Method | Wall mounted | |
