Filter belts are used in specialized dewatering process equipment for separating solids from liquids in a slurry. It is used in the processing of minerals, ores, chemicals, dyes, foodstuffs, coal and paper as well as in flue-gas desulfurization systems and in fertilizer production etc.

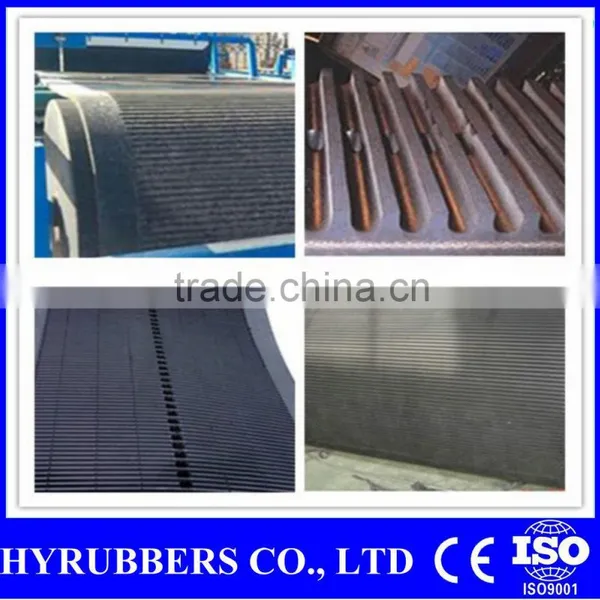

Our filter belts with fabric-free zones, these belts have the entire carcass removed from exposed areas, usually around the drainage holes and often the edges of the belt. The carcass of the belt is safely protected by a wall of solid rubber. Our filter belts are also with the properties of high-strength, low-elongation, laterally stable, good chemical resistance, high temperature stability, good aging- and sun-cracking-resistance.
Production Range:
Belt W idth : 0-3400 mm
Length: 20-200m
Total Thickness: 20-50 mm
Top Cover Rubber: 10-30mm
Bottom Cover Rubber: 5-15 mm
Rubber Qualities: Normal, Heat resistant, Acid and alkali resistant, Oil resistant.
packaging:packed in rolls and covered by fabric water-proof cloth,or clients' requirement also be respected
shipping:within 10-20 days,or depends on the quantity
HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.
The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.
The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.
Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.
Adhesion and elongation of the belt:
|
Belt carcass |
Adhesive strength |
Elongation |
|||
|
Between plies N/mm |
N/mm Between ruber and carcass |
Longitudinal %>= |
Longitudinal elongationa at reference load %<= |
||
Rubber thickness |
Rubber thickness |
||||
EP canvas |
>=4.50 |
>= 3.20 |
>=3.50 |
10 |
4.0 |
Cover properties of the belts:
Cover grade |
Tensile strength |
Elongation |
Abrasion |
Change Rate of tensile strength and elongation after aging |
|
Mpa |
kgf/cm2 |
% |
mm3 |
% |
|
Heavy(H) |
24 |
240 |
450 |
120 |
-25~+25 |
Medium(M) |
18 |
180 |
400 |
100 |
-25~+25 |
Light(L) |
15 |
150 |
350 |
200 |
-30~+30 |
Accordance with different applications, we can produce different grades of belt as following:
1) Heat Resistant Belt
According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120℃ grade (HR120), up to 150℃ grade (HR150), up to 180℃ grade (HR180) and up to 200℃ grade (HR200) .Generally used by cements and steel works.
2) Abrasion Resistant (≤90mm3) / super abrasion resistant (≤60mm3) Belt
Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.
3) Oil Resistant Belt
Generally used for wood, papermaking, oil-based grain transportation.
4) Acid/Alkali Resistant Belt
Always used in Chemical materials transportation.
5) Cold Resistant Belt
The belt can work in some cold environment, like Northeast of China, Russia and North European countries.
6) Fire Resistant Belt
Always used in underground coal mining, steel works and so on.
7) conventional Belt
Generally used for small powder, grain and block materials.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
Product name: Fabric Conveyor Belt
