Specifications
dmx led strip1. very popular good quality;
2.DC5V DC12V
3.IC WS2811 dmx led strip
4.RGB dream color
Star product ws2811 DC5V 12V sm5050 30leds dmx led strip
ITEM:STL-FB-5050-RGB-WS2811-150
| Sourcing | SMD5050LED | Board | FPCB |
| Chip | TW Epistar and other chips of TW | Input voltage | AC100-240V |
| Gray Level | 256level | LEDS | 30leds per meter |
| LED Viewing Angle | 120° | Emitting Color | RGB,can be controlled freely |
| Working voltage | DC5V 12V 24V | Power | 9W per meter |
| FPCB Size | 5000*12*4mm | FPCB Color | White,Yellow and Black |
| Packaging Details | 5m/roll in an anti-static bag | Weight | 0.15kg per roll |
| Carton | 50 reel /carton, carton size is 450*330*310(mm), the weight is 8.5KG per carton | ||
| Waterproof | Non waterproof(IP20), Resin dripping(IP65), Outer tube(IP67),Outer tube and silicone injection(IP68) | ||
| Kindly reminder:We can provide dream color controller and power. | |||
1.Control principle:an IC control to one LED and they form a group of loop, the controller is controlled by the controlling circuit of IC inside the FPCB, so as to control the LED strip changes with different effects;such as flicker, chasing, jumping, clockwise and counterclockwise happy, Happy Valley, monochromatic running horse, discoloration happy, single chase from A to Z, flow, simulation of lightning; change effect this lamp strip is not limited to 94 kinds of effect of current controller builtin, can according to customer needs, self prepared; lined screen can display text, forms, letters, pictures, animation, etc..
2.Environmental safety:using high quality bright SMD 5050 LED. With small power consumption,small heat, no glare, impact resistance and other characteristics. Low voltage DC 5V, 12 volt power supply, high safety and reliability.
3. Many colors according to customer’s requirement,it can be controller freely by user.
4. Long service life: the average life of 50000 hours.
5. Cutting, welding and convenient Freedom: each group of LED to form a loop, along upper tangent arbitrary truncation and welding to various strip lights according to customer requirements of the length.
6.Soft: using FPCB plate soft as a substrate, optional docking, bending, cutting and arbitrary fixed in the concave convex surface.
7. Light and thin: suitable for installation in the narrow space inside.
1) Continuous length flexible LED light strips
2) 5 meters/roll, cuttable every 5cm
3) Runs on 12-volt systems like solar cell charged batteries
4) Super bright SMD top LED
5) Solid-state, high shock or vibration resistant
6) Major reduction in power costs
7) 120-degree wide angle illumination
8) No RF interference

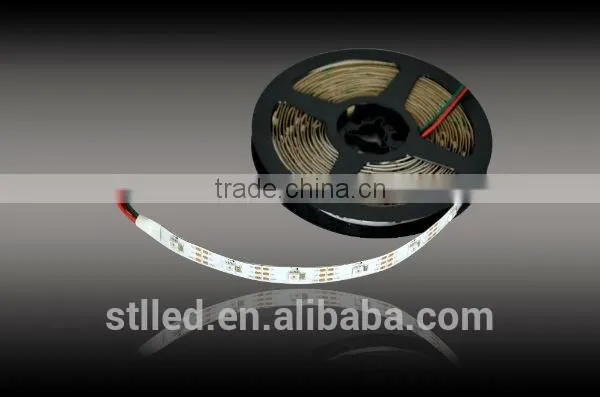

Product Pictures:
1.5m/roll in an anti-static bag, 0.15KG per roll;
2.50 reel /carton, carton size is 450*330*310(mm), the weight is 8.5KG per carton.
