Ws2812b Led Strip SMD5050 60leds With RGB Colors

Ws2812b Led Strip SMD5050 60leds With RGB Colors thumbnail-1
Ws2812b Led Strip SMD5050 60leds With RGB Colors thumbnail-2
Ws2812b Led Strip SMD5050 60leds With RGB Colors thumbnail-3
Ws2812b Led Strip SMD5050 60leds With RGB Colors thumbnail-4
Ws2812b Led Strip SMD5050 60leds With RGB Colors thumbnail-5
Ws2812b Led Strip SMD5050 60leds With RGB Colors photo-1
Ws2812b Led Strip SMD5050 60leds With RGB Colors photo-2
Ws2812b Led Strip SMD5050 60leds With RGB Colors photo-3
Ws2812b Led Strip SMD5050 60leds With RGB Colors photo-4
Ws2812b Led Strip SMD5050 60leds With RGB Colors photo-5
US$ 8 - 10 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
LED
Type:
Flex LED Strips
Input Voltage(V):
DC5V 12V 24V
Contact Supplier Request Quote Chat Now
Shenzhen Smart Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED
Type Flex LED Strips
Input Voltage(V) DC5V 12V 24V
Lamp Power 18W/M
Lamp Luminous Flux(lm) 18-22lm/led
Color Temperature(CCT) 2700k-8000k
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CCC, CE, UL
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name STL
Model Number STL-FB-5050-RGB-WS2812-300, ws2812-300

Specifications

ws2812b led strip
1.high quality but cheap price
2.Eco-friendly,energy-saving
3.2 years warrany

ws2812b led strip SMD5050 60leds with RGB colors



Item: STL-FB-5050-RGB-WS2812-300



ws2812b led strip RGB-WS2812-300  Specifications:



Work voltage

AC85-265V/ DC5V-24V

LEDs

60pcs

IC /M

60pcs

Power / M

18W

Grey Grade

256

Image Pixel

60

Size

5000*10*4 mm

PCB color

Black or White

LED Viewing angle

120 degree

Standard length

5meters/roll

Waterproof

IP20/IP65/IP67/IP68





ws2812b led strip RGB-WS2812-300 Features:



1. Flexibility, can be bent at any angle.
2. Compact size, It has a super slim shape with the width only 10mm.
3. Abundant color modes, up to thousands of color change modes can be put in the programs.
4. Work with LED control system could get Jumping, fading, flashing, dimming mode.
5.Users can cut the strip every 1 LED.
6. Continuous light connection, It can run 15 meters continuously.



ws2812b led strip RGB-WS2812-300 Application:



1.Architectural decorative lighting



2.Arshway,canopy and bridge edge lighting



3.Amusement park,theater and aircraft cabin mood lighting



4.Emergency hallway lighting



5.Stairway accent lighting



6.Auditorium walkway lighting



7.Concealed lighting





ws2812b led strip SMD5050 60leds with RGB colors

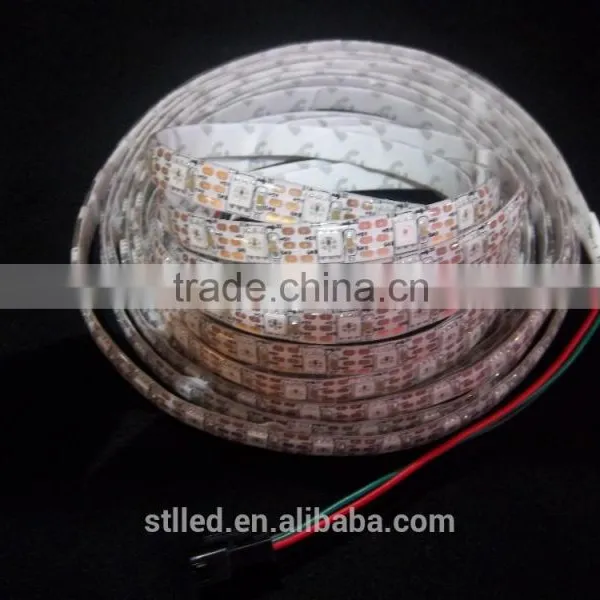

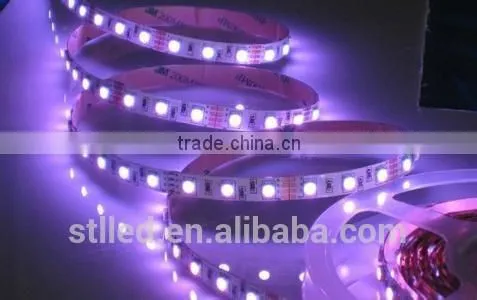

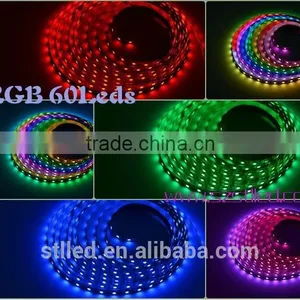

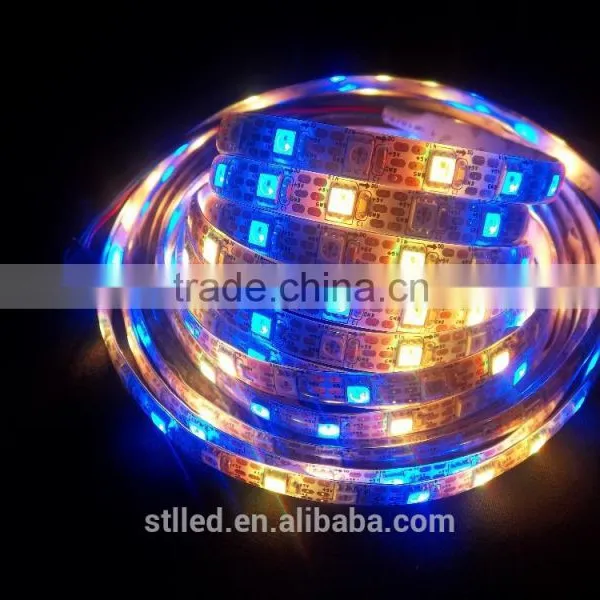

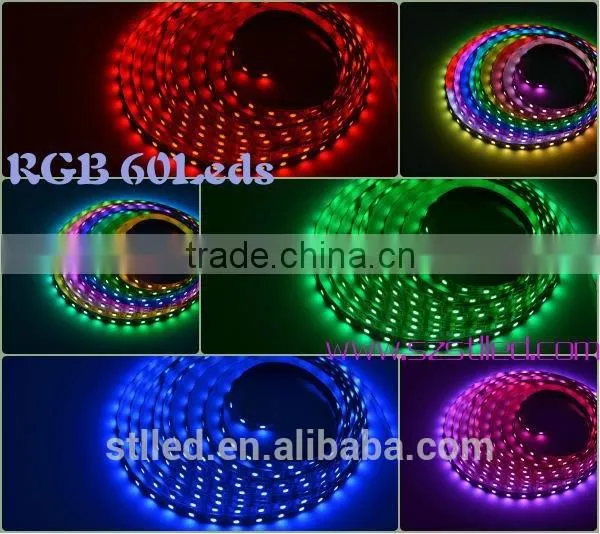

ws2812b led strip RGB-WS2812-300 Pictures:

ws2812b led strip SMD5050 60leds with RGB colors



ws2812b led strip RGB-WS2811-150 Packing:



 WS2812B led strip
1.5m/roll in an anti-static bag, 0.18KG per roll;
2.50 reel /carton, carton size is 450*330*310(mm), the weight is 10KG per carton.

ws2812b led strip SMD5050 60leds with RGB colors

ws2812b led strip SMD5050 60leds with RGB colors

New Type LED RGB-WS2812B-300  Controller and RGB Circuit Diagram



ws2812b led strip SMD5050 60leds with RGB colors

ws2812b led strip SMD5050 60leds with RGB colors

ws2812b led strip SMD5050 60leds with RGB colors
