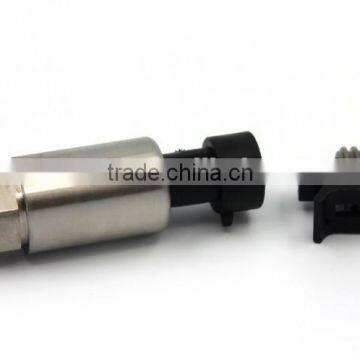

IPS600 series pressure sensor/transmitter applied in the refrigeration & compressor industry adopts the Ceramic piezoresistive technology and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment. Its pressure chamber is made of 316L stainless steel welted and with O-rings, free of leakage troubles. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter and the transmitter is featured with the strong interference resistance, wide temperature compensation scope and flexible & various output forms, etc. The series products provide several optional pressure connectors and electric output forms for customers.
Characters:
Pressure Transducer for Air Compressor
Range:-1~5Bar~100Bar Optional
Output:0.5~4.5V/4~20mA/0~5V optional
CE,ISO9001
Can be customized
Specifications:
Parameter: |
IPS600 |
|||
Pressure Range: |
-1~5 Bar...30Bat....600 Bar Optional |
|||
Pressure Type: |
Gage pressure ;Absolute pressure Optional |
|||
Overload: |
200% F.S. |
|||
Accuracy: |
≤ ±1%F.S;Optional |
|||
Stability: |
Standard: 0.15%F.S±0.05% |
|||
Working Temp: |
-40°C~125°C |
|||
Storage Temp: |
-40°C~140°C |
|||
Temperature Compensation: |
-20°C~75°C |
|||
Medium compatible: |
Compatible with 316L Stainless Steel |
|||
Electronic Wire: |
2 Wire |
3 Wire |
||
Output: |
4~20mA |
0~5V |
0~10 V |
0.5~4.5 V |
Power Supply: |
12~36 V DC |
12~36 V DC |
12~36Vdc |
5V DC |
Insulate resistance: |
>500M Ω |
|||
Electronic connection: |
Packard 3 Pin Connector, with cable 1.3 meters. directly by cable IP67 optional |
|||
|
Pressure connect port: |
1/4"NPT male, 1/4"NPT Female, G1/2" male, G1/4" 7/16"-20 UNF female optional. (By Customized) |
|||
Response time: |
≤10ms |
|||
EMC Standard: |
electromagnetic radiation:EN50081-1/-2; electromagnetic susceptibility:EN50082-2 |
|||
Water Proof: |
IP65 to IP67 optional |
|||

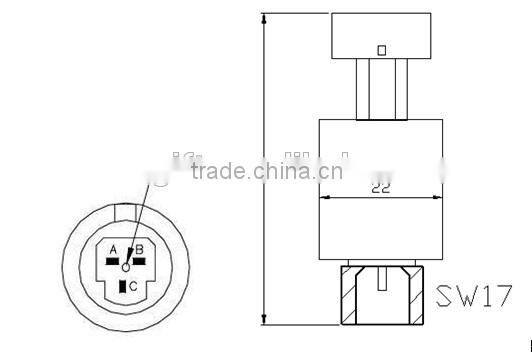

Dimension Drawings:
1) Please let us know the following information about the pressure transmitter
Requirements | ||
NO |
Technical Parameters |
|
1 |
Pressure range |
|
2 |
Output signal |
|
3 |
Cable length |
|
4 |
Quantity |
|
2) We will give you a competitive price and make invoice for you
3) After you payment, we will start to produce them for you.
4) We will ship goods by DHL,UPS ,Fedex.... If you have special require, please let me know
All products are warranted to change new one for fault for our product quality for one (1) year from the date of purchase from an authorized dealer of Basis products.
